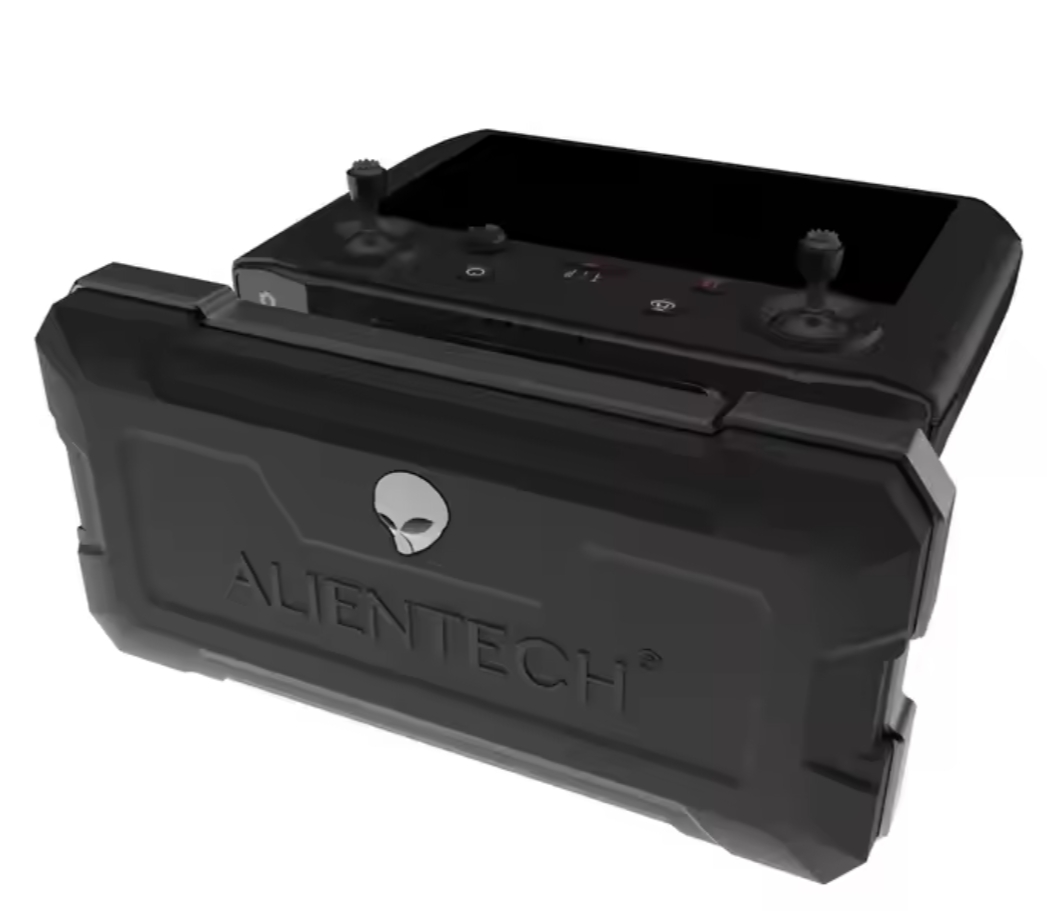

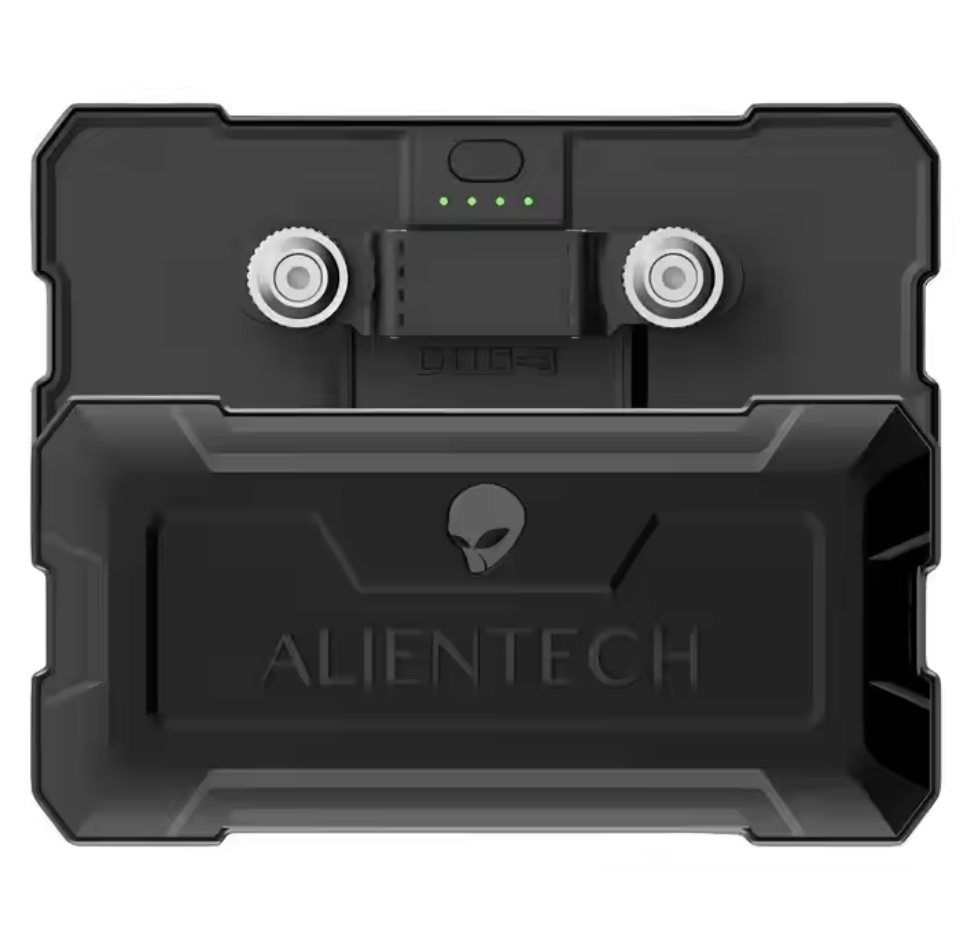

First up, we've cranked up the power on this product by optimizing the space design and doubling the power amplifier. That means your signal range gets a boost of over two times, and is equivalent to a 5-10 with the stock antenna times. giving you the power to reach new heights and explore uncharted territories.
But that's not all! We've also thrown in a brand-new chip that works like a charm to enhance data transmission speed. In fact, it's a whopping four times faster than its predecessor.
And let's not forget about the Mu-Mimo technology that's packed into this beast. With dual transmission and reception capabilities, you'll experience improved signal strength and better overall performance, even in weak signal areas. crucial role.
But wait, there's more! The GBE-PART-SA DUO 3 is not just limited to a specific frequency range. It's a versatile powerhouse that supports almost all 5G frequency bands, expanding from the previous 5.8G range to a wide 5.15Ghz–5.85Ghz range. That means compatibility with a wider range of wireless devices, so you can take your drone game to new heights.
We've also given the GBE-PART-SA DUO 3 a makeover in the durability department. With a sleek all-aluminum alloy frame, this product is built to withstand the toughest of adventures. Plus, the aluminum alloy structure optimizes heat dissipation, ensuring top-notch performance from the modules and chips.
Last but not least, we've upgraded the battery to a whopping 3000 mAh, giving you longer standby and working time. No more worrying about running out of juice mid-flight. The GBE-PART-SA DUO 3 has got your back.
So, if you're serious about taking your drone adventures to new heights, the GBE-PART-SA DUO 3 antenna signal booster range extender is your ultimate wingman. Get ready to soar high and capture breathtaking footage like never before. It's time to unleash the true potential of your drone.
|
Item
|
Sepification
|
|
Tri-Band
|
Works with 2.4G, 5.2G, and 5.8G (2400MHz~2483.5MHz, and 5100MHz~5850MHz)
|
|
Working Frequency Band
|
2400–2485 MHz, 5.150–5.850 MHz
|
|
Working Voltage
|
6-9V
|
|

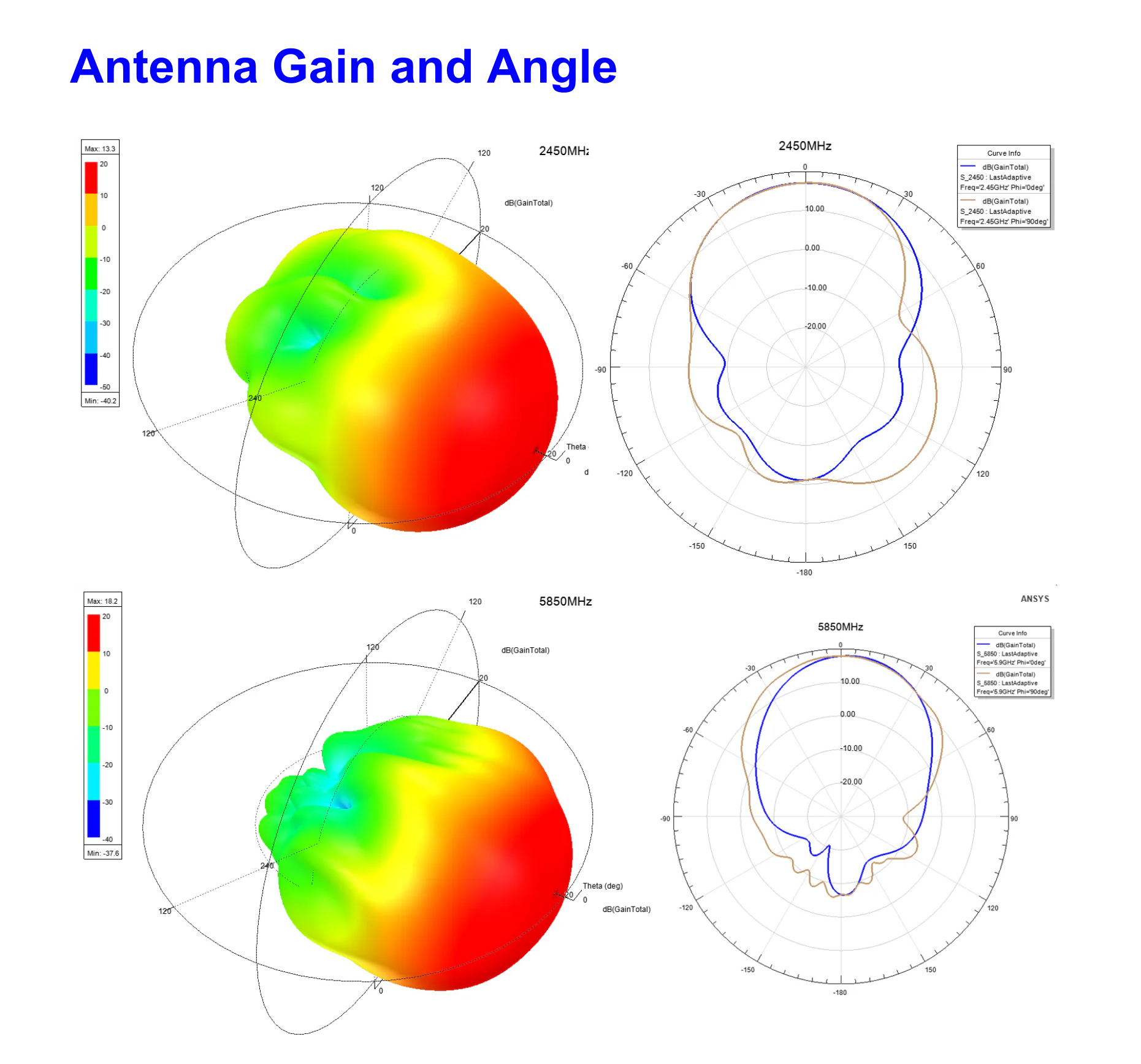

Antenna Gain
|
2.4G>13 dBi±1 / 5G>15 dBi±1
|
|
Antenna Horizontal Half-radiation Angle
|
65-84°
|
|
Antenna Vertical Half-radiation Angle
|
63–75°
|
|
2.4G Receive Gain
|
12dB±1
|
|
Receive Gain of 5.2G and 5.8G
|
15dB±1
|
|
Transmit Gain
|
15 dB±1
|
|
Input Power Range
|
10–25 dBm
|
|
EVM
|
3%@28 dBM 802.11 ac 6.93Gbps MIMO OFDM 64QAM BW 80 MHz
|
|
Electric Current
|
435 mA at POUT 28 dBm 9V
|
|
Noise Coefficient
|
≤ 2.5 dB
|
|
Transmission Delay
|
≤ 1 μs
|
|
Temperature
|
-20°C~80°C
|
|
Battery Voltage and Capacit
|
3.7V, 3000 mAh
|
