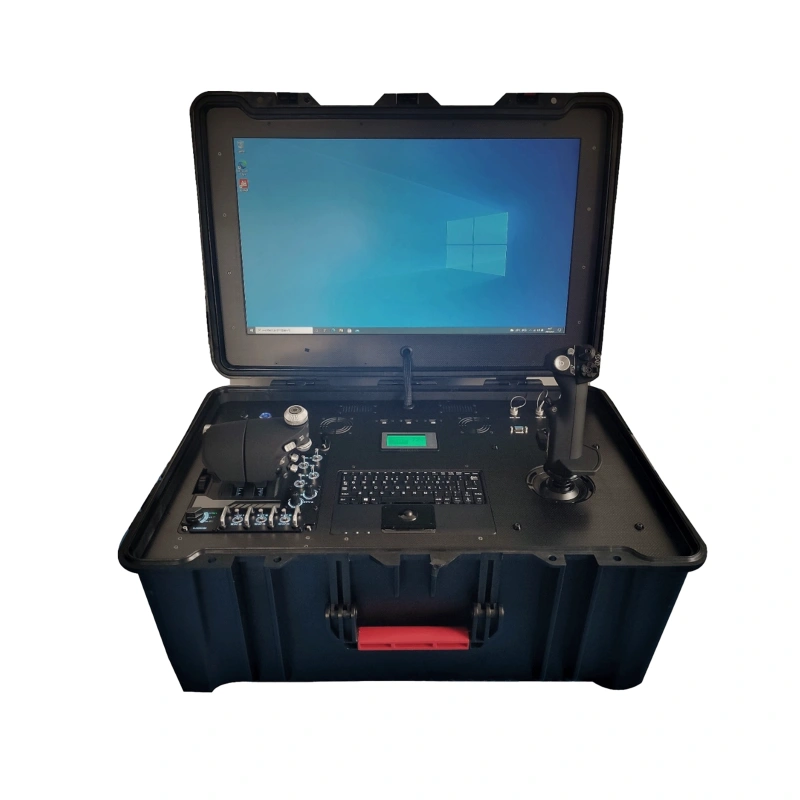

Drone Ground Control Station GCS-01-26
(0 Reviews)
0 Sold
| Ground Control Station | |
| Model | GCS-01-26 |
| Central Processing Unit | I5、I7 (sixth, seventh, eighth) |
| RAM | 8G、16G |
| ROM | SSD 128G、256G、500G |
| Graphic card | Intel HD Graphics 530//620//630 |
| Operating System | Windows 7、 Windows 10 |
| Display Screen | |
| Size | 26 inch |
| Resolution | 1920*1080P |
| Screen ratio | 16：9 |
| Luminance | 1000ccd（nit） |
| Interface support | HDMI |
| Operation Panel | |
| Box material | carbon fiber |
|
Button |
power switch, host switch, communication switch (reserve 12V power supply) |
| Power display | percentage, current, voltage, |
| Charging interface | DC 19.5V |
| External interface | USB、RJ45、HDMI、RS232 |
| I/O interface | mouse and keyboard integrated set |
| Throttle lever | dual independent throttle (see details in the attachment) |
| Joysticks | handheld joystick (see details in the attachment) |
| Communication protocol | USB HID |
| Overall parameters | |
| Box material | composite material |
| Waterproof rating | IP56 |
| Operating temperature | 0°C- 60°C |
| Battery voltage | 16.8V (fully charged), lithium battery |
| Endurance | 4-5H |
| Weight | 20KG |
| Dimension | 765MM*503MM*335MM |
