GBE-210 AI Tracking Locking GPS Positioning Optical Zoom 45X IR Laser Range Finder Two-Axis Three-Sensor EO/IR Pod Gimbal Drone Camera

SKU: GBE-POD-210

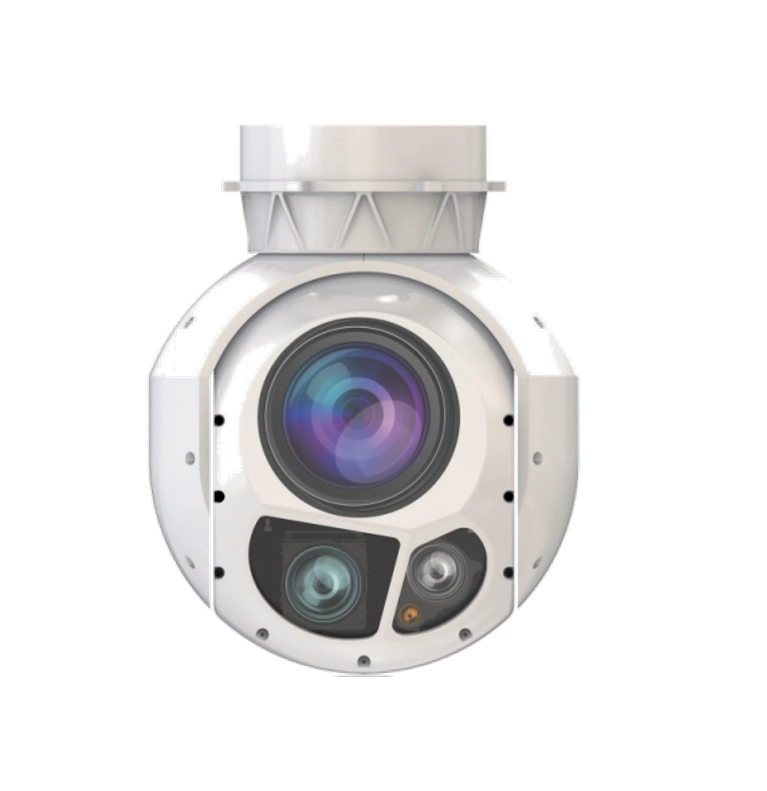

GBE-POD-210 is a two-axis two-frame gyro-stabilized three-sensor EO/IR Pod, it is equipped with a 45x continuous optical zoom TV camera, an uncooled long-wave IR component, laser rangefinder. It is mainly used in monitoring fields such as imaging, detection, tracking, and identification of ground objects, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, counter-terrorism and anti-riot.
0.0 (0 Reviews)
0 Sold
$0.00 $63,098.59
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • GBE-210 AI Tracking Locking GPS Positioning Optical Zoom 45X IR Laser Range Finder Two-Axis Three-Sensor EO/IR Pod Gimbal Drone Camera
  • GBE-210 AI Tracking Locking GPS Positioning Optical Zoom 45X IR Laser Range Finder Two-Axis Three-Sensor EO/IR Pod Gimbal Drone Camera
1/1
  • GBE-210 AI Tracking Locking GPS Positioning Optical Zoom 45X IR Laser Range Finder Two-Axis Three-Sensor EO/IR Pod Gimbal Drone Camera
  • Description


*AI object recognition: Human, vehicle, ship, and target recognition.
*AI assisted locking: Automatic target recognition and tracking.
*AI anti-occlusion tracking: Object recognition assisted stable tracking.
*Two-axis stability: Comprehensive isolation of carrier angular motion.
*Three-sensor photography and recording: Supports post analysis.
*Electronic image stabilization: Sub-pixel level stable experience.
*Anti link delay: Moving objects, precise locking.
*Multiple objects recognition and tracking: Supports keyboard locking of objects and voice locking of objects.
*Web page remote upgrade: Remote support, second level response.

TV
Single Object Tracking
Band
0.4μm~0.9μm
Object Type
Generic objectives
Resolution
1920×1080
Tracking Rate
≥32pixel/frame
Focal Length
f=5.9~265.5mm
Update Frame Rate
≥50FPS
Field of View
56.14°~1.37°
 Multiple Objects Tracking
Optical Zoom
45X
Object Type
Human, vehicle, ships, airplanes
Detection Distance
Human 14km, vehicle 20km
Recall Rate
≥90%
Recognition Distance
Human 3.5km, vehicle 15km
Accuracy Rate
≥80%
IR
Minimum Target Size
32×32 @1080P
Band
8μm~14μm
Tracking Target Quantity
≥20
Resolution
640×512
Tracking Transition Rate
≤15%
Pixel
12µm
Update Frame Rate
≥20FPS
Focal Length
20~120mm zoom
Video and Storage
Field of View
21.74°~3.67°
Photo Format
JPEG
Temperature Measurement
Support
Video Format
MP4
Detection Distance
Human 4.5 km, vehicle 20km
Encoding Format
H.264,H.265
Recognition Distance
Human 1.1km,  vehicle10km
Video Protocal
TS,RTSP,RTMP, UDP etc
 Laser Rangefinder
Storage
128GB
Band
1535nm
Interface Size
Laser Ranging Range
80m~9000m
Dimension
≤Φ255mm×325mm
Range Accuracy
±2m
Weight
≤10kg
Range Frequency
word,1Hz,5Hz
Power Supply
18 ~28VDC (featuring spike and surge protection capabilities)
Servo
Consumption
30w(average)150w(peak value)
Heading Range
N×360°
Communication Interface
Serial port,1Gbps
Pitch Range
-120°~40°
Video Interface
1Gbps,SDI
Consistency in Accuracy
≤50urad(2°/1Hz, 1°/2Hzz frequency fluctuation)
Environment Parameter
Angular Measurement Accuracy
≤1mrad
Operation Temperature
-40°C~ 60°C
Angular Velocity
≥60°/s
Storage Temperature
-45℃~70℃
Angular Acceleration
≥150°/s²
