GBE-232S 30X Optical Zoom TV Camera Long-Wave Uncooled IR Imaging AI Tracking Object Recognition Two-Axis Three-Sensor EO/IR Pod Gimbal

SKU: GBE-POD-232S

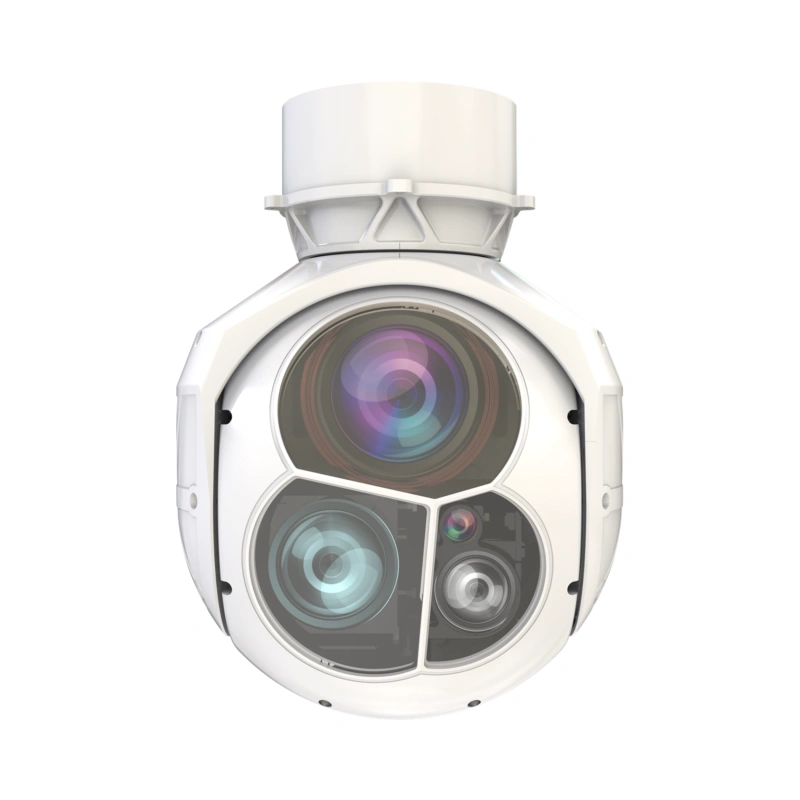

GBE-POD-232S is a two-axis, two-frame gyro-stabilized three-sensor EO/IR Pod, featuring a compact, lightweight, and integrated industrial design. It is equipped with a 30x continuous optical zoom TV camera and a long-wave uncooled IR imaging assembly. The system includes built-in anti-latency modules, AI object recognition, and multiple objects tracking modules. It is primarily used for imaging, detection, tracking,and recognition of ground objects in surveillance applications. It meets the needs for various operations such as line inspection, accident investigation, emergency response, law enforcement evidence collection, and counter-terrorism and anti-riot.

0.0 (0 Reviews)
0 Sold
$0.00 $19,718.31
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • GBE-232S 30X Optical Zoom TV Camera Long-Wave Uncooled IR Imaging AI Tracking Object Recognition Two-Axis Three-Sensor EO/IR Pod Gimbal
  • GBE-232S 30X Optical Zoom TV Camera Long-Wave Uncooled IR Imaging AI Tracking Object Recognition Two-Axis Three-Sensor EO/IR Pod Gimbal
1/1
  • GBE-232S 30X Optical Zoom TV Camera Long-Wave Uncooled IR Imaging AI Tracking Object Recognition Two-Axis Three-Sensor EO/IR Pod Gimbal
  • Description
*AI object recognition: Human, vehicle, ship, and target recognition.
*AI assisted locking: Automatic target recognition and tracking.
*AI anti-occlusion tracking: Object recognition assisted stable tracking.
*Two-axis stability: Comprehensive isolation of carrier angular motion.
*Three-sensor photography and recording: Supports post analysis.
*Electronic image stabilization: Sub-pixel level stable experience.
*Anti link delay: Moving objects, precise locking.
*Multiple objects recognition and tracking: Supports keyboard locking of objects and voice locking of objects.
*Web page remote upgrade: Remote support, second level response.

TV
Single Object Tracking
Band
0.4μm~0.9μm
Object Type
Generic objectives
Resolution
1920×1080
Tracking Rate
≥32pixel/frame
Focal Length
f=4.3~129mm
Update Frame Rate
≥50FPS
Field of View
63.7°~2.3°
 Multiple Objects Tracking
Optical Zoom
30X
Object Type
Human, vehicle, ships, airplanes
Detection Distance
Human 6km, vehicle 15km
Recall Rate
≥90%
Recognition Distance
Human 2km, vehicle 8km
Accuracy Rate
≥80%
IR
Minimum Target Size
32×32 @1080P
Band
8μm~14μm
Tracking Target Quantity
≥20
Resolution
640×512
Tracking Transition Rate
≤15%
Pixel
12µm
Update Frame Rate
≥20FPS
Focal Length
55mm/F1.0
Video and Storage
Field of View
8°~6.4°
Photo Format
JPEG
Temperature Measurement
Support
Video Format
MP4
Detection Distance
Human 2.6km, vehicle 11.4km
Encoding Format
H.264,H.265
Recognition Distance
Human 0.6km, vehicle 2.8km
Video Protocal
TS,RTSP,RTMP, UDP etc
 Laser Rangefinder
Storage
128GB
Band
1535nm
Interface Size
Laser Ranging Range
50m~5000m
Dimension
≤Φ155mm×205mm
Range Accuracy
±1m
Weight
≤2.2kg
Range Frequency
1~10Hz
Power Supply
18 ~28VDC (featuring spike and surge protection capabilities)
Servo
Consumption
20w(average)60w(peak value)
Heading Range
N×360°
Communication Interface
Serial port,1Gbps
Pitch Range
-120°~40°
Video Interface
1Gbps,SDI
Consistency in Accuracy
≤100urad (2°/1Hz, 1°/2HZZfrequency fluctuation
Environment Parameter
Angular Measurement Accuracy
≤1mrad
Operation Temperature
-40°C~ 60°C
Angular Velocity
≥60°/s
Storage Temperature
-45℃~70℃
Angular Acceleration
≥150°/s²
Impact
20g,11ms
