GBE-235T AI Tracking Locking GPS Optical Zoom TV Camera Mid-wave Cooled IR Component LRF Two-Axis Three Sensor Triple Pod Drone Camera

SKU: GBE-POD-235T

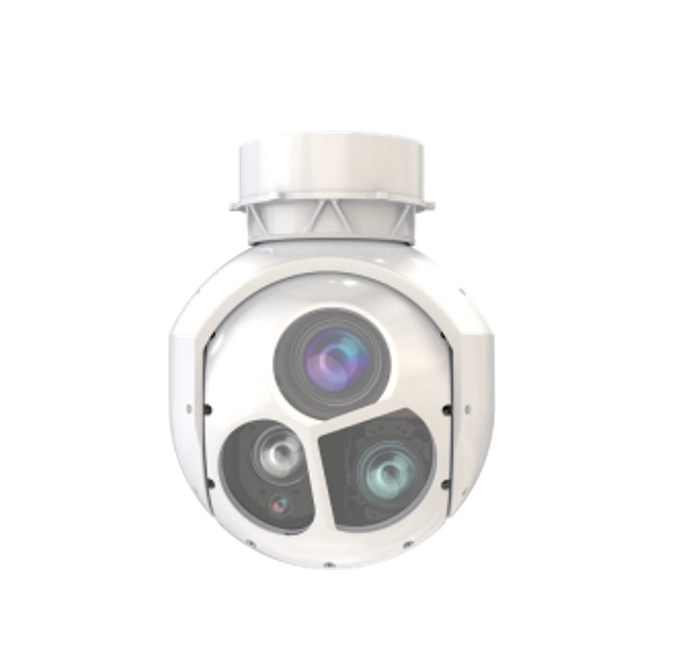

GBE-POD-235T is a two-axis, two-frame EO/IR Pod, equipped with a built-in 30x continuous optical zoom TV camera, a mid-wave cooled IR imaging assembly, and a laser rangefinder. It also includes an anti-latency module, AI object recognition, and multiple objects tracking modules. The GBE-POD-235T is primarily used for surveillance applications such as imaging, detection, positioning, tracking, and identification of ground objects. It is designed to meet the needs of various operations, including line inspection, accident investigation, emergency response, law enforcement evidence collection, and counter-terrorism and anti-riot activities.
0.0 (0 Reviews)
0 Sold
$0.00 $98,591.55
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • GBE-235T AI Tracking Locking GPS Optical Zoom TV Camera Mid-wave Cooled IR Component LRF Two-Axis Three Sensor Triple Pod Drone Camera
  • GBE-235T AI Tracking Locking GPS Optical Zoom TV Camera Mid-wave Cooled IR Component LRF Two-Axis Three Sensor Triple Pod Drone Camera
1/1
  • GBE-235T AI Tracking Locking GPS Optical Zoom TV Camera Mid-wave Cooled IR Component LRF Two-Axis Three Sensor Triple Pod Drone Camera
  • Description

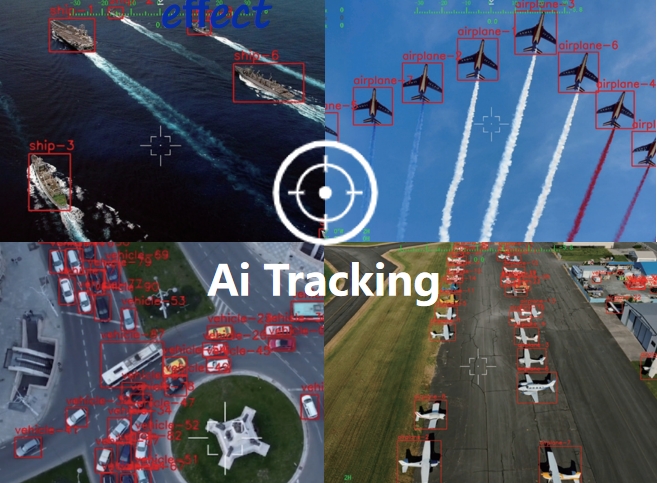

*AI object recognition: Human, vehicle, ship, and target recognition
*AI assisted locking: Automatic target recognition and tracking.
*AI anti-occlusion tracking: Object Recognition assisted stable tracking.
*Two-axis stability: Comprehensive isolation of carrier angular motion.
*Three-sensor photography and recording: Supports post analysis.
*Electronic image stabilization: Sub-pixel level stable experience.
*Anti link delay: Moving objects, precise locking.
*Multiple objects recognition and tracking: Supports keyboard locking of objects and voice locking of objects.
*Web page remote upgrade: Remote support, second level response.



TV
Single Object Tracking
Band
0.4μm~0.9μm
Object Type
Generic objectives
Resolution
1920×1080
Tracking Rate
≥32pixel/frame
Focal Length
f=4.3~129mm
Update Frame Rate
≥50FPS
Field of View
63.7°~2.3°
 Multiple Objects Tracking
Optical Zoom
30X
Object Type
Human, vehicle, ships, airplanes
Detection Distance
Human 6km, vehicle 15km
Recall Rate
≥90%
Recognition Distance
Human 2km, vehicle 8km
Accuracy Rate
≥80%
IR
Minimum Target Size
32×32 @1080P
Band
3μm~5μm
Tracking Target Quantity
≥20
Resolution
640×512
Tracking Transition Rate
≤15%
Pixel
15µm
Update Frame Rate
≥20FPS
Focal Length
40~220mm zoom/F4.0
Video and Storage
Field of View
13.69°~2.5°
Photo Format
JPEG
Cooling Time
≤6min
Video Format
MP4
Detection Distance
Human 0.9km, vehicle 4.0km
Encoding Format
H.264,H.265
Recognition Distance
Human 0.2km, vehicle 1.0km
Video Protocal
TS,RTSP,RTMP, UDP etc
 Laser Rangefinder
Storage
128GB
Band
1535nm
Interface Size
Laser Ranging Range
50m~8000m
Dimension
≤Φ200mm×260mm
Range Accuracy
±1m
Weight
≤5kg
Range Frequency
1~10Hz
Power Supply
18 ~28VDC (featuring spike and surge protection capabilities)
Servo
Consumption
50w(average)100w(peak value)
Heading Range
N×360°
Communication Interface
Serial port,1Gbps
Pitch Range
-120°~40°
Video Interface
1Gbps,SDI
Roll Range
-120°~40°
Environment Parameter
Consistency in Accuracy
≤100urad(2°/1Hz, 1°/2Hzz frequency fluctuation)
Operation Temperature
-40°C~ 60°C
Angular Measurement Accuracy
≤1mrad
Storage Temperature
-45℃~70℃
Angular Velocity
≥60°/s
Impact
20g,11ms
Angular Acceleration
≥150°/s²
