SKU: GBE-GIM-321

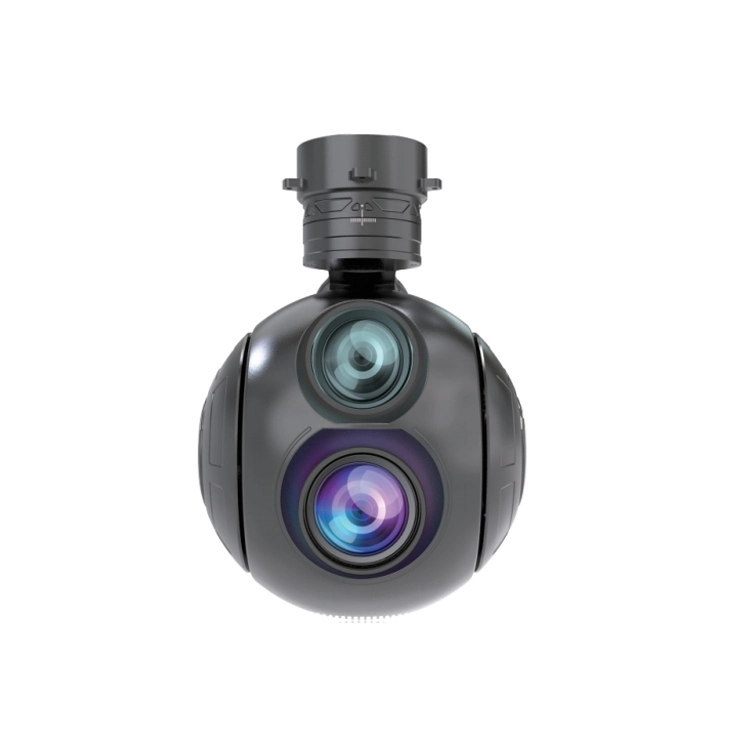

GBE-GIM-321 is a three-axis gyro-stabilized two-sensor gimbal, designed with miniaturization, lightweight, and integrated industrial features. It is equipped with a 40x continuous optical zoom TV camera, an uncooled LWIR component, and built-in anti delay module, AI object recognition, and multi-object tracking module. It is mainly used in monitoring fields such as imaging, detection, tracking, and identification of ground objects, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, counter-terrorism and anti-riot.
0.0 (0 Reviews)
0 Sold
$0.00 $9,070.42
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • GBE-321 AI Tracking with GPS Positioning Optical Zoom TV Camera Uncooled LWIR Component Pod Three-Axis Two Sensor Gimbal Drone Camera
  • GBE-321 AI Tracking with GPS Positioning Optical Zoom TV Camera Uncooled LWIR Component Pod Three-Axis Two Sensor Gimbal Drone Camera
1/1
  • GBE-321 AI Tracking with GPS Positioning Optical Zoom TV Camera Uncooled LWIR Component Pod Three-Axis Two Sensor Gimbal Drone Camera
  • Description
*AI object recognition: Human, vehicle, ship, and target recognition.
*AI assisted locking: Automatic target recognition and tracking.
*AI anti-occlusion tracking: Object recognition assisted stable tracking.
*Three-axis stability: Comprehensive isolation of carrier angular motion.
*Two-sensor photography and recording: Supports post analysis.
*Electronic image stabilization: Sub-pixel level stable experience.
*Anti link delay: Moving objects, precise locking.
*Multiple objects recognition and tracking: Supports keyboard locking of objects and voice locking of objects.
*Web page remote upgrade: Remote support, second level response.

TV
Single Object Tracking
Band
0.4μm~0.9μm
Object Type
Generic objectives
Resolution
1920×1080
Tracking Rate
≥32pixel/frame
Focal Length
f=4.25~170mm
Update Frame Rate
≥50FPS
Field of View
62.13°~1.73°
 Multiple Objects Tracking
Optical Zoom
40X
Object Type
Human, vehicle, ships, airplanes
Detection Distance
Human 11.1km, vehicle 20km
Recall Rate
≥90%
Recognition Distance
Human 2.7km, vehicle 11km
Accuracy Rate
≥80%
IR
Minimum Target Size
32×32 @1080P
Band
8μm~14μm
Tracking Target Quantity
≥20
Resolution
640×512
Tracking Transition Rate
≤15%
Pixel
12µm
Update Frame Rate
≥20FPS
Focal Length
35mm/F1.0
Video and Storage
Field of View
12.4°~9.9°
Photo Format
JPEG
Temperature Measurement
Support
Video Format
MP4
Detection Distance
Human 1.7km, vehicle 7.4km
Encoding Format
H.264,H.265
Recognition Distance
Human 0.4km, vehicle 1.8km
Video Protocal
TS,RTSP,RTMP, UDP etc
Servo
Storage
128GB
Heading Range
N×360°
Interface Size
Pitch Range
-120°~40°
Dimension
≤Φ135mm×195mm
Roll Range
-45°~45°
Weight
≤1.4kg
Power Supply
11~28VDC
Consumption
20w(average)50w(peak value)
Communication Interface
Serial port,100Mbps network,SBUS
Video Interface
100Mbps network
Environment Parameter
Operation Temperature
-20°C~ 60°C
Storage Temperature
-40℃~70℃
