Home > Pod & Gimbal & Camera > GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera
  • GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera
1/1
  • GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera

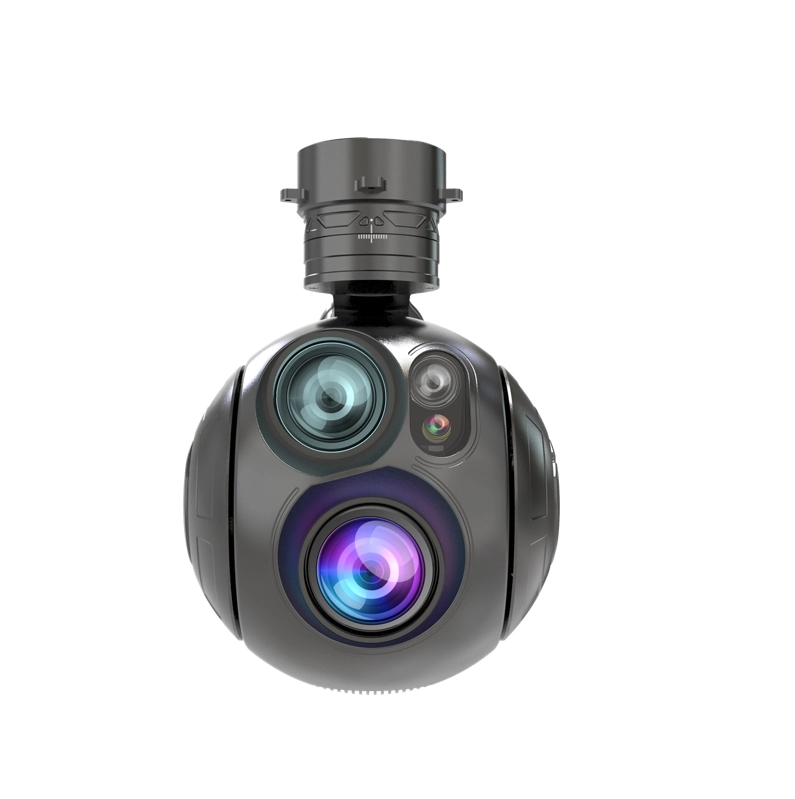

GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera

SKU: GBE-GIM-331
GBE-GIM-331 is a three-axis gyro-stabilized three-sensor gimbal, designed with miniaturization, lightweight, and integrated industrial features. It is equipped with a 40x continuous optical zoom TV camera, an uncooled LWIR component, laser rangefinder and built-in anti delay module, AI object recognition, and multi-object tracking module. It is mainly used in monitoring fields such as imaging, detection, tracking, and identification of ground objects, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, counter-terrorism and anti-riot.
0.0 (0 Reviews)
0 Sold
$0.00 $11,042.25
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
Add to Favorites (0)
  • GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera
  • GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera
1/1
  • GBE-331 AI Tracking Locking with GPS Optical Zoom TV Camera Uncooled LWIR Component LRF Pod Three-Axis Three Sensor Gimbal Drone Camera
  • Description
*AI object recognition: Human, vehicle, ship, and target recognition.
*AI assisted locking: Automatic target recognition and tracking.
*AI anti-occlusion tracking: Object recognition assisted stable tracking.
*Three-axis stability: Comprehensive isolation of carrier angular motion.
*Three-sensor photography and recording: Supports post analysis.
*Electronic image stabilization: Sub-pixel level stable experience.
*Anti link delay: Moving objects, precise locking.
*Multiple objects recognition and tracking: Supports keyboard locking of objects and voice locking of objects.
*Web page remote upgrade: Remote support, second level response.
TV
Single Object Tracking
Band
0.4μm～0.9μm
Object Type
Generic objectives
Resolution
1920×1080
Tracking Rate
≥32pixel/frame
Focal Length
f=4.25mm～170mm
Update Frame Rate
≥50FPS
Field of View
62.13°～1.73°
 Multiple Objects Tracking
Optical Zoom
40X
Object Type
Human, vehicle, ships, airplanes
Detection Distance
Human11.1km, vehicle 20km
Recall Rate
≥90%
Recognition Distance
Human 2.7km, vehicle 11km
Accuracy Rate
≥80%
IR
Minimum Target Size
32×32 @1080P
Band
8μm～14μm
Tracking Target Quantity
≥20
Resolution
640×512
Tracking Transition Rate
≤15%
Pixel
12µm
Update Frame Rate
≥20FPS
Focal Length
35mm/F1.0
Video and Storage
Field of View
12.4°～9.9°
Photo Format
JPEG
Temperature Measurement
Support
Video Format
MP4
Detection Distance
Human 1.7km, vehicle 7.4km
Encoding Format
H.264,H.265
Recognition Distance
Human 0.4km, vehicle 1.8km
Video Protocal
TS,RTSP,RTMP, UDP etc
 Laser Rangefinder
Storage
128GB
Band
1535nm
Interface Size
Laser Ranging Range
20m~3000m
Dimension
≤Φ135mm×185mm
Range Accuracy
±1m
Weight
≤1.2kg
Range Frequency
1~10Hz
Power Supply
11～28VDC
Servo
Consumption
20w（average）50w（peak value）
Heading Range
N×360°
Communication Interface
Serial port,100Mbps network,SBUS
Pitch Range
-120°~40°
Video Interface
100Mbps network
Roll Range
-45°~45°
Environment Parameter
Operation Temperature
-20°C~ 60°C
Storage Temperature
-40℃～70℃
