Mode
|

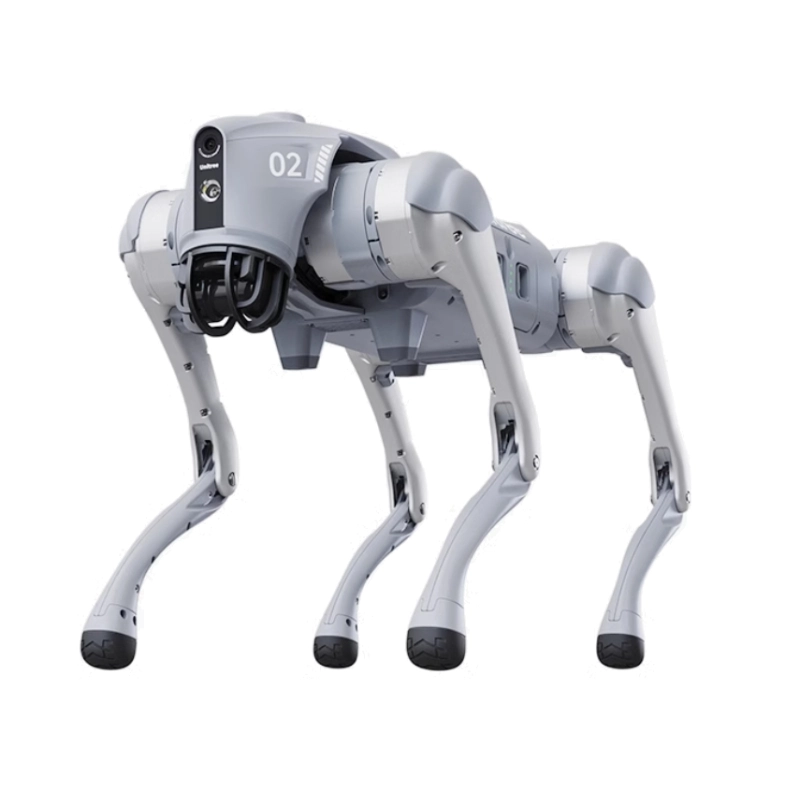

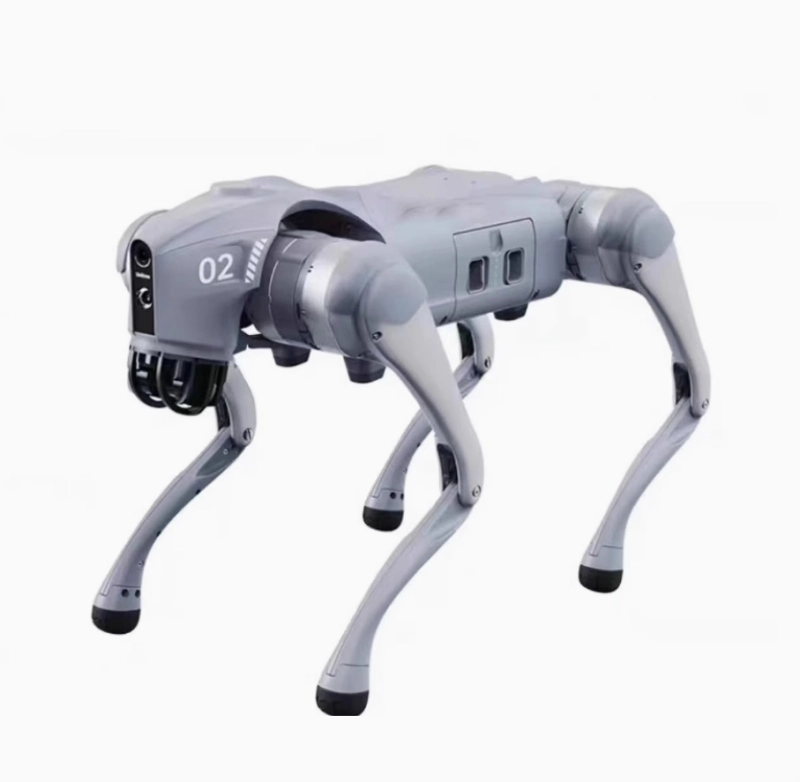

GBE-BOT-GO2 AIR
|
|
|
Mechanical
Specifications
|
Dimension of standing
|
70cmx31cmx40cm
|
|
Dimension of crouching
|
76cmx31cmx20cm
|
|
|
Weight (with battery)
|
About 15kg
|
|
|
Material
|
Aluminium alloy +
High strength engineering plastic
|
|
|
Electric
Parameter
|
Voltage
|
28V~33.6V
|
|
Working maximum power
|
About 3000W
|
|
|
Performance
Parameters
|
Payload
|
≈7kg(MAX~10kg)
|
|
Speed
|
0~2.5m/s
|
|
|
Max Climb Drop Height
|
About 15cm
|
|
|
Max Climb Angle
|
30°
|
|
|
Basic Computing Power
|
/
|
|
|
Knee Joint
Parameters
|
Max Joint Torque[1]
|
/
|
|
Aluminum knee joint motor
|
12 set
|
|
|
Range of Motion
|
Body：-48~48°
Thigh：-200°~90°
Shank：-156°~-48°
|
|
|
Intra-joint circuit (knee)
|
√
|
|
|
Joint Heat Pipe Cooler
|
√
|
|
|
Force Sensor
Parameters
|
Super-wide-angle 3D LIDAR
|
√
|
|
Wireless Vector Positioning
Tracking Module
|
/
|
|
|
HD Wide-angle Camera
|
√
|
|
|
Foot-end force sensor
|
/
|
|
| Feature List |
Basic Action
|
√
|
|
Auto-scaling strap
|
/
|
|
|
Upgraded Intelligent OTA
|
√
|
|
|
RTT 2.0 Pictures Transaction
|
√
|
|
|
Graphical programme
|
√
|
|
|
Front lamp (3W)
|
√
|
|
|
WiFI6 with Dual-band
|
√
|
|
|
Bluetooth 5.2/4.2/2.1
|
√
|
|
|
4G module
|
/
|
|
|
Voice Function[2]
|
/
|
|
|
ISS 2.0 Intelligent
side-follow system
|
/
|
|
|
Intelligent detection
and avoidance
|
√
|
|
|
Charging Pile Compatibility
|
/
|
|
|
Secondary development[3]
|
/
|
|
| Accessories |
Manual controller
|
optional
|
|
High computing power module
|
/
|
|
|
Smart battery
|
standard (8000mAh)x1
|
|
|
Battery life
|
About 1-2h
|
|
|
Charger
|
standard (33.6V 3.5A)
|
|
|
Warranty period[4]
|
6 months
|
|
|
[1] The maximum torque in the table refers to the maximum torque of the largest joint motor; the actual maximum torque varies for the 12 joint motors.
[2] Voice functions include offline voice interaction, commands, intercom and music play.
[3] For more information, please read the secondary development manual.
[4] For more detailed warranty terms, please read the product warranty brochure.
|
||
