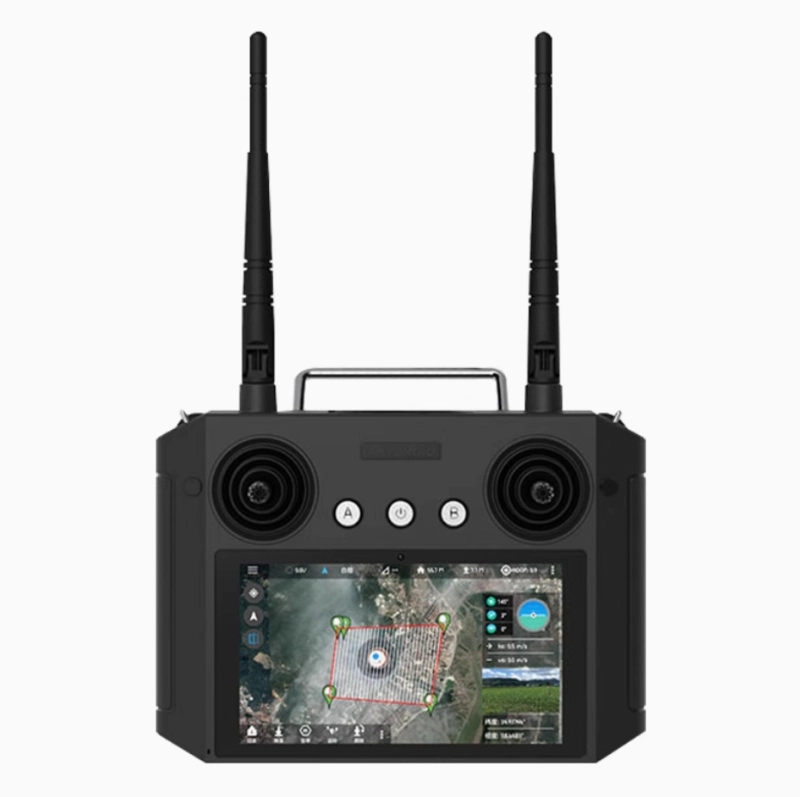

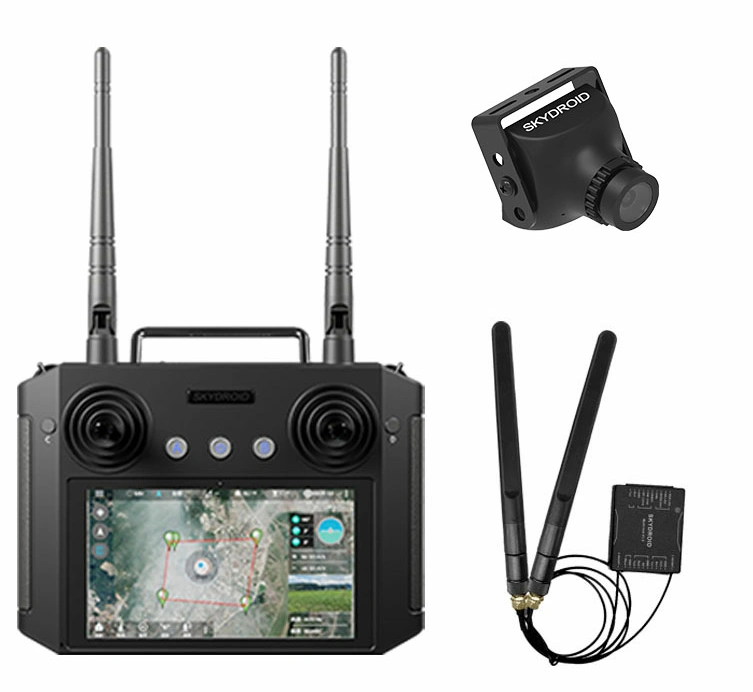

Remote Controller Parameter
|
|||
|
Model
|
GBE-RC-H12
|
Number of channels
|
12
|
|
Operating voltage
|
4.2V
|
RF power
|
20DB@CE/23DB@FCC
|
|
Frequency band
|
2.400-2.483GHz
|
Frequency hopping
|
New FHSS frequency hopping
|
|
Upgrade
|
APP online upgrade
|
Weight
|
530g
|
|
Size
|
190*152*94mm
|
Battery
|
10000mAh
|
|
Battery life
|
6-20 hours
|
Charging port
|
TYPE-C
|
|
Application
|
Helicopters, fixed-wing aircraft, multi-rotor aircraft, vehicles and ships
|
||
|
Receiver Parameter
|
|||
|
Model
|
Receiver 12
|
Channel
|
12
|
|
Working voltage
|
4.5-5.5V
|
Working current
|
140mA@5V
|
|
Size
|
51*41*13mm
|
Weight
|
14g
|
|

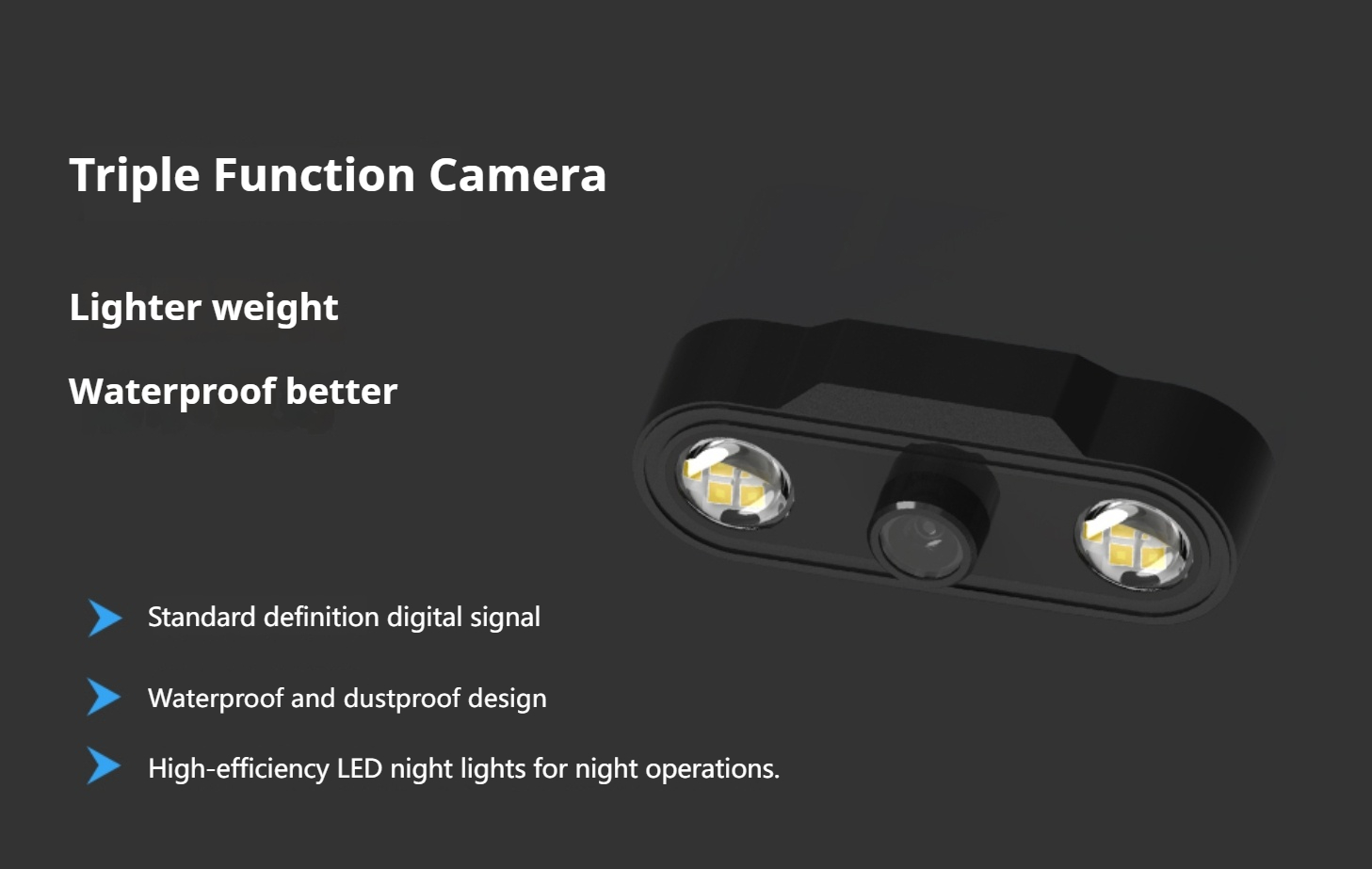

Triple Function Camera
|
|||
|
Model
|
Triple Function Camera
|
Working current
|
140mA
|
|
Working voltage
|
12-72V
|
Resolution
|
640*360
|
|
Weight
|
55g
|
Size
|
102.1*42.6*36.5mm
|
|
LED light power
|
6W
|
Camera angle
|
120°
|
