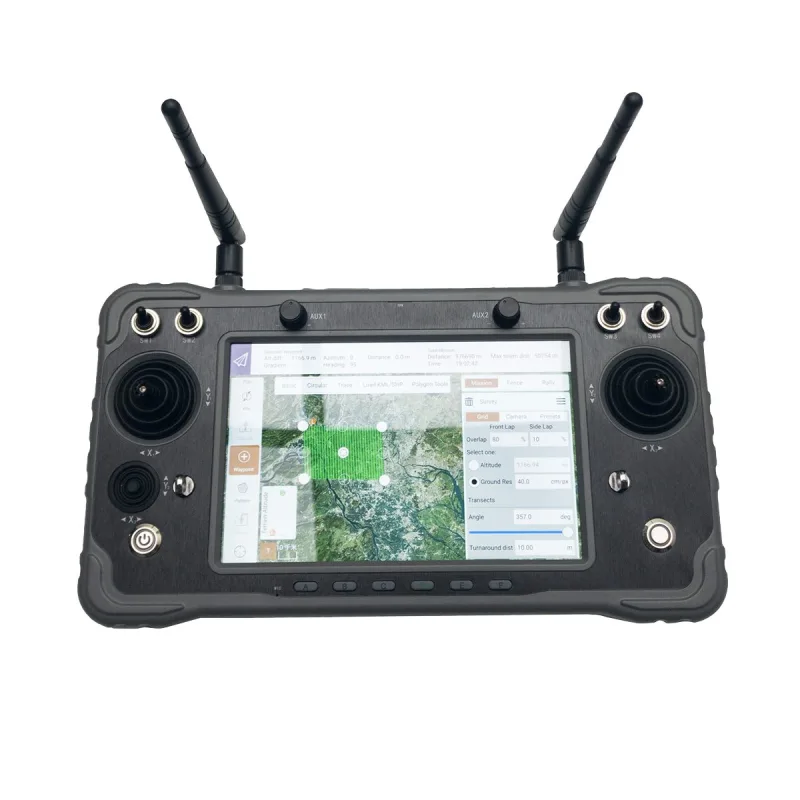

Skydroid H16 drone remote controller is an all-in-one drone remote control solution for long-range HD video transmission, which can realize video, data transmission and radio control. Featuring low latency, good anti-interference performance and long transmission range. For surprises, never stops! The H16 series uses the newest surging processor, equipped with an Android embedded system and advanced SDR technology, also with a super protocol stack to make the image clearer, lower latency, longer distance transmission, and stronger anti-interference. Applied for drones, aerial photography, FPV security, fire protection, power, mapping, border control, Robots, industrial controlled equipment, etc.
H16 series supports rich interfaces such as HDMI, RJ45, sensor interface, dual serial port pass-through transmission, SBUS, and IP67 design, based on waterproof, dust free and drop-resistant materials and structure to ensure its great experience and durability.
Follow us World Drone Market on YouTube to view more videos about Skydroid H16.
Skydroid H16 Features
- 7-inch HD highlight display, the sun is still clearly the real-time information display, operators can use it in full sunlight,1080p high-definition digital video transmission.

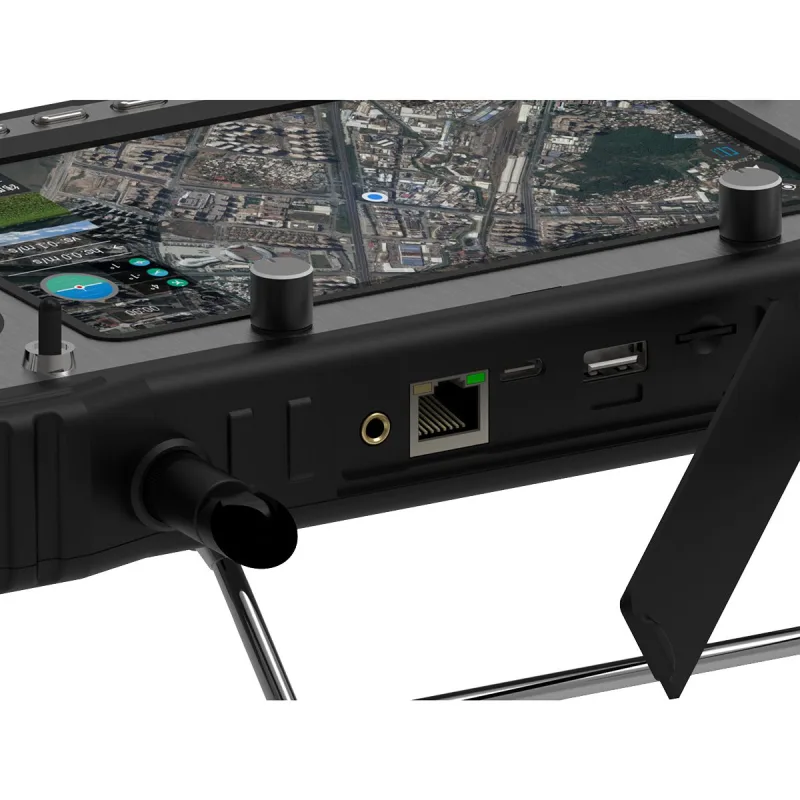

- Supports rich interfaces such as HDMI, network port, sensor interface, dual serial port transparent transmission, sbus, etc. And supports more cameras, pan-tilts, pods and other video equipment. Development kit SDK, support video suspension, support the mainstream flight control ground station, support QGC RTSP video streaming and wireless sharing.
- The use of IP67 grade waterproof, dust-proof and drop-proof materials and structure ensure not only good hand feeling, but also durability.
- High-energy density lithium-ion battery, support for 18w fast charge, full power can work 8–15 hours, always thinking of wilderness survival equipment reliability give you no care.
- H16 HD Video Transmission System Remote Controller can set Chinese, English, Korean and other languages.
- Skydroid H16 RC Data radio Video link Three in one Hand held Ground station System is compatible with most drones, which can be used for mapping, surveillance and power line inspection, police patrol, search and rescue etc.

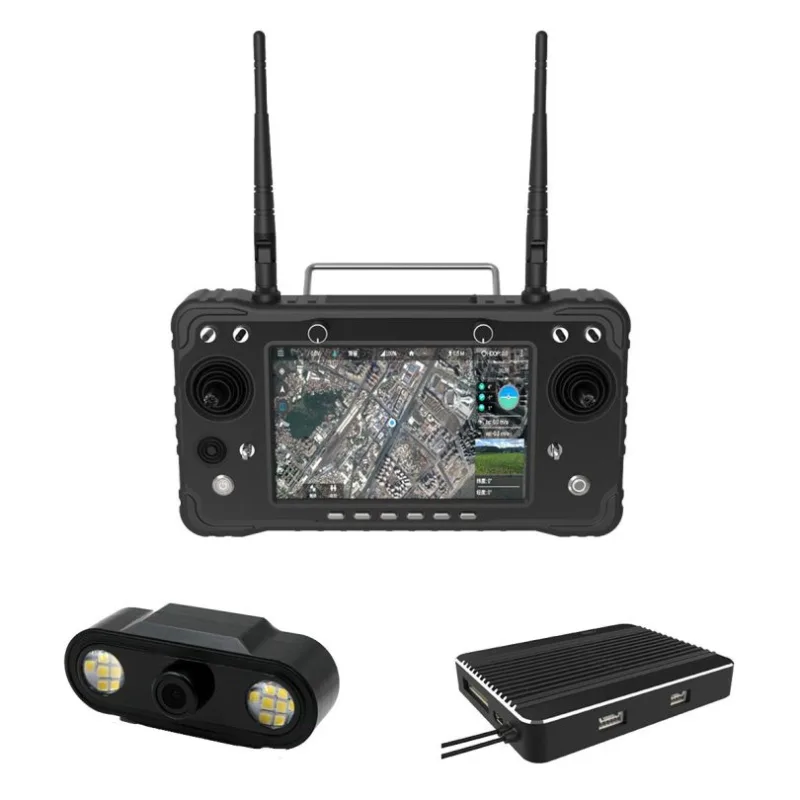

H16 series includes two versions

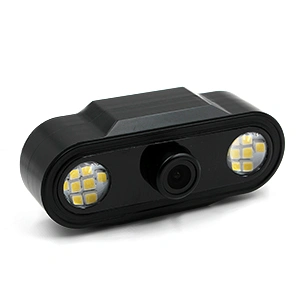

Skydroid H16 Remote Control: With MIPI camera, with HDMI input, 10KM transmission HD version.
Skydroid H16 Pro Remote Control: With MIPI camera, with HDMI input, 20KM transmission HD version.
Skydroid H16 Specifications
Brand Name: Skydroid
Item Name: H16 Transmitter Set
Number of channels: 16 channels
Frequency: 2.400-2.483GHz
Working voltage: 4.2V
Working Current: 100mA
RF Power: 20DB@CE/23DB@FCC
Modulation: New FHSS
Weight: 1034g
Firmware: APP online
Dimension: 272*183*94 mm
Duration: 8–15 hours
Battery Capacitor: 20000mA
Charge Port: Type-C
Application: Helicopter, Fixed wing, Copter, Car, boat, Robots
