ltems
|
Specifications
|
|
Combination method
|
8S1P
|
|
Nominal capacity
|
22000mAh @ 0.2C Discharge
|
|
Minimum capacity
|
20900mAh @ 0.2C Discharge
|
|
Nominal voltage
|
29.6V
|
|
Standard charging current
|
0.5C CC(constant current) charged to 33.6V, then CV(constant voltage 33.6V) charge till charge current decline to ≤ 0.02C
|
|
Rapid charge
|
Constant curren to1.0C，constant voltage 33.6V，cut-off current 0.02C
|
|
Charging time
|
Standard charging: 3.0hours(Ref.)
Rapid charge: 1.5hours(Ref.)
|
|
Constant discharge current
|
Constant current 0.5C end voltage 24.0V
|
|
Peak discharge current
|
(Discharging for 1 seconds at 30C，cell voltage is greater than 24.0V)
|
|
High rate discharge
|
≥7.2min
Standard Charge/rest 5.0min discharge at 7.5C to 18.0V |
|
Operating temperature
|
Charging: 0℃-40℃
Discharging: -20℃-60℃ |
|
Storage temperature
|
-10℃~ +45℃（with charge 40-50%）
|
|
Combination standard
|
Capacity difference≤200mAh
Resistance difference ≤0.2mΩ Voltage difference ≤20mV |
|
PACK voltage (Shipping status)
|
30~31.2V（cell 3.75~3.90V）
|
|
Internal Impedance
|
≤15.0mΩ
|
|

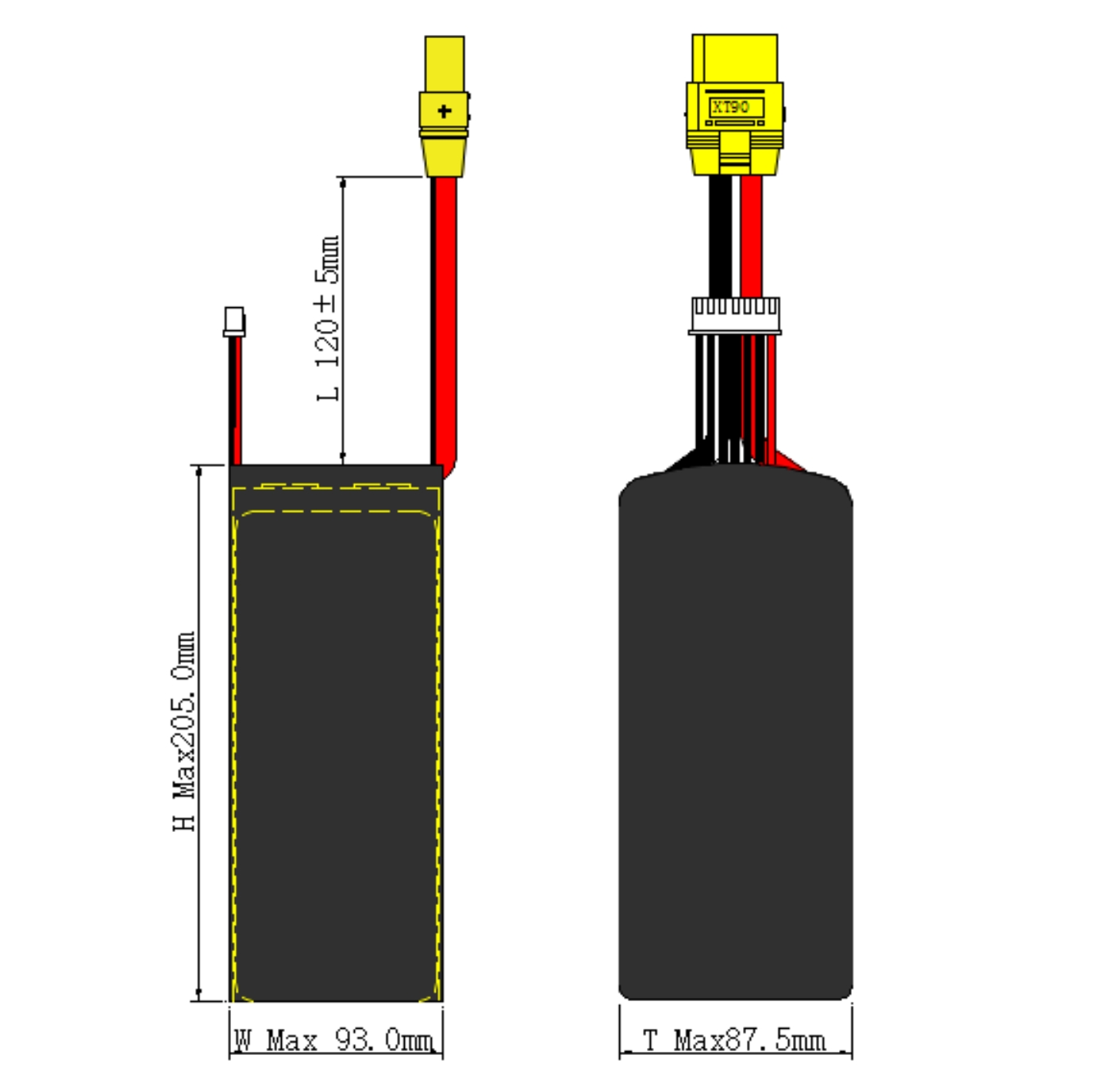

Max dimensions
|
87.5*93*205mmmm
|
|
Pack weight
|
3440±50g
|
