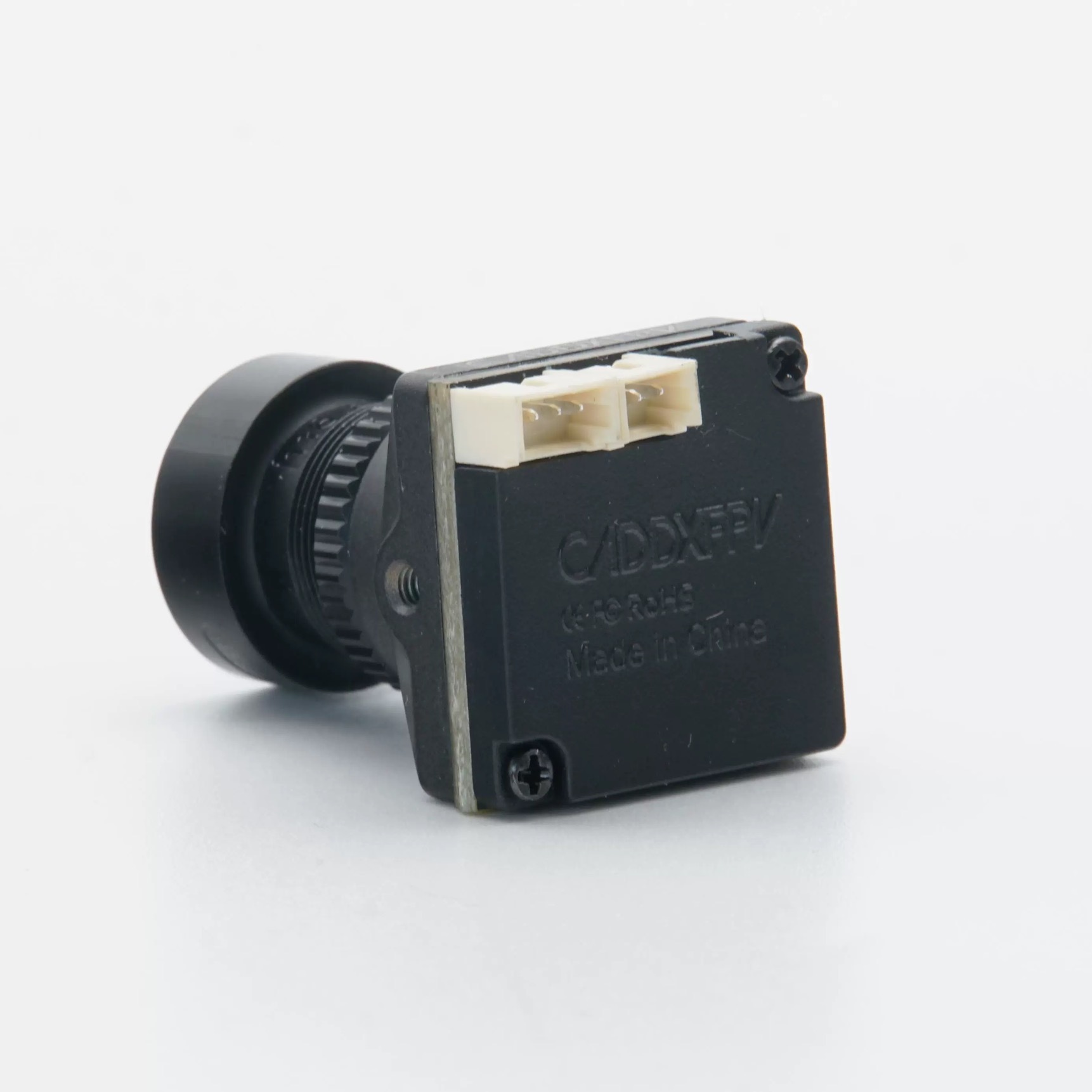

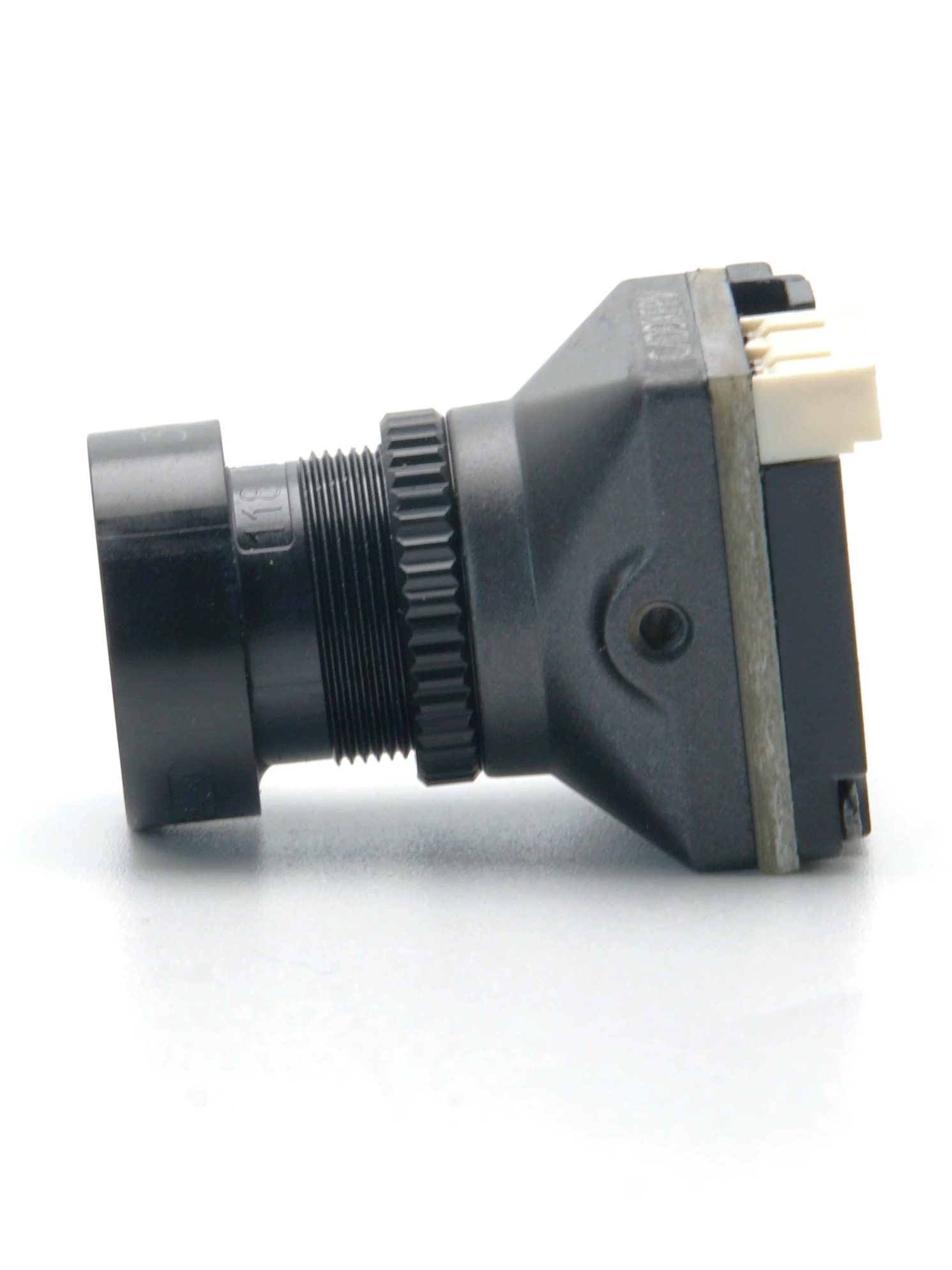

Model
|
GBE-CAM-Ratel Pro
|
|
mage Sensor
|
1/1.8" Inch sensor
|
|
Horizontal Resolution
|
1500TVL
|
|
TV System
|
NTSC & PAL (changeable)
|
|
|

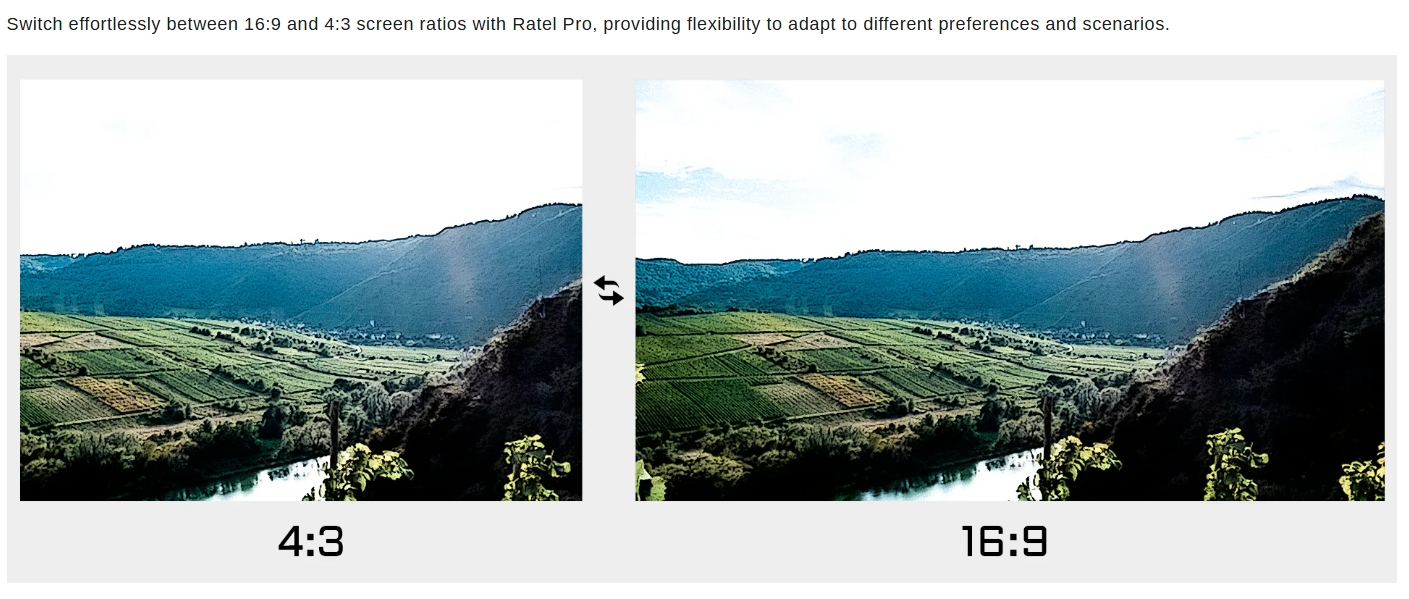

16:9 & 4:3 (changeable)
|
|

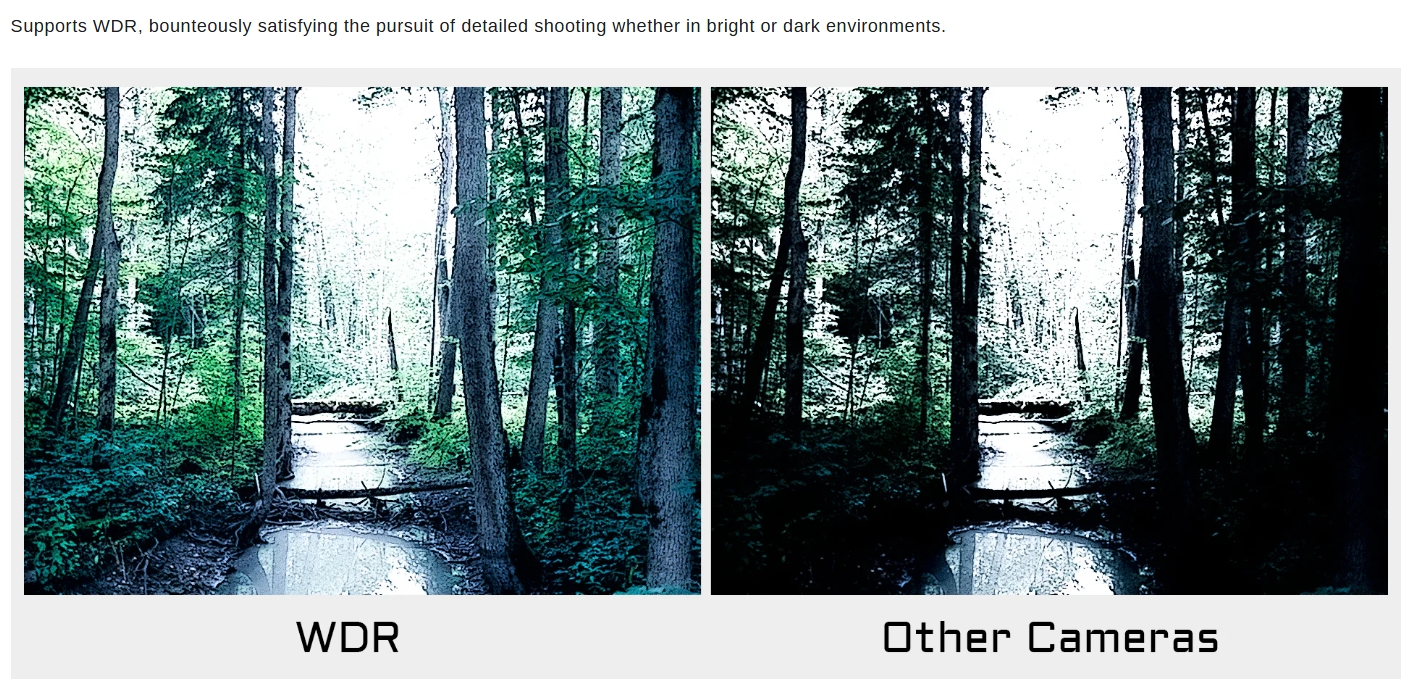

WDR
|
Super WDR （HDR)
|
|

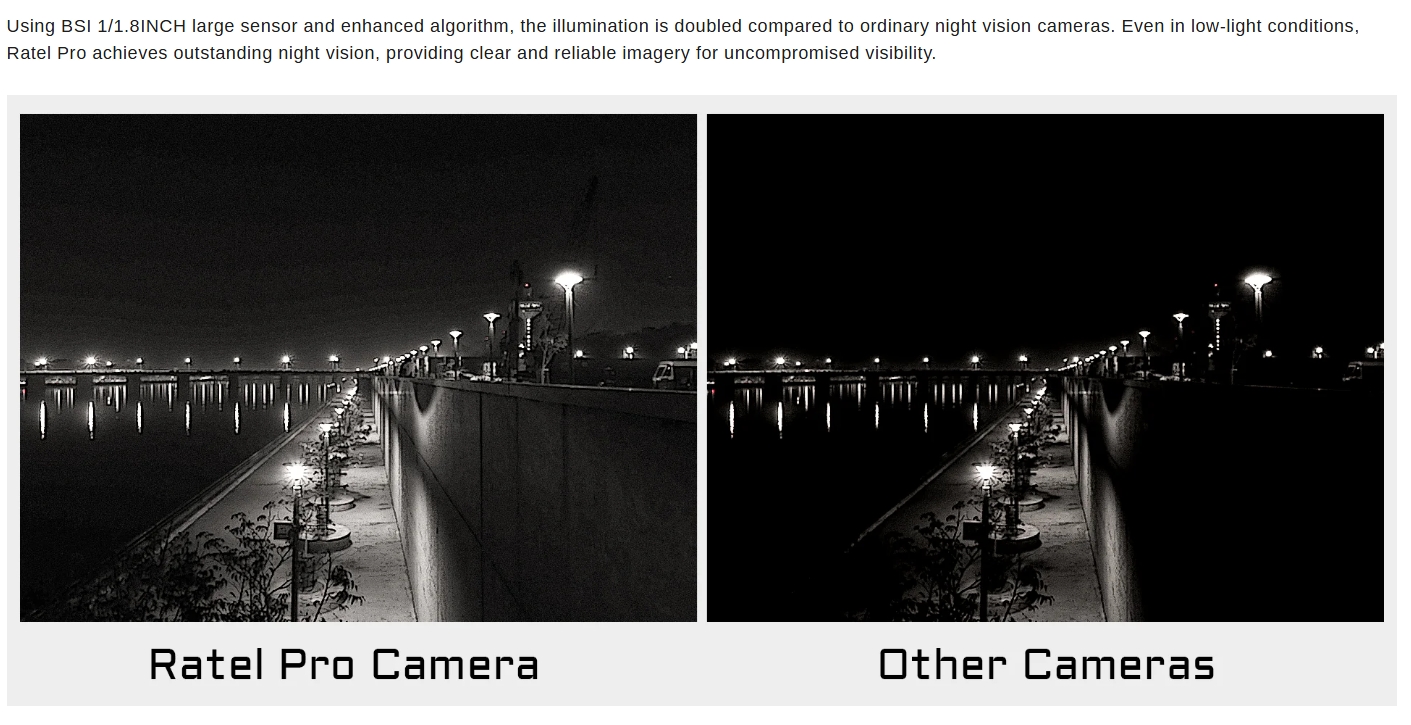

Min. Illumination
|
0.00001 lux
|
|
Lens
|
5Mega
|
|
Color
|
Black
|
|
Synchronization
|
Internal
|
|
Electronic Shutter
|
PAL: 1/50~100,000; NTSC: 1/60~100,000
|
|
S/N Ratio
|
>60dB (AGC OFF)
|
|

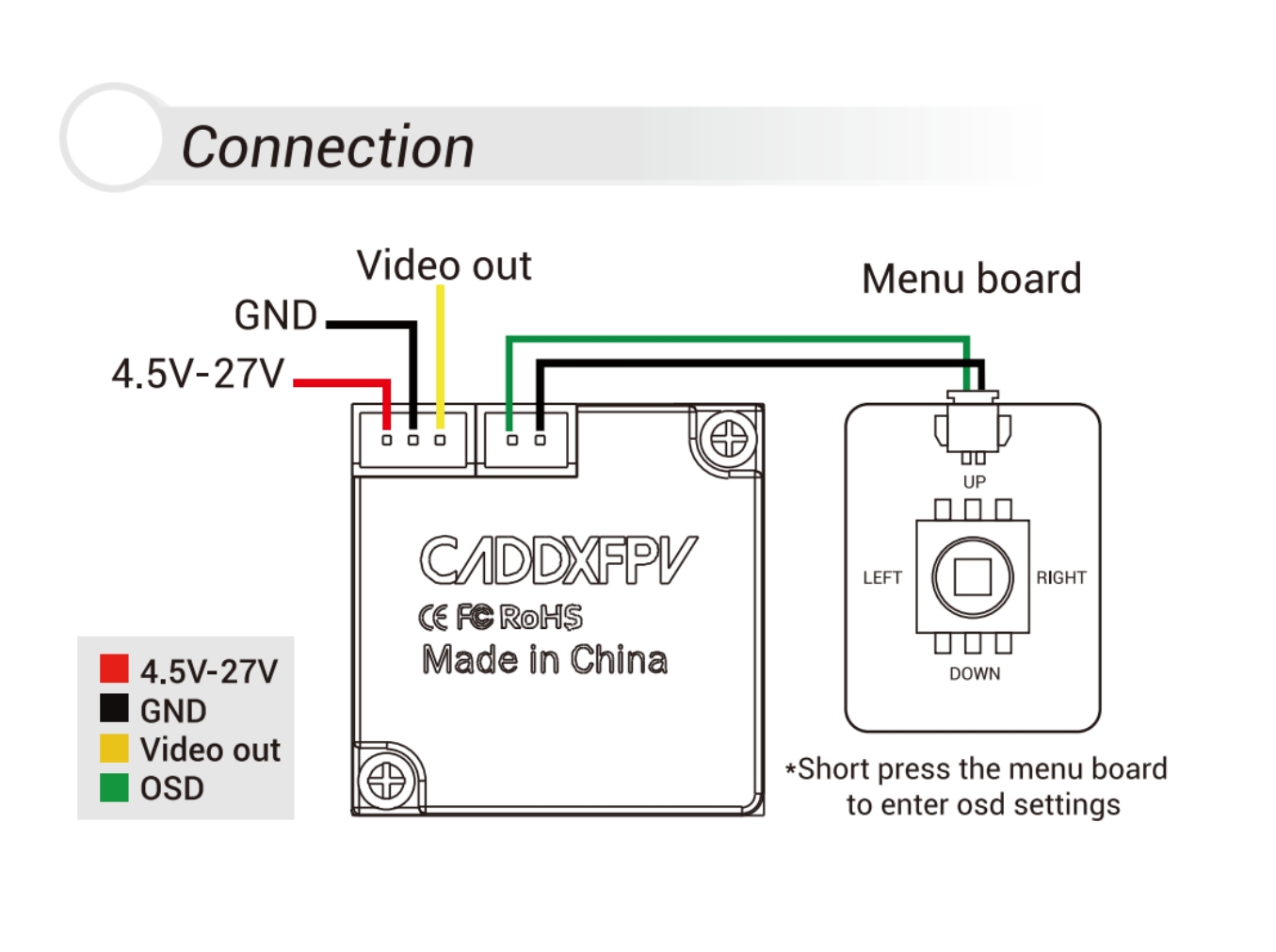

Video Output
|
CVBS
|
|

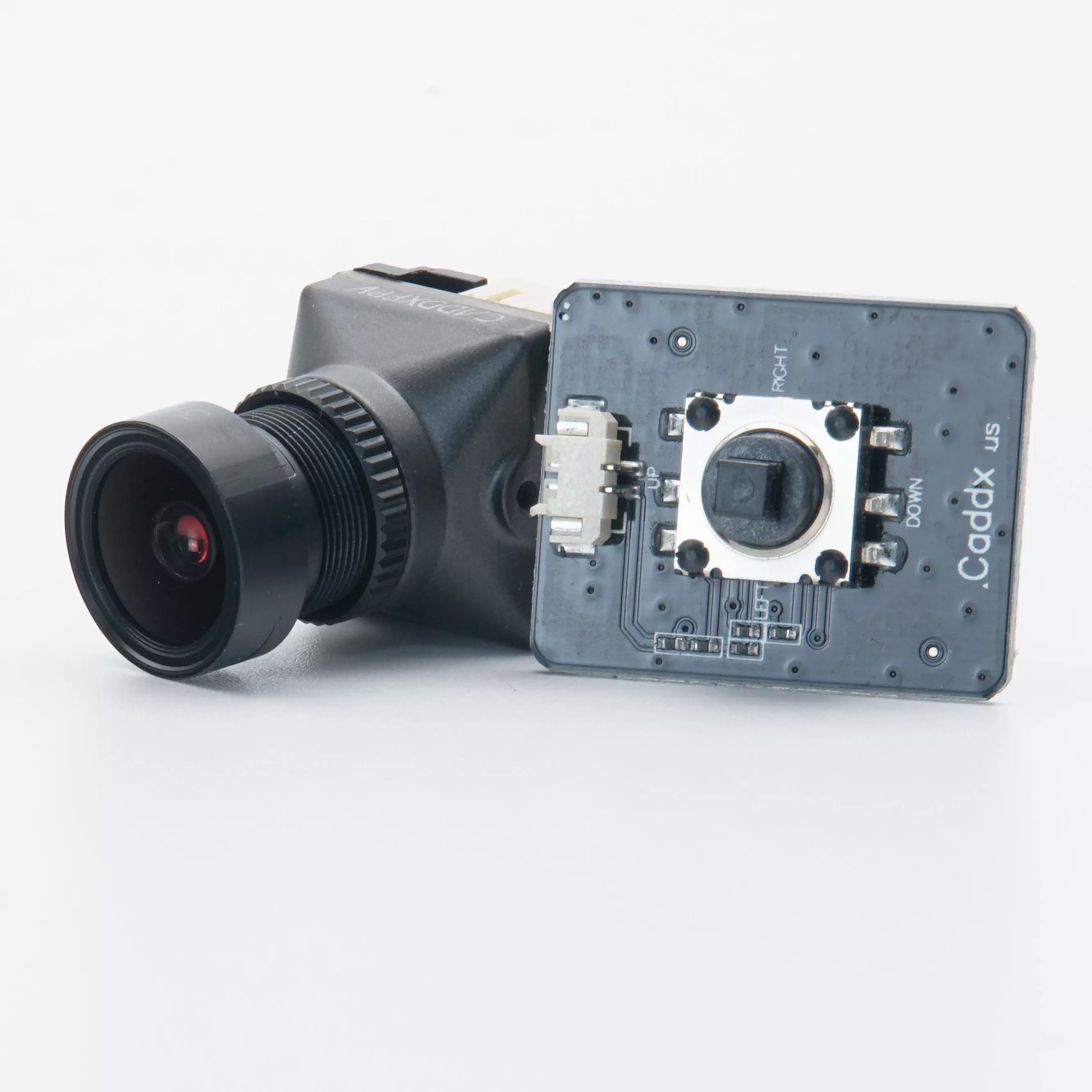

OSD manual
|
Support
|
|
DNR
|
3-DNR
|
|
FOV
|
125°
|
|
Language
|
ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本語
|
|

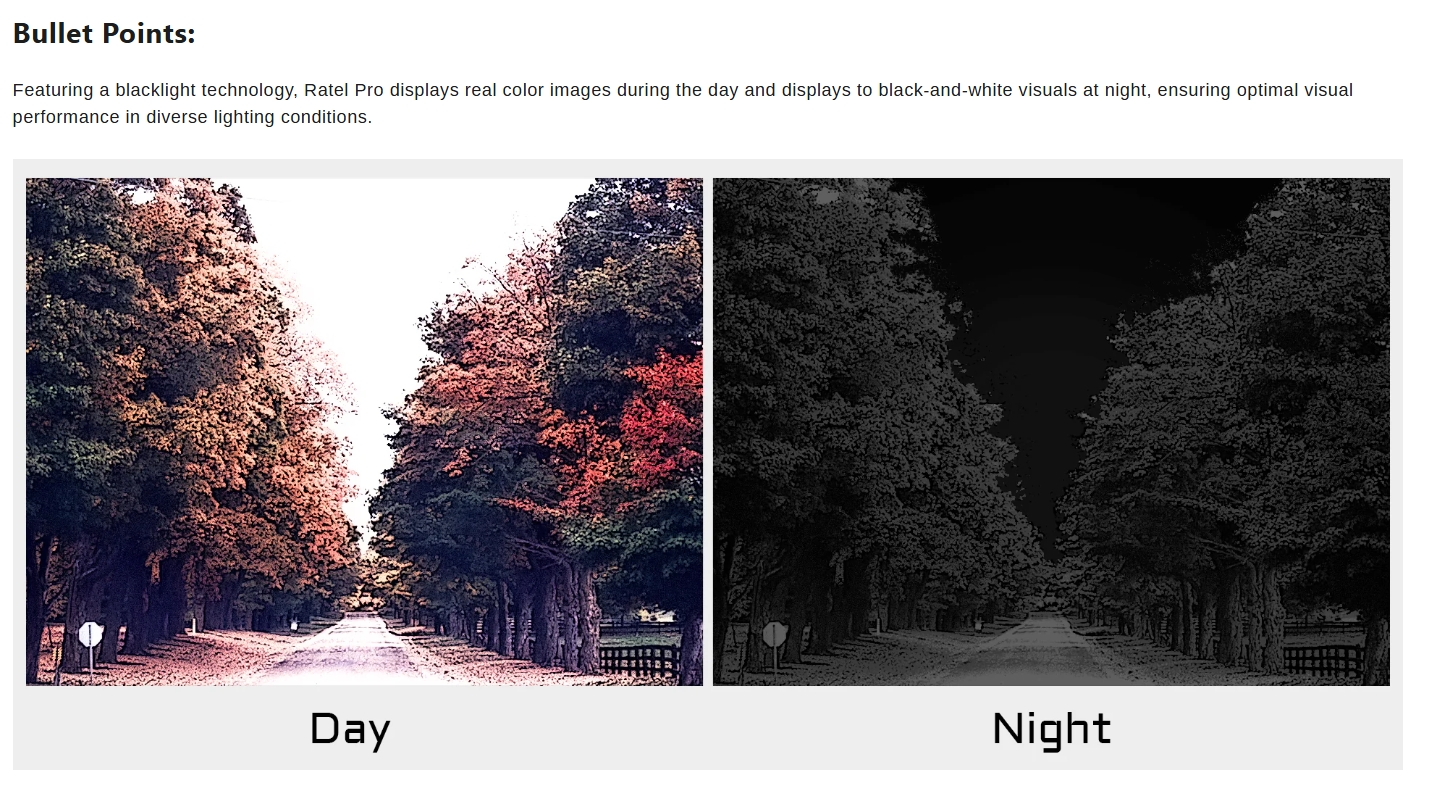

Day/Night
|
Auto/Color/B&W/EXT
|
|

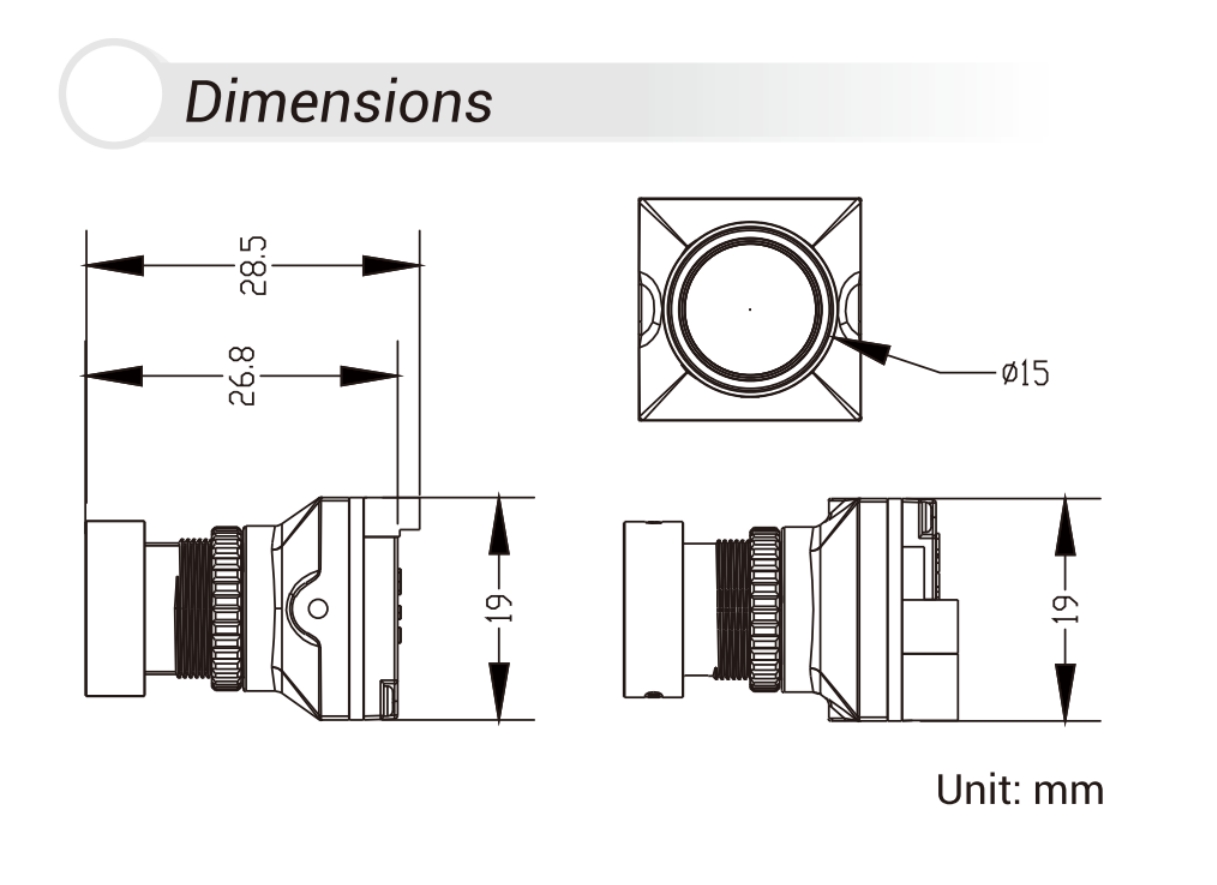

Dimensions
|
19mm*19mm
|
|
Wide Power Input
|
DC 4.5-27V
|
|
Work Temperature
|
-20℃~+60℃
|
|
Work Humidity
|
20%~80%
|
|

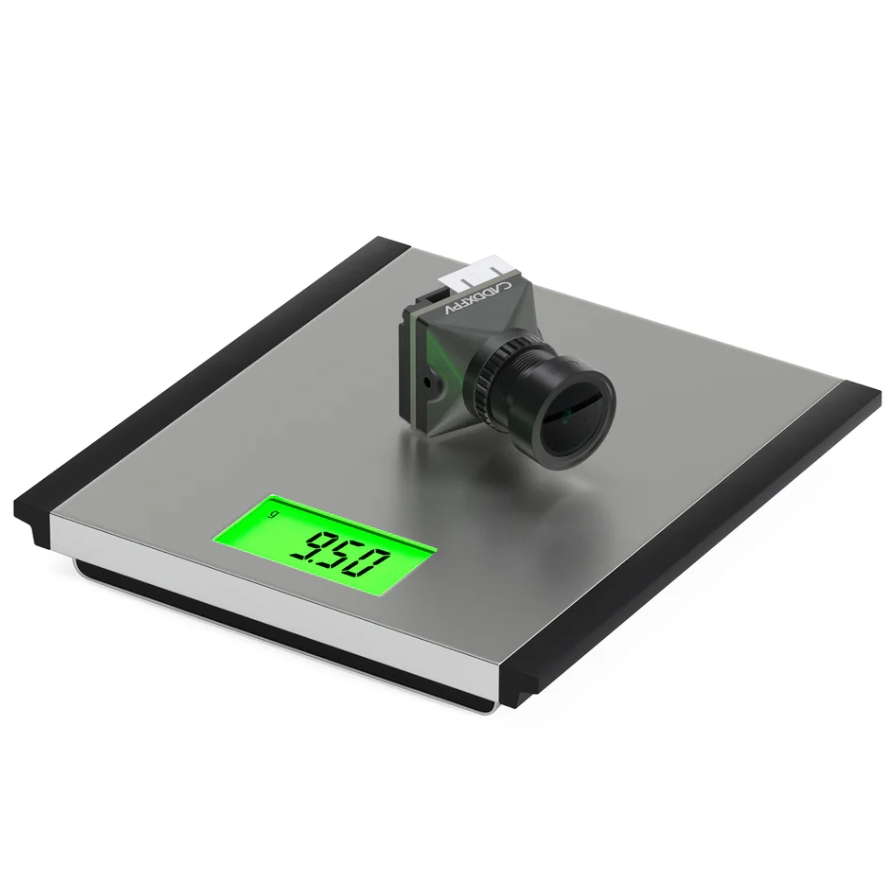

Weight
|
9.5g
|
