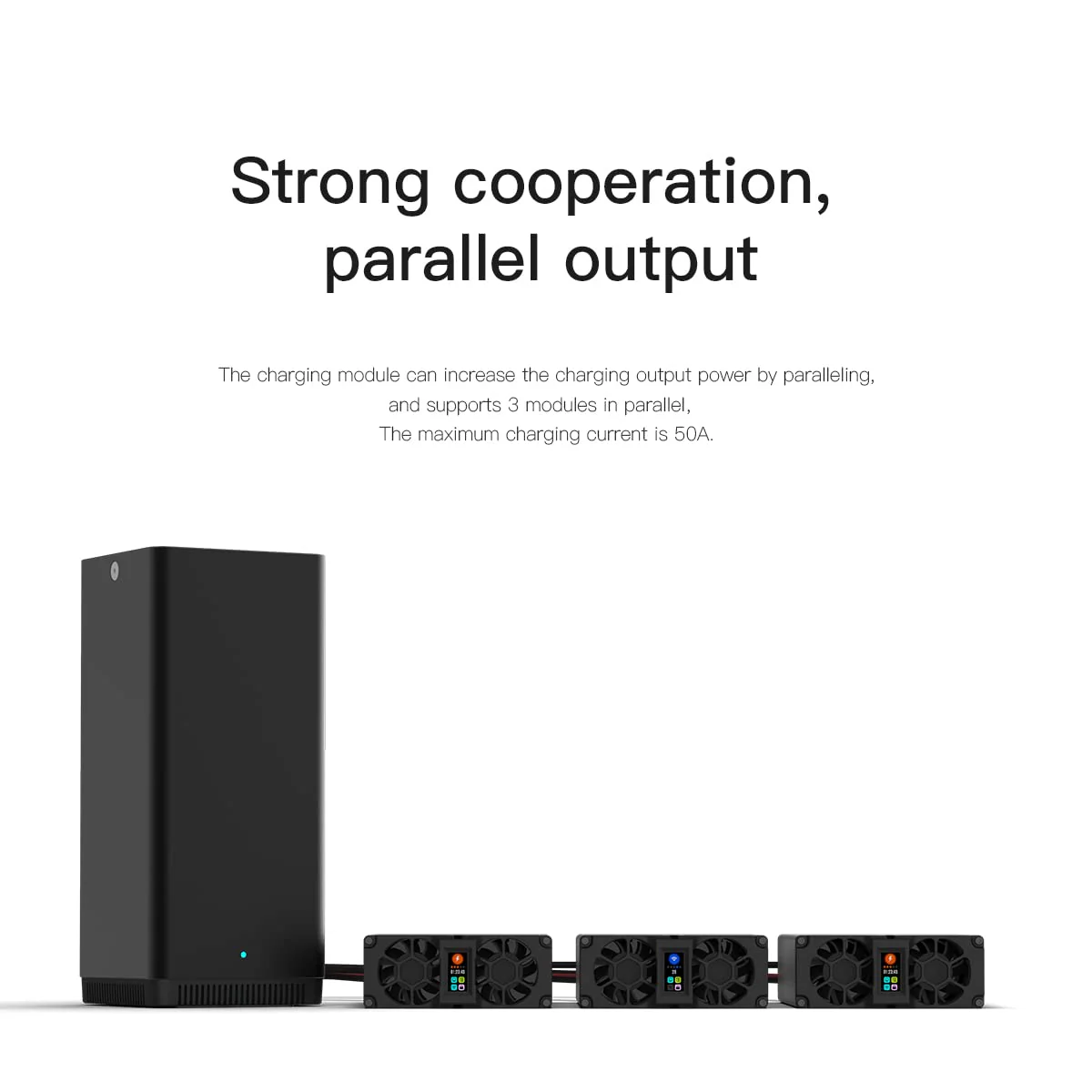

* Strong cooperation, parallel output: the charging module can increase the charging power by parallelization and supports 3 modules in parallel, the maximum charging current is 50A.

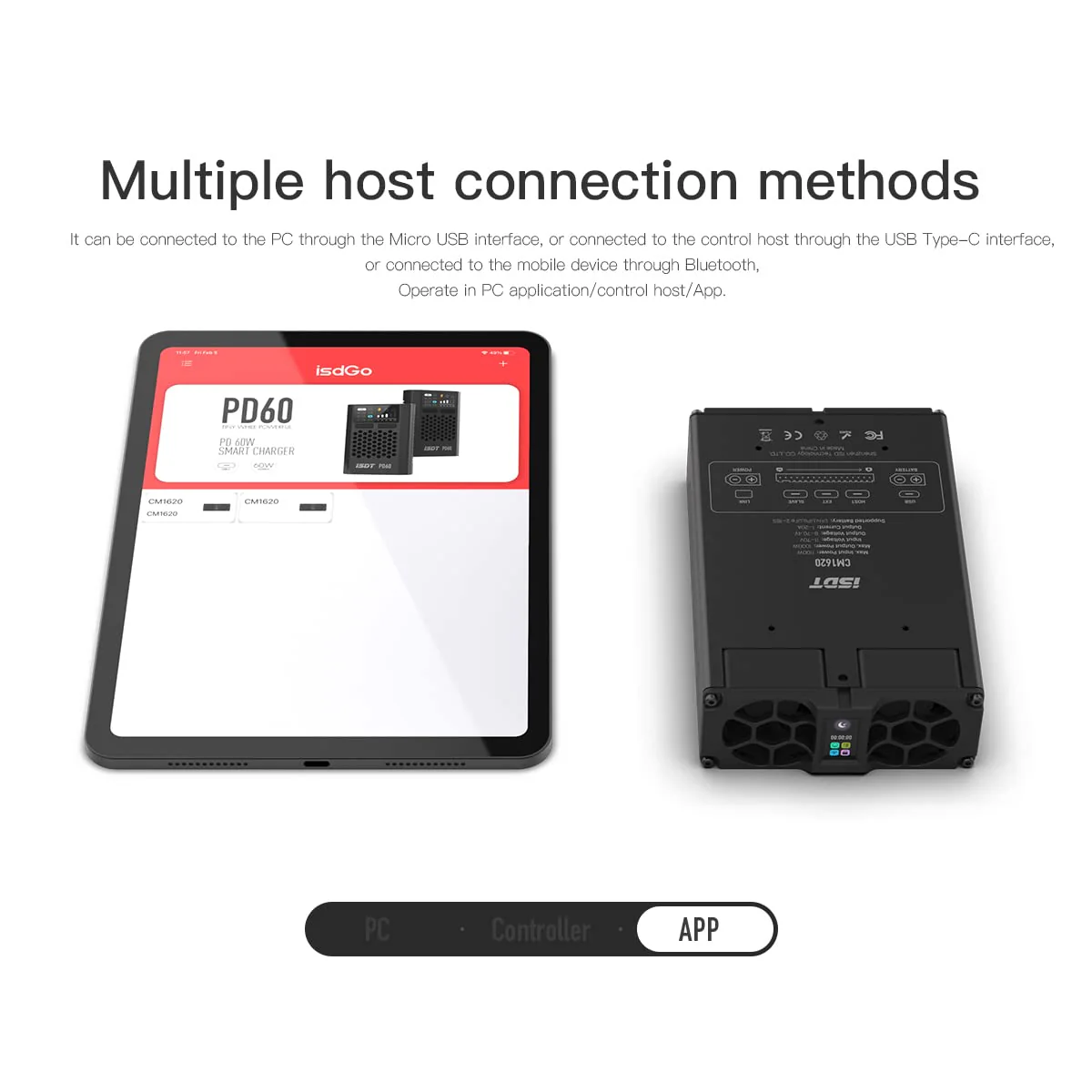

* Multiple Host Connection Methods: It can be connected to a PC via a micro USB interface, or connected to the control host via USB Type-C interface, or connected to the mobile device via Bluetooth, in PC app/control host/app.

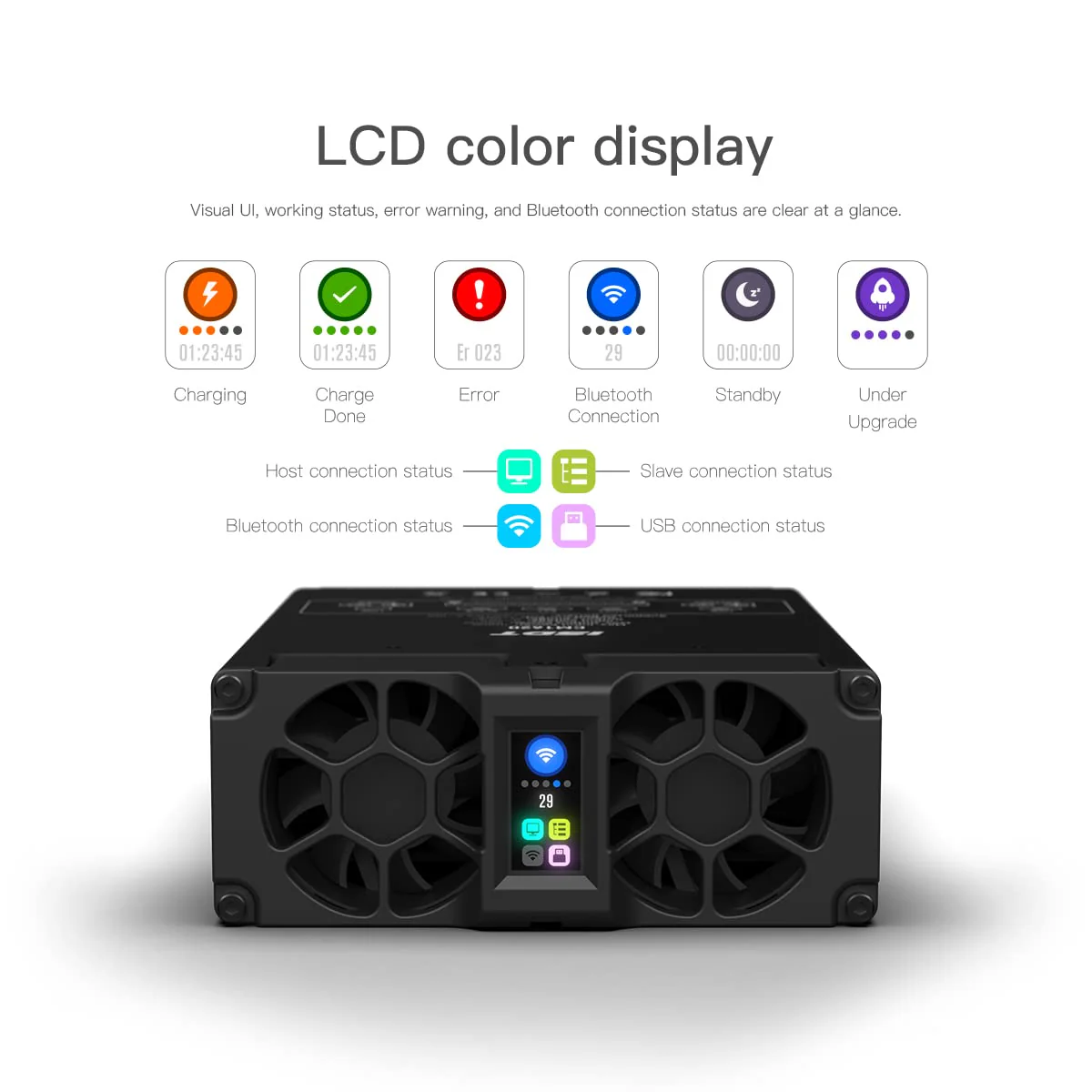

* LCD color screen: the visual interface, working status, error warning, and Bluetooth connection status are clear at a glance.

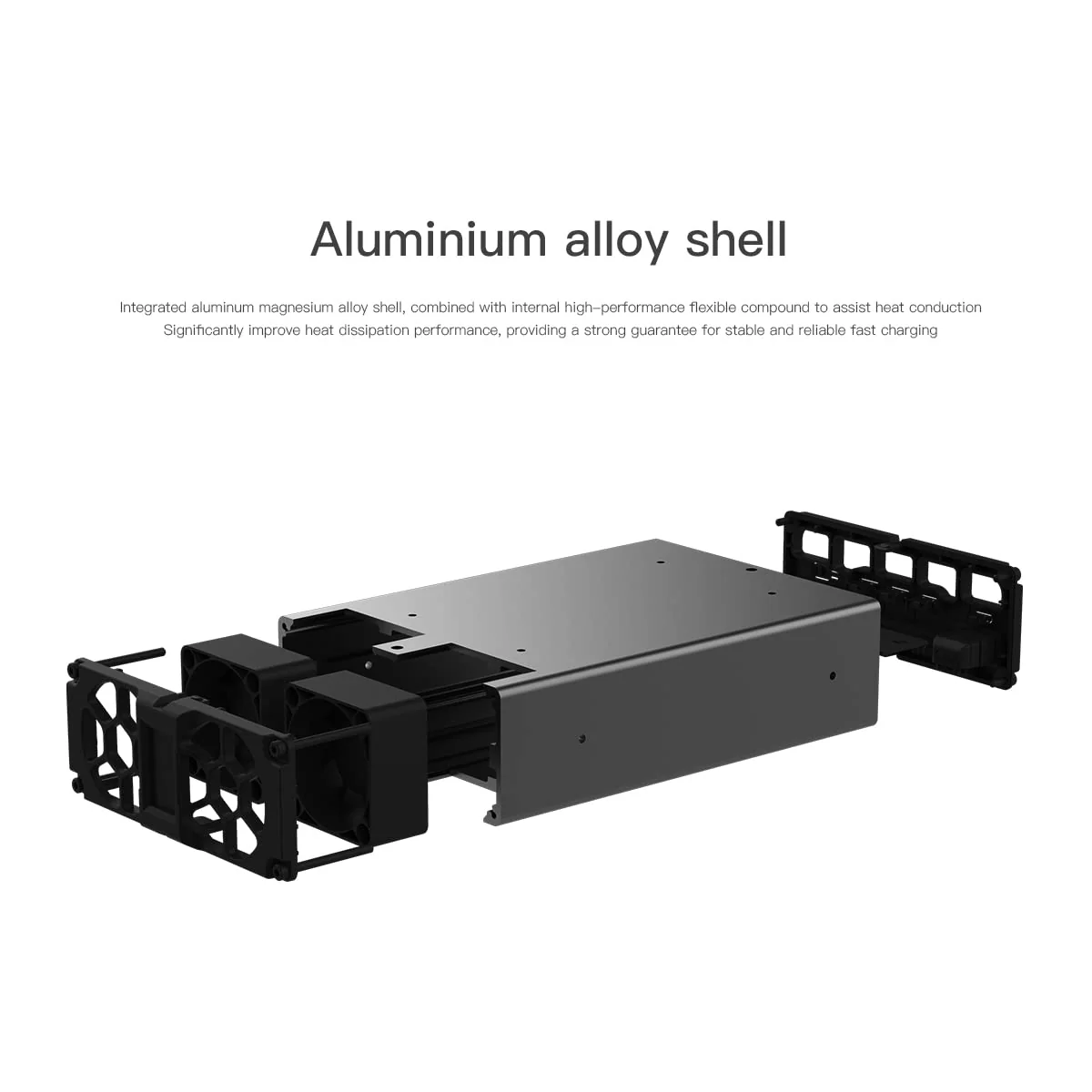

* Aluminum Alloy Shell: Built-in aluminum magnesium alloy shell, combined with high-performance flexible internal connection to support heat conduction, greatly improves heat dissipation performance and provides a strong guarantee for stable and reliable fast charging.

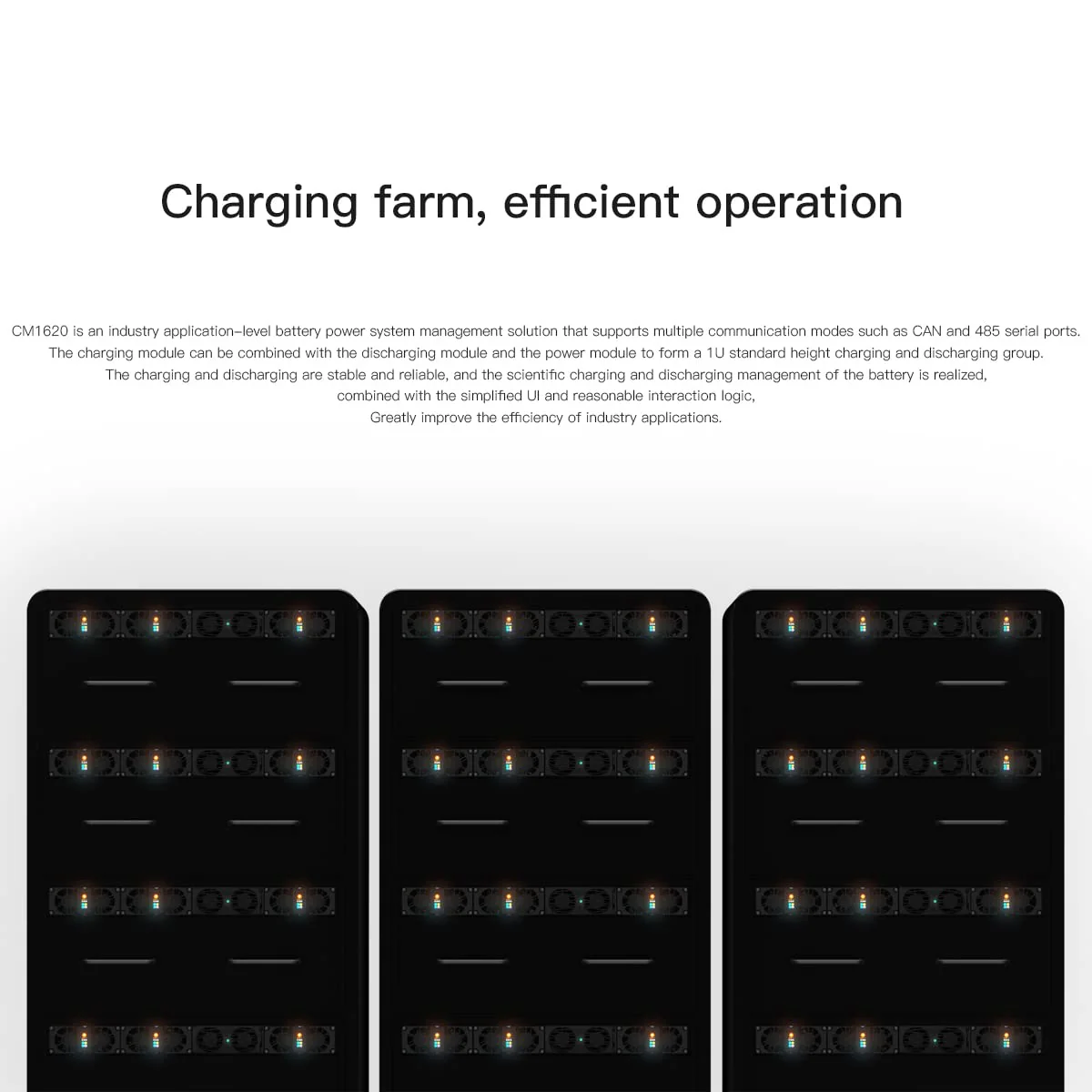

* Charging Battery, Efficient Operation: CM1620 is an industrial-level battery power system management solution that supports multiple communication modes such as CAN and 485 series interfaces. The charging module can be combined with the discharge module and the power module to form a 1U standard height charging and discharging group.
|
GENERAL
|
|
Dimension:
|
105×165×41mm
|
|
Weight:
|
About 636g
|
|
CHARGER
|
|
Max. input power:
|
1100W
|
|
Max. output power:
|
1000W
|
|
Input voltage:
|
DC 11~70V
|
|
Output voltage:
|
DC 8~70.4V
|
|
Output current:
|
1~20A
|
|
Supported battery types and cell count:
|
LiHv, LiPo,LiFe 2-16S
|
|
Abnormal voltage alarm:
|
Support
|
|
Incorrect cell count setting alarm:
|
Support
|
|
Working temperature:
|
0℃~40℃
|
|
Storage temperature:
|
-20℃~60℃
|
IN THE BOX1X ISDT CM1620 Charging Module
