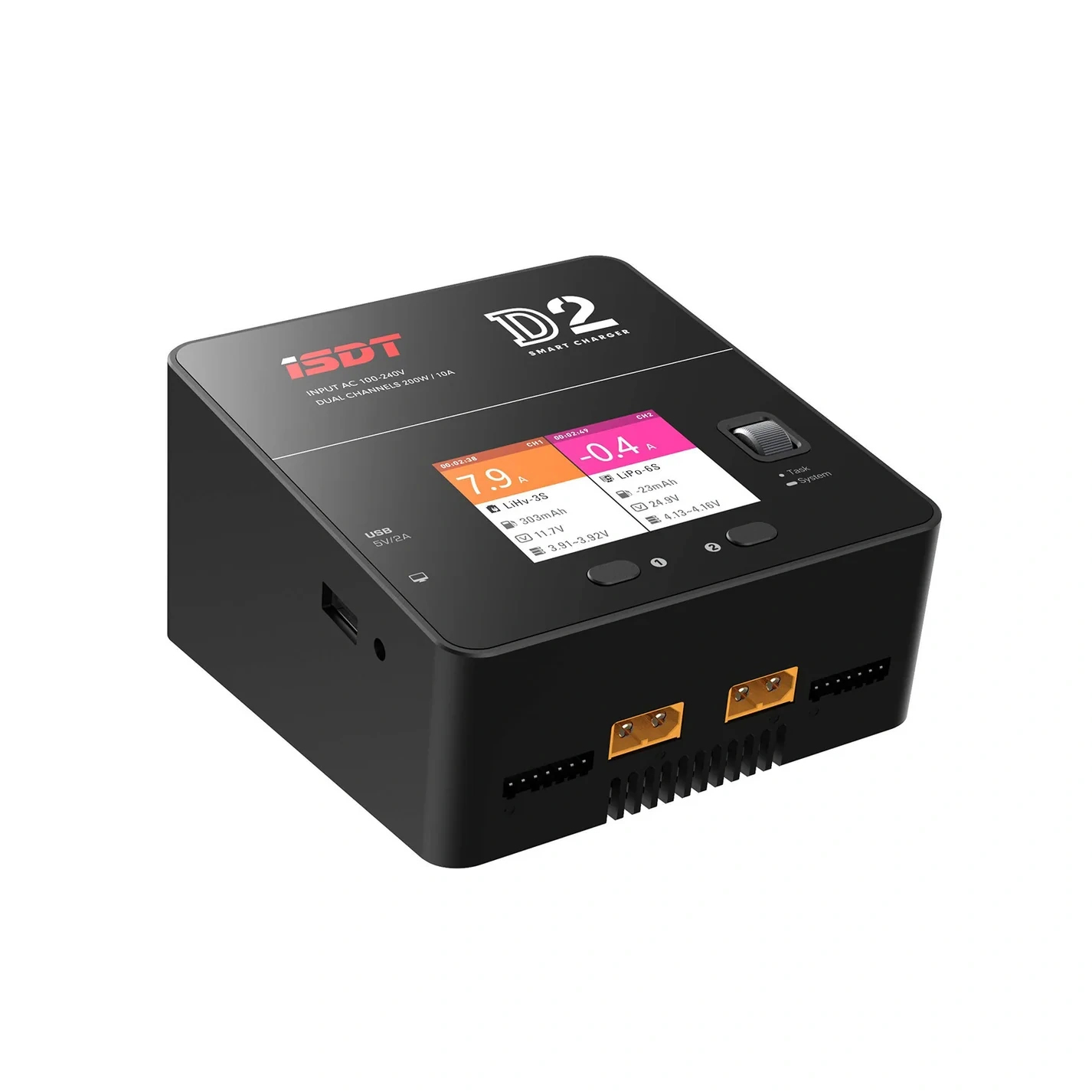

* 【Add more function】D2 mark 2 add the function of Parallel task, Dual task,DC power (CH1), theme, more languages.
*【Upgrade hardwre】D2 mark 2 has upgraded hardware, optimizing the system,also further improved the system stability.

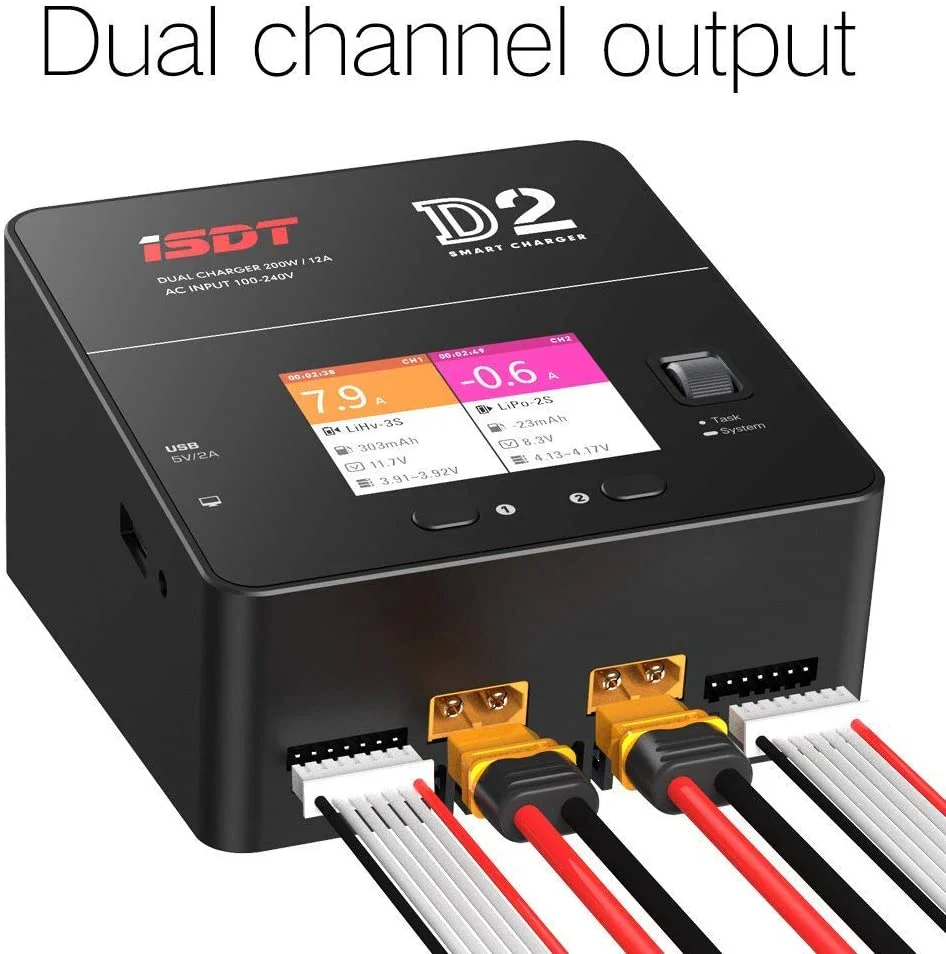

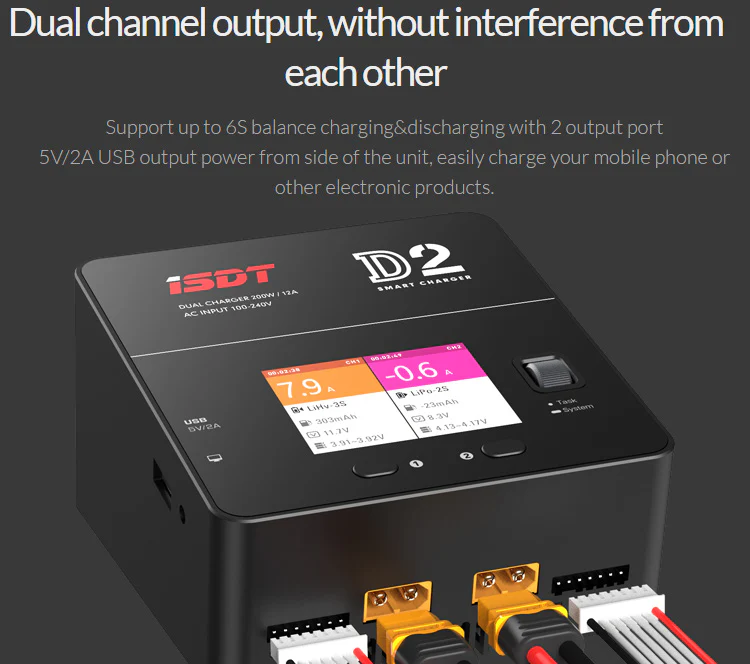

*【Dual channel output】 Without interference from each other Support up to 6S balance charging and discharging with 2 output port 5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products.

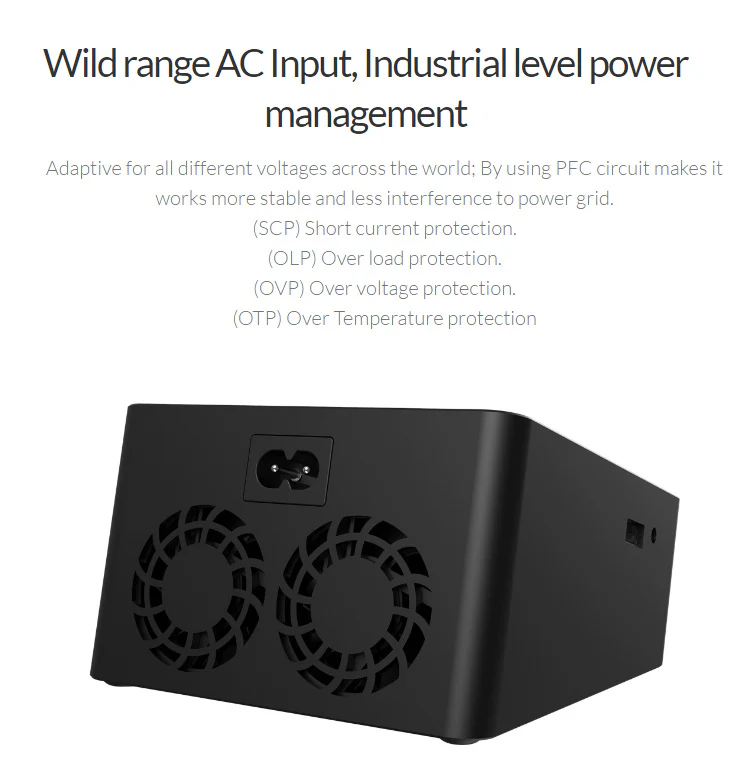

*【Feature】 Wide range AC Input, Industrial level power managemen.t Adaptive for all different voltages across the world; By using PFC circuit makes it works more stable and less interference to power grid. (SCP) Short current protection. (OLP) Over load protection. (OVP) Over voltage protection. (OTP) Over Temperature protection.
*【Supported Batt. Type】LiHv (1-6S) LiPo (1-6S) LiFe(1-6S) Lilon (1-6S) NiMH(1-16S) Cd(1-16S) Pb(1-12S).
|
GENERAL
|
|

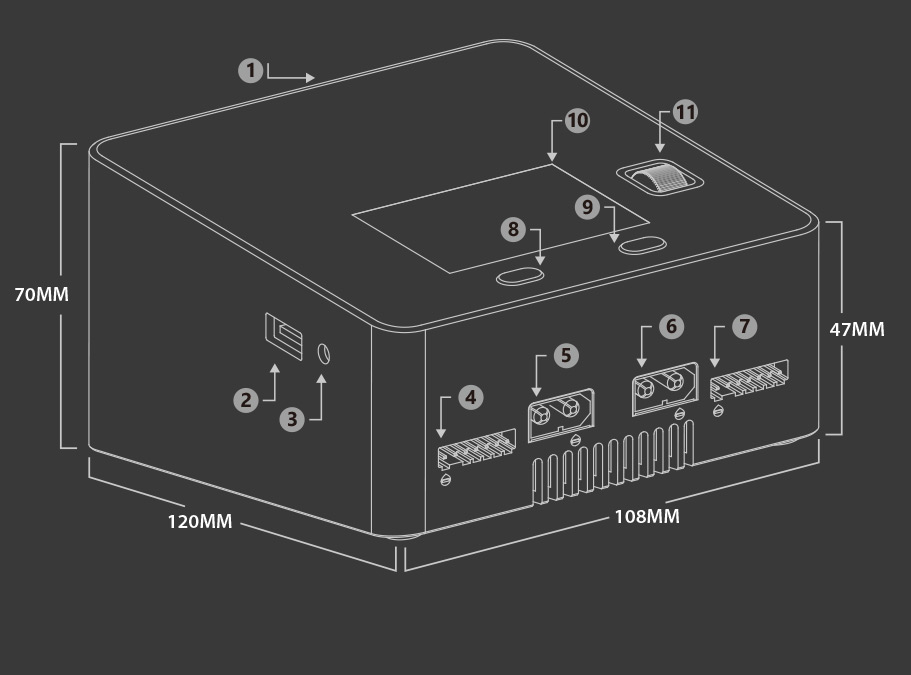

Product size
|
120x108x70 mm
|
|
Product weight
|
510g
|
|
CHARGER
|
|
Input
|
AC 100~240V
|
|
Charge Current
|
0.1-12.0A * 2
|
|
Discharge Current
|
0.1-3.0A * 2
|
|
Max Charge Capacity
|
200W
|
|
Max Discharge Capacity
|
5W * 2
|
|
Balancing Current
|
1A/cell * 2
|
|
Balance Cells
|
6S * 2
|
|
Display
|
2.4〃320×240 IPS LCD
|
|
Operating Temperature
|
0-40°C
|
|
Storage Temperature
|
-20-60°C
|
1x AC Input Cable
