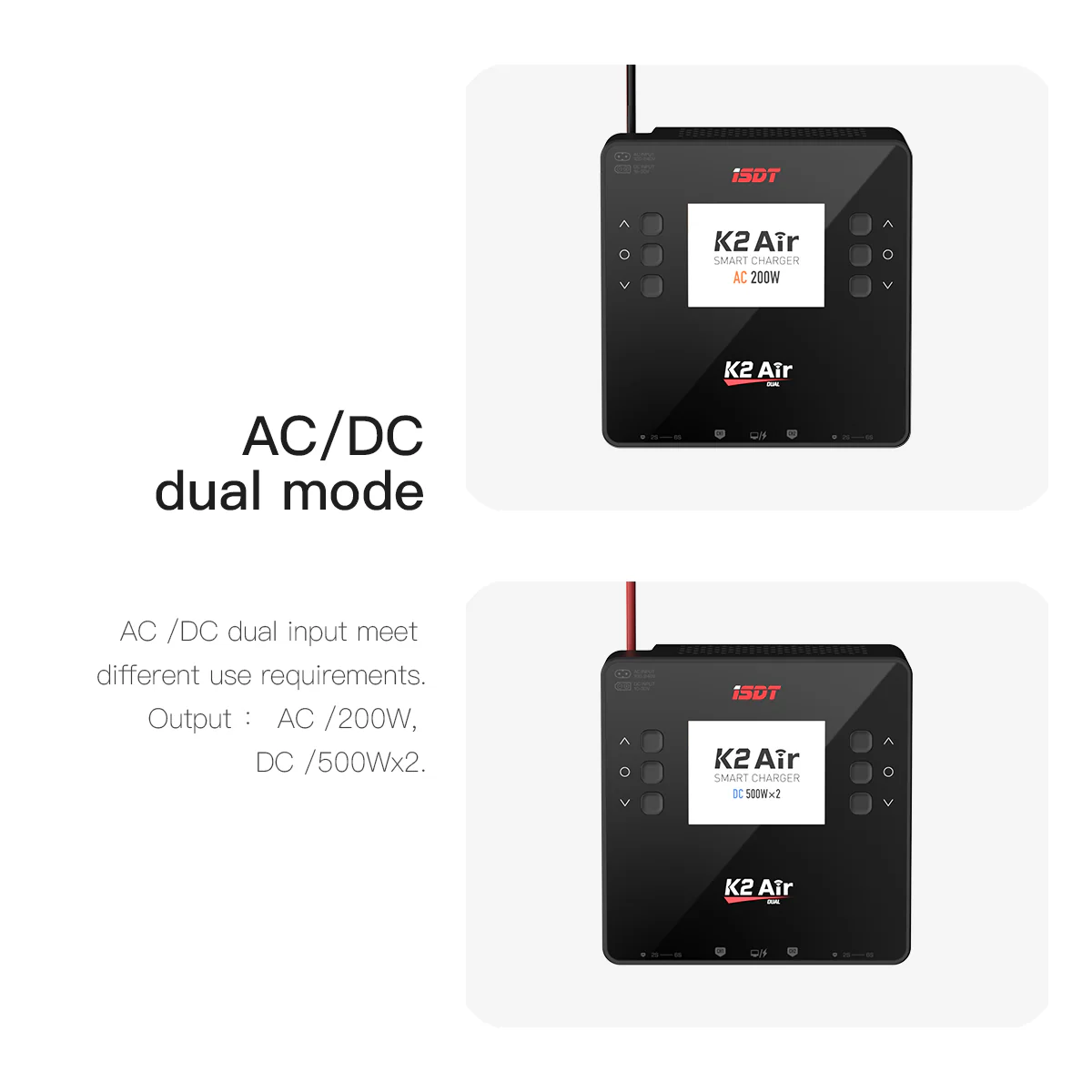

▶ 【AC / DC dual mode】 - AC / DC dual input meets different use requirements. Output: AC /200W, DC /500Wx2.

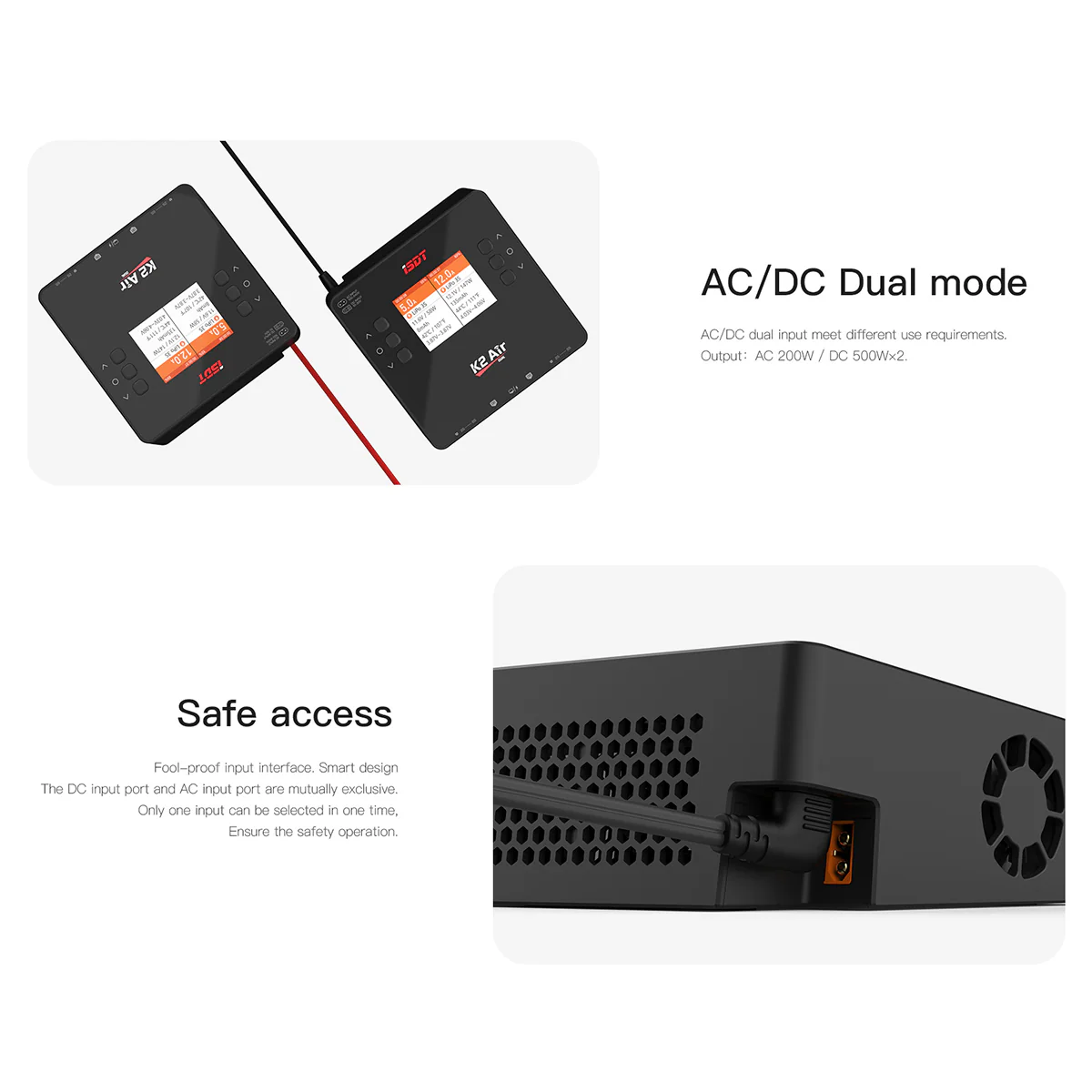

▶ 【Safe Access】 - Fool-proof input interface. Smart design. The DC input port and the AC input connector are mutually exclusive. Only one input can be selected at a time. Ensure the safe operation.

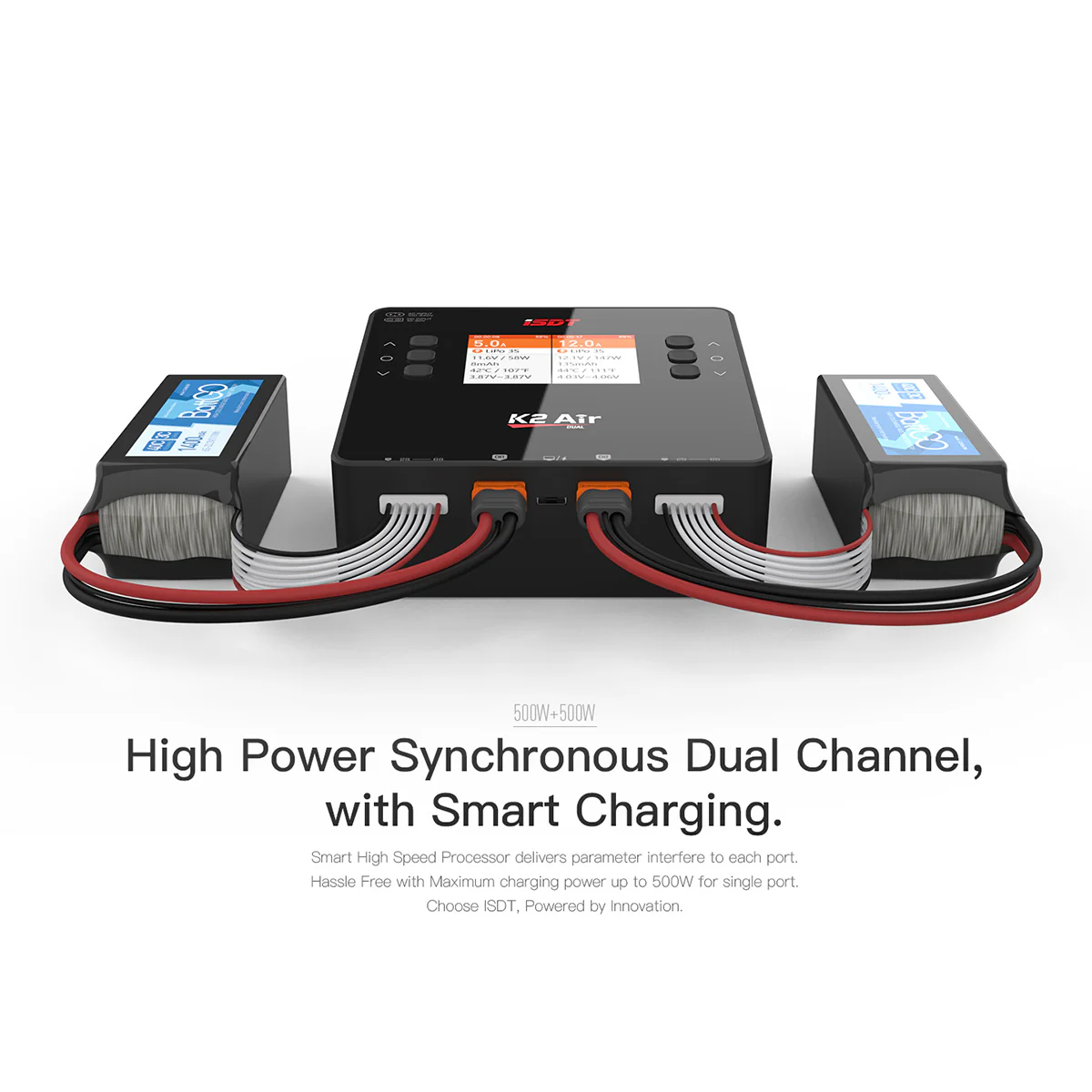

▶ 【High Power Synchronous Dual Channel】 - with Smart Charging. Smart High Speed Processor delivers parameter interference to each port. Hassle-free with Maximum charging power up to 500W for a single port. Choose ISDT, Powered by Innovation.

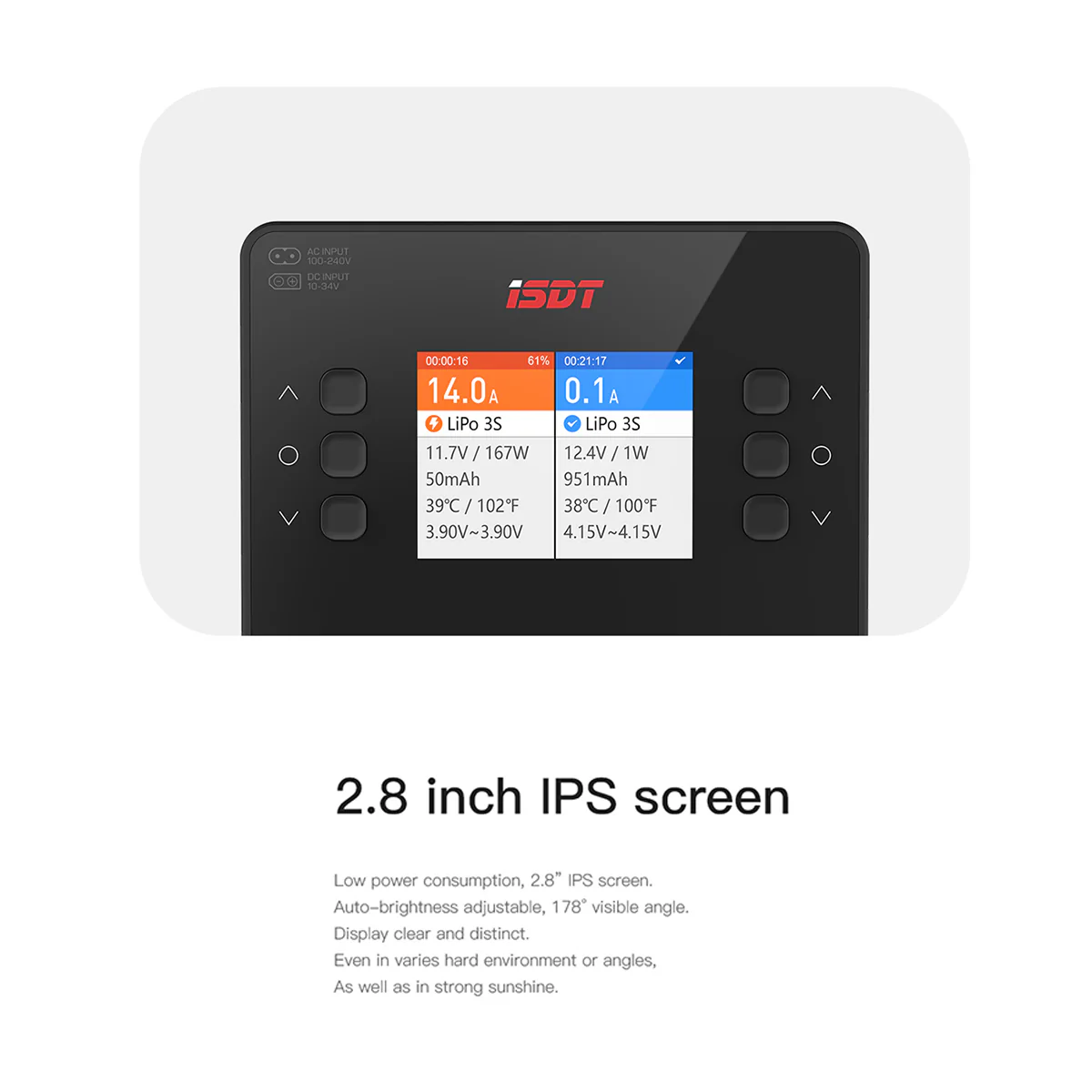

▶ 【2.8″ IPS LCD Display Low power consumption】 - 178° visible angle Display clear and distinct Even in various hard hardenvironmentst or angles As well as in strong sunshine.

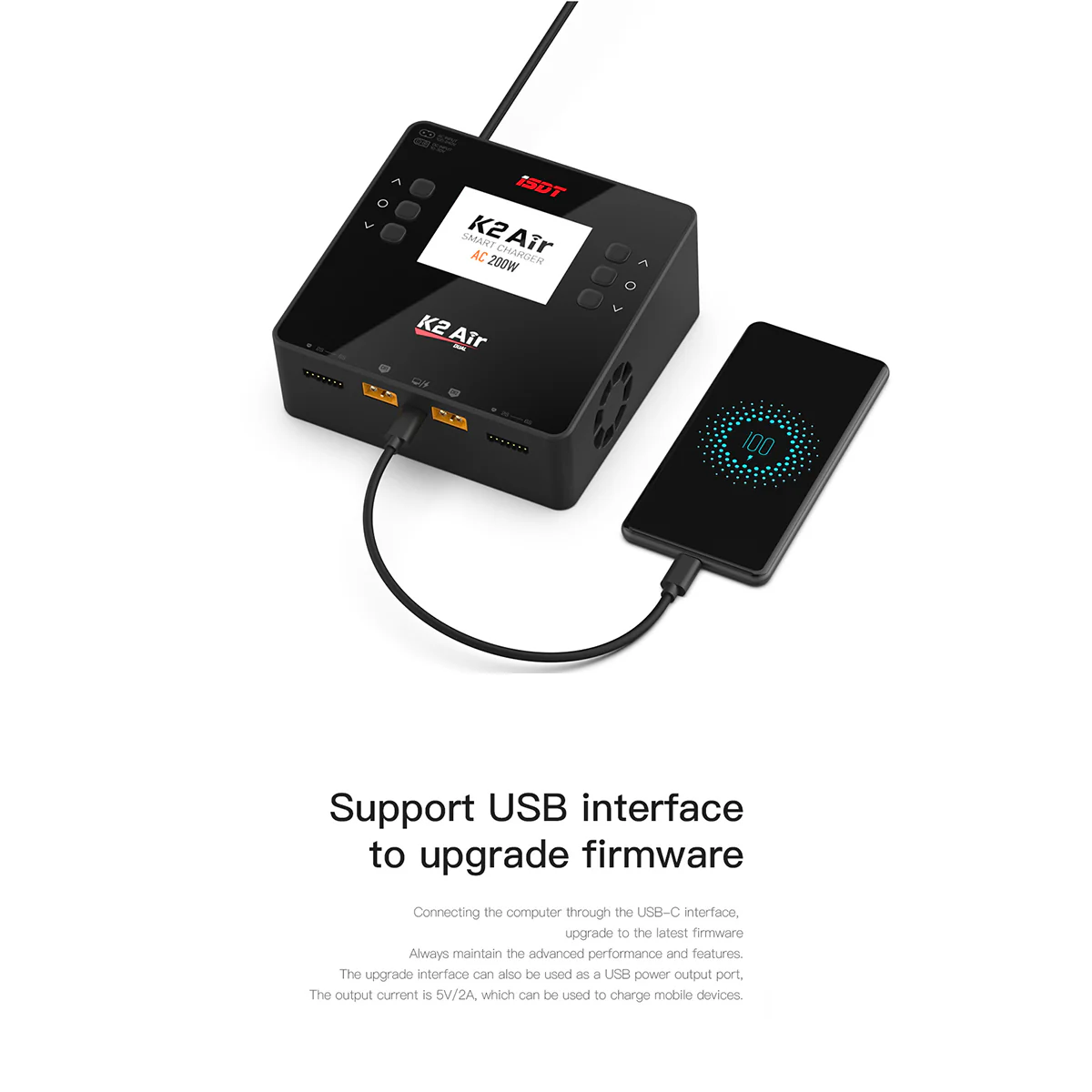

▶ 【Two-way USB interface】 - By connecting the charger microUSB port to the PC, all series can acquire the latest firmware upgrade. It can also output 5V/2A power through the USB Type-C interface, for charging mobile devices.
Note:

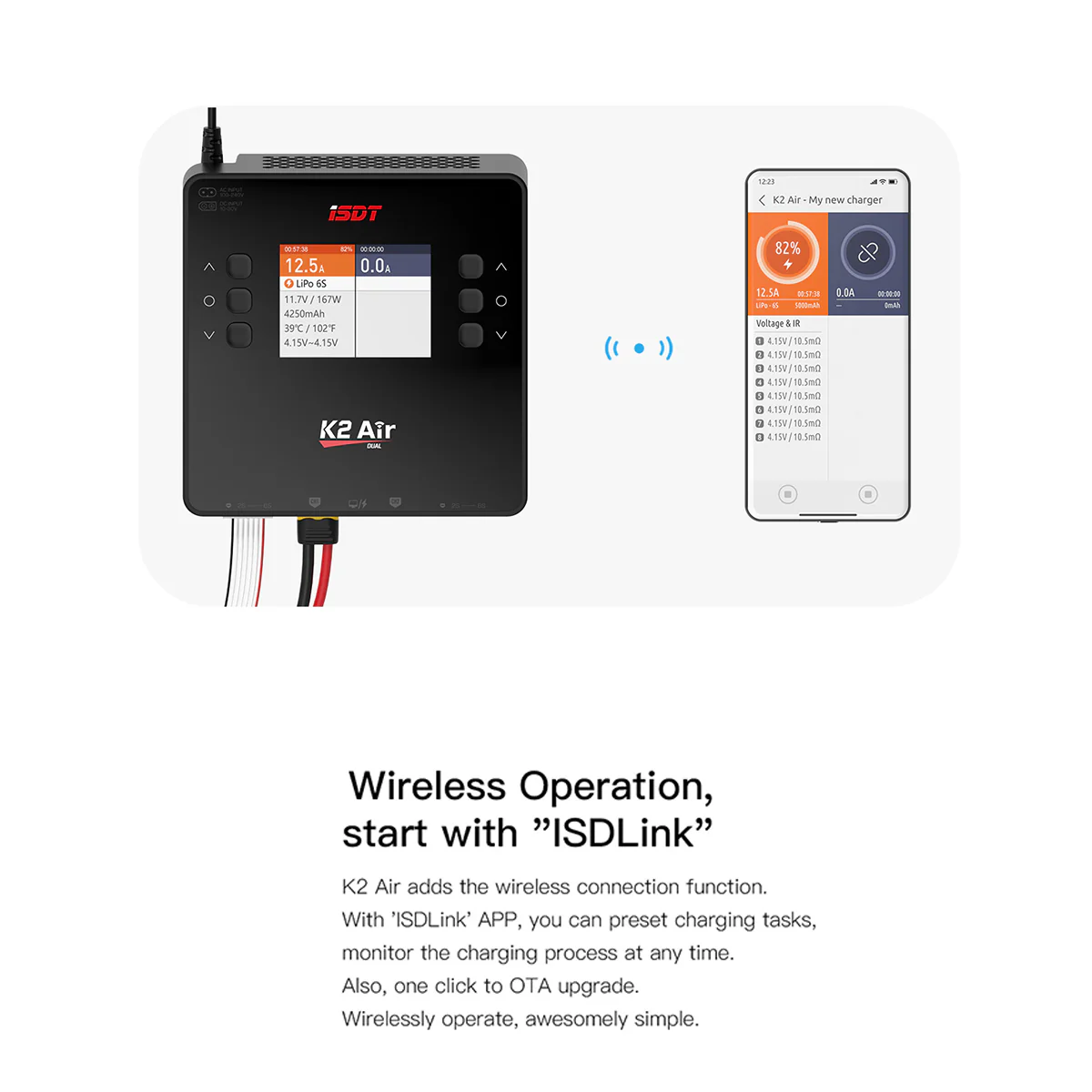

It supports the Bluetooth connection function of mobile phones, so you can control the charging status of LiPo batteries anytime and anywhere.
|
GENERAL
|
|
Dimension:
|
135x135x64mm
|
|
Weight:
|
About 700g
|
|
CHARGER
|
|
Input voltage:
|
AC 100~240V / DC 10~30V
|
|
Output voltage:
|
DC 1~30V
|
|
Max. input current:
|
DC 35A
|
|
Charging current:
|
0.2~20A x2
|
|
Discharging current:
|
0.2~1.5A x2
|
|
Balance current:
|
1.5A/Cell Max
|
|
Max. discharging power:
|
15W x2
|
|
Max. charging power:
|
AC 200W / DC 500W x2
|
|
Abnormal voltage alarm:
|
Support
|
|
Incorrect cell count setting alarm:
|
Support
|
|
Supported battery types and cell count:
|
LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
|
|
Parallel charging power and current:
|
800W/35A
|
|
Parallel discharge power and current:
|
30W/3A
|
|
Working temperature:
|
0~40℃
|
|
Storage temperature:
|
-20℃~60℃
|
IN THE BOX
1 x ISDT K2 air charger.
