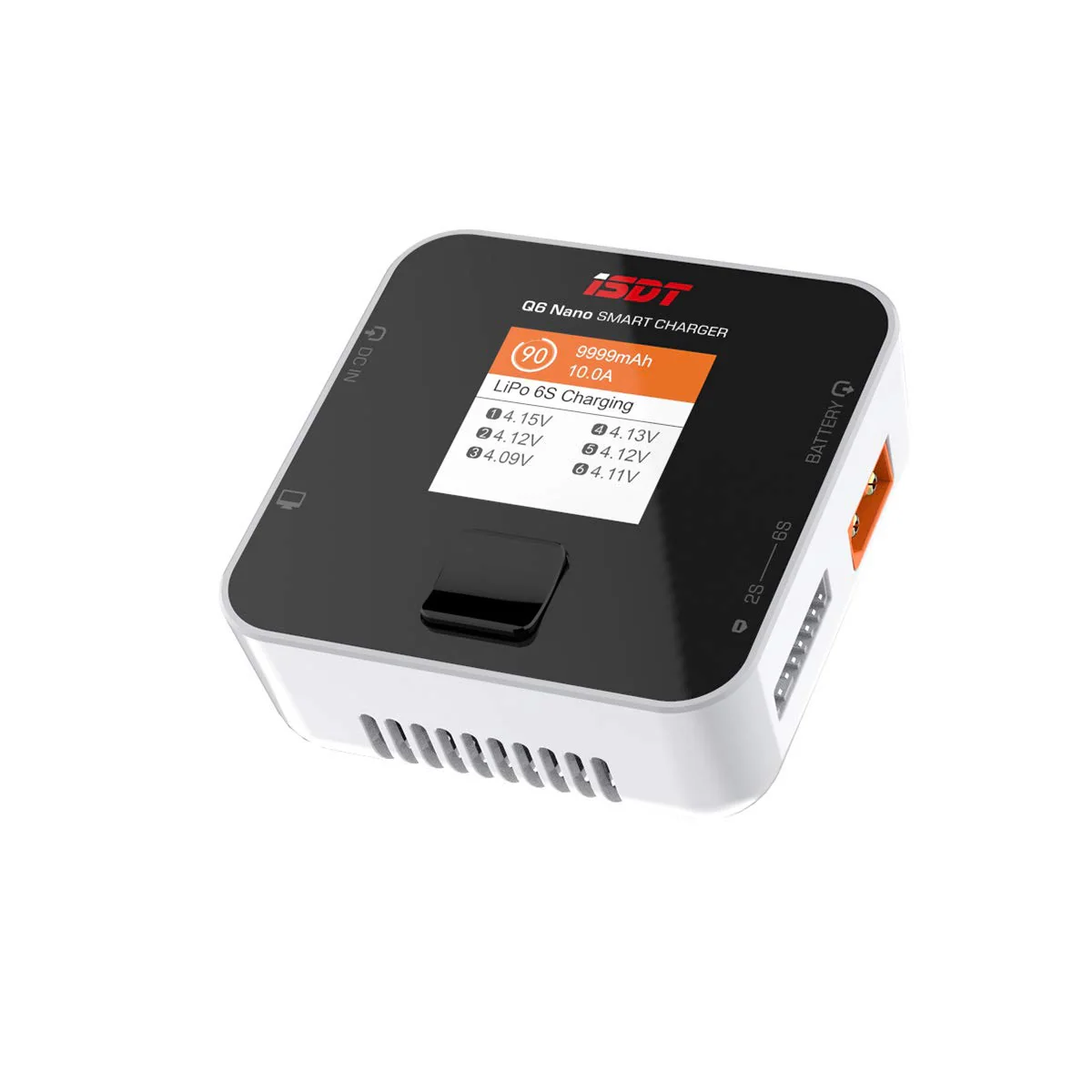

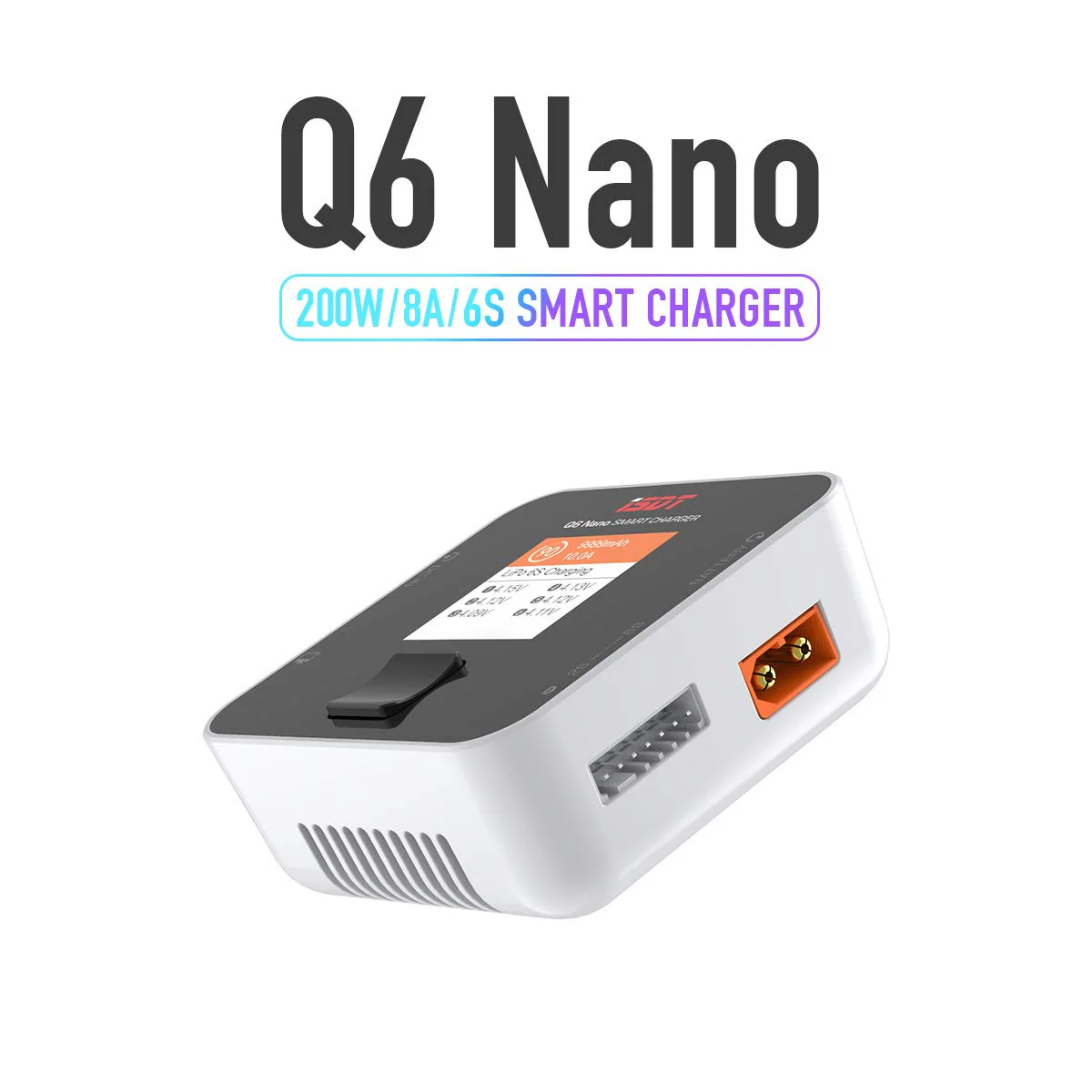

* ⚡【New generation of pocket chargers】 The ISDT Q6 Nano lipo battery charger with 200W high power, max.8A charging current,can be 2~6S lithium/life/ liion/ lipo/lihv/1~16s ni-mh/cd batterie charger. Committed to being the best lipo charger for your RC car, plane, drone, Spektrum, or Traxxas batteries.

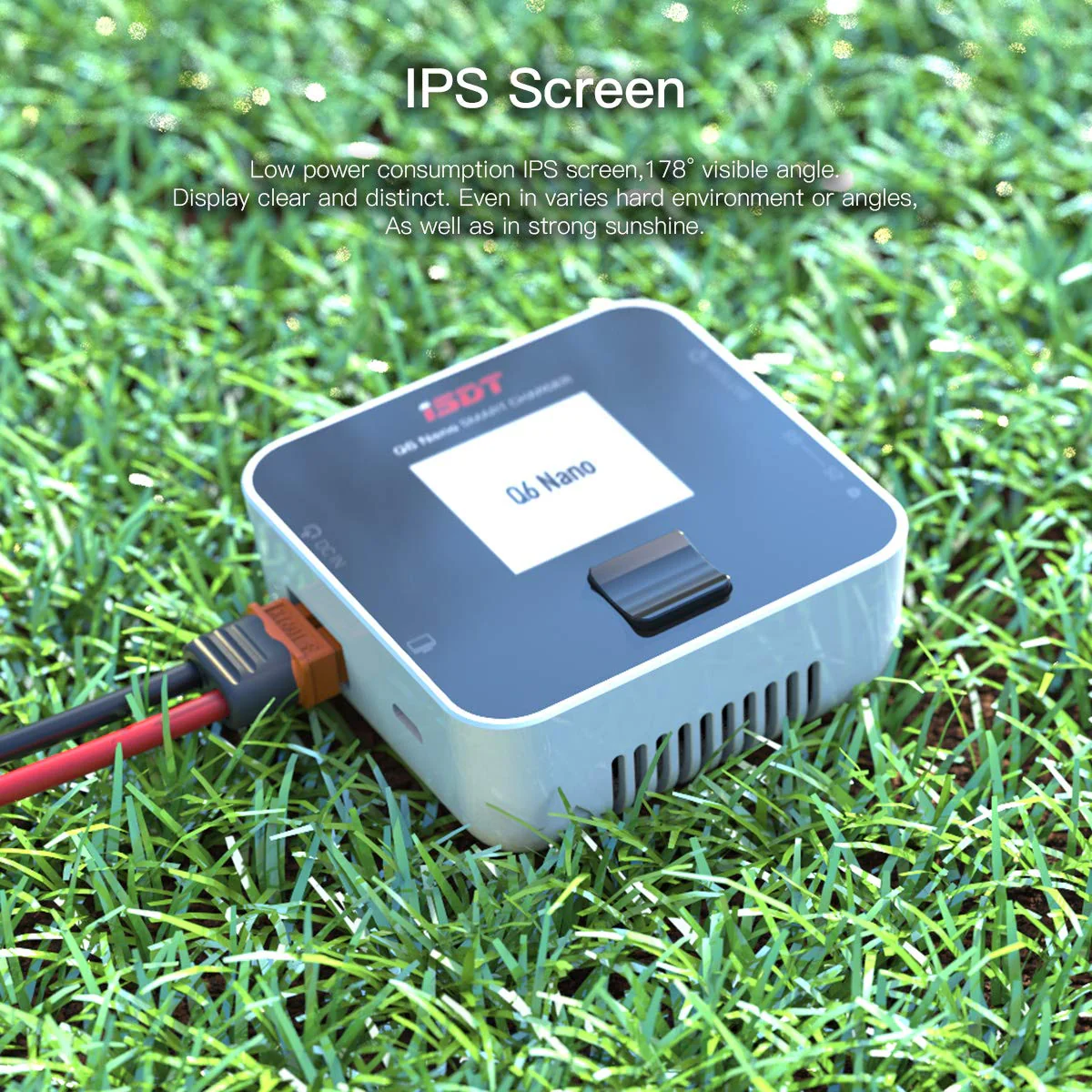

* ⚡【IPS Screen: Low power consumption】 The rc battery charger with a 1.5” IPS screen, auto-brightness adjustable, 178°visible angle, display clear and distinct even in various hard environments or angles as well as in strong sunshine, reduce light damage to user’s eyes.
* ⚡【ISDT charger with cooling fan】Advanced crafty cooling air duct, Active cross-flow cooling air duct design, initiative ball bearing cooling fan, with accurately designed aluminum alloy fins and Hi-Tech silicon heat conduct pad, built up a High-efficiency heat dissipation system.

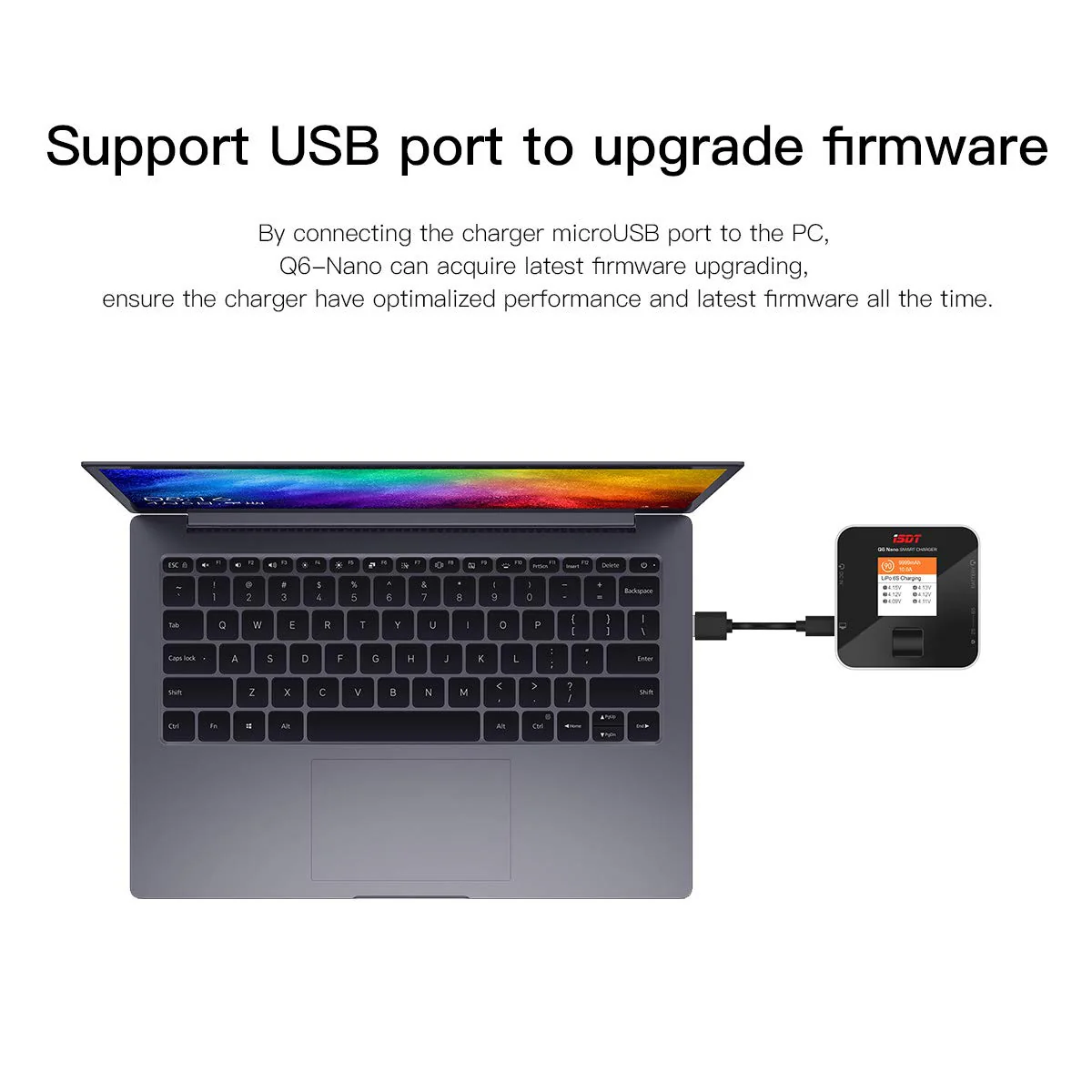

* ⚡【Upgradeable firmware, upgraded scOS 2.0】 By connecting the Q6 nano lithium battery charger micro USB port to the PC, all series can acquire the latest firmware upgrading, ensure the 6s lipo charger has optimized performance and latest firmware all the time.

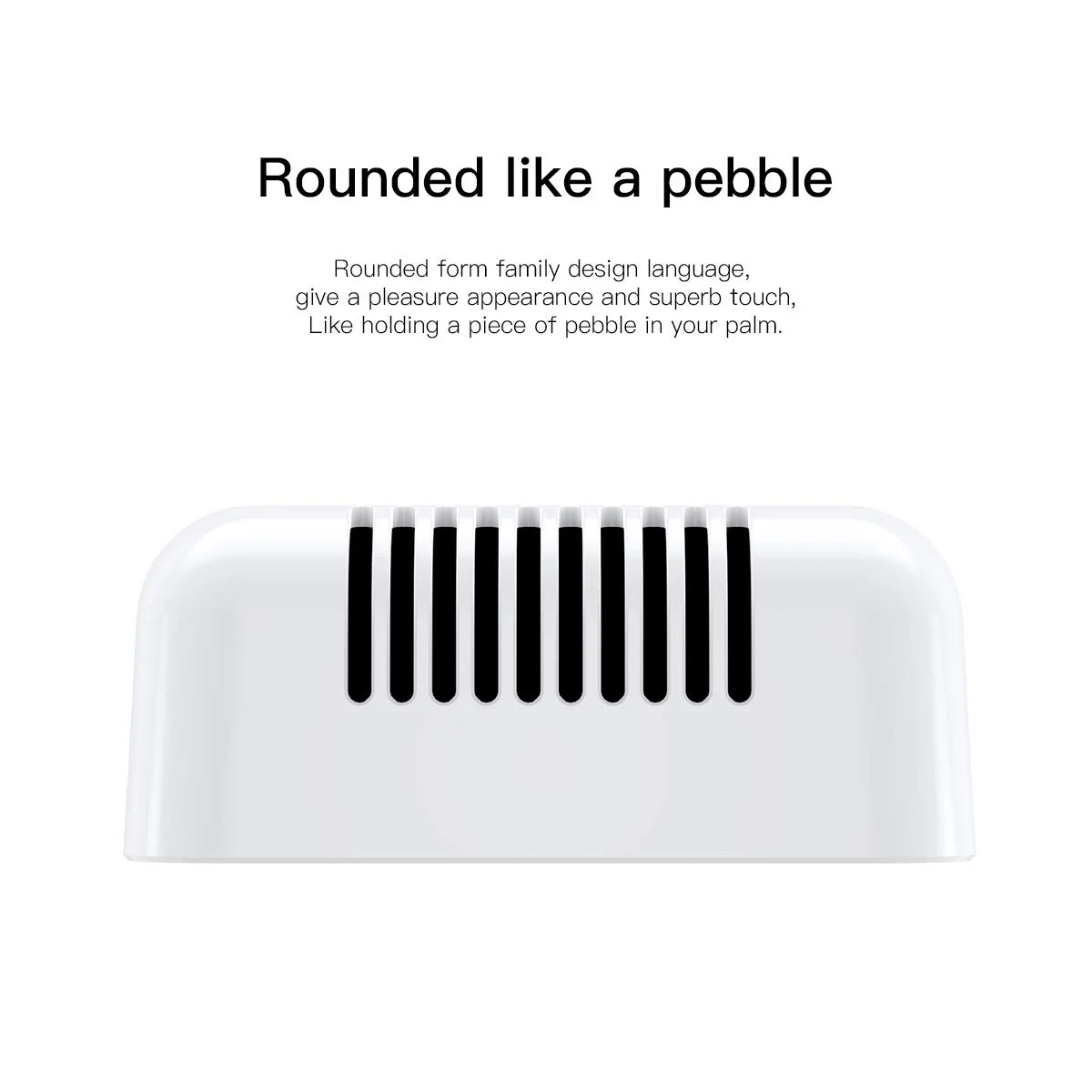

* ⚡【Rounded like a pebble】 The Circular shape of the family design language, give it a pleasant look and an excellent touch. Like holding a piece of pebble in the palm of your hand.
Specification
|
GENERAL
|
|
Product size
|
72x72x32mm120g
|
|
Product weight
|
120g
|
|
CHARGER
|
|
Input Voltage
|
DC 10-30V
|
|
Output voltage
|
DC 1-30V
|
|
Maximum input current
|
9A
|
|
Charge Current
|
0.1-8.0A
|
|
Discharge Current
|
0.1-1.0A
|
|
Max Charge Capacity
|
200W
|
|
Max Discharge Capacity
|
10W
|
|
Balancing Current
|
0.5A/Cell
|
|
Balance Cells
|
Max 2-6S
|
|
Supported Battery Type
|
LiFe, Lilon, LiPo, LiHv 1-6S;NiMh/Cd 1-16S
|
|
Display Screen
|
1.5'' 240x240 IPS LCD
|
|
Operating Temperature
|
0~40℃
|
|
Storage Temperature
|
-20-60℃
|
