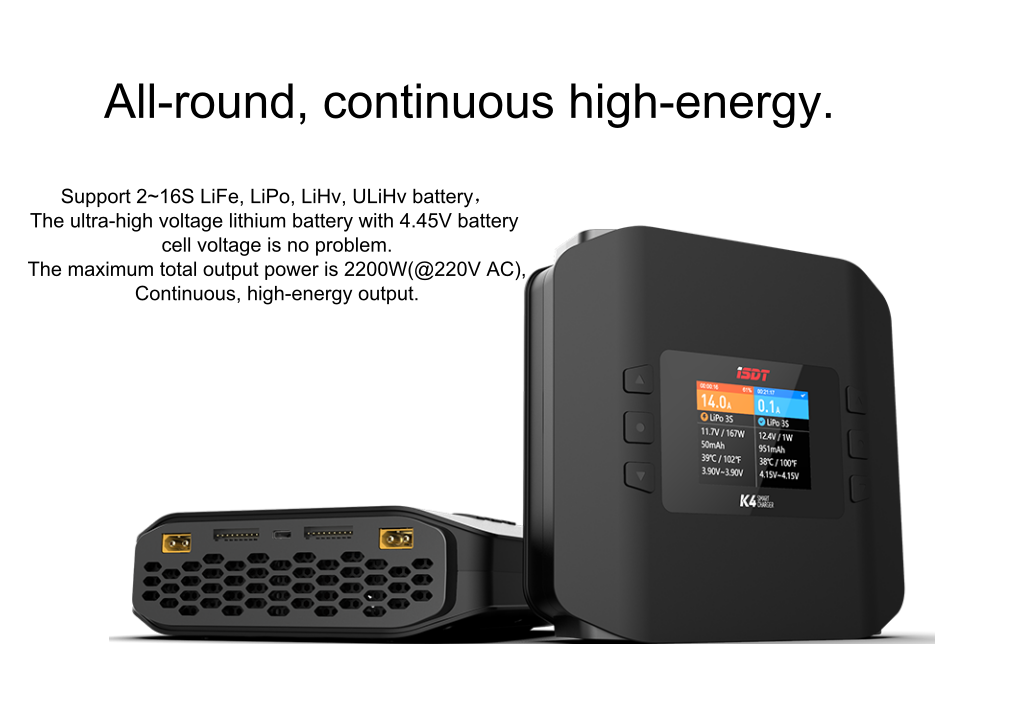

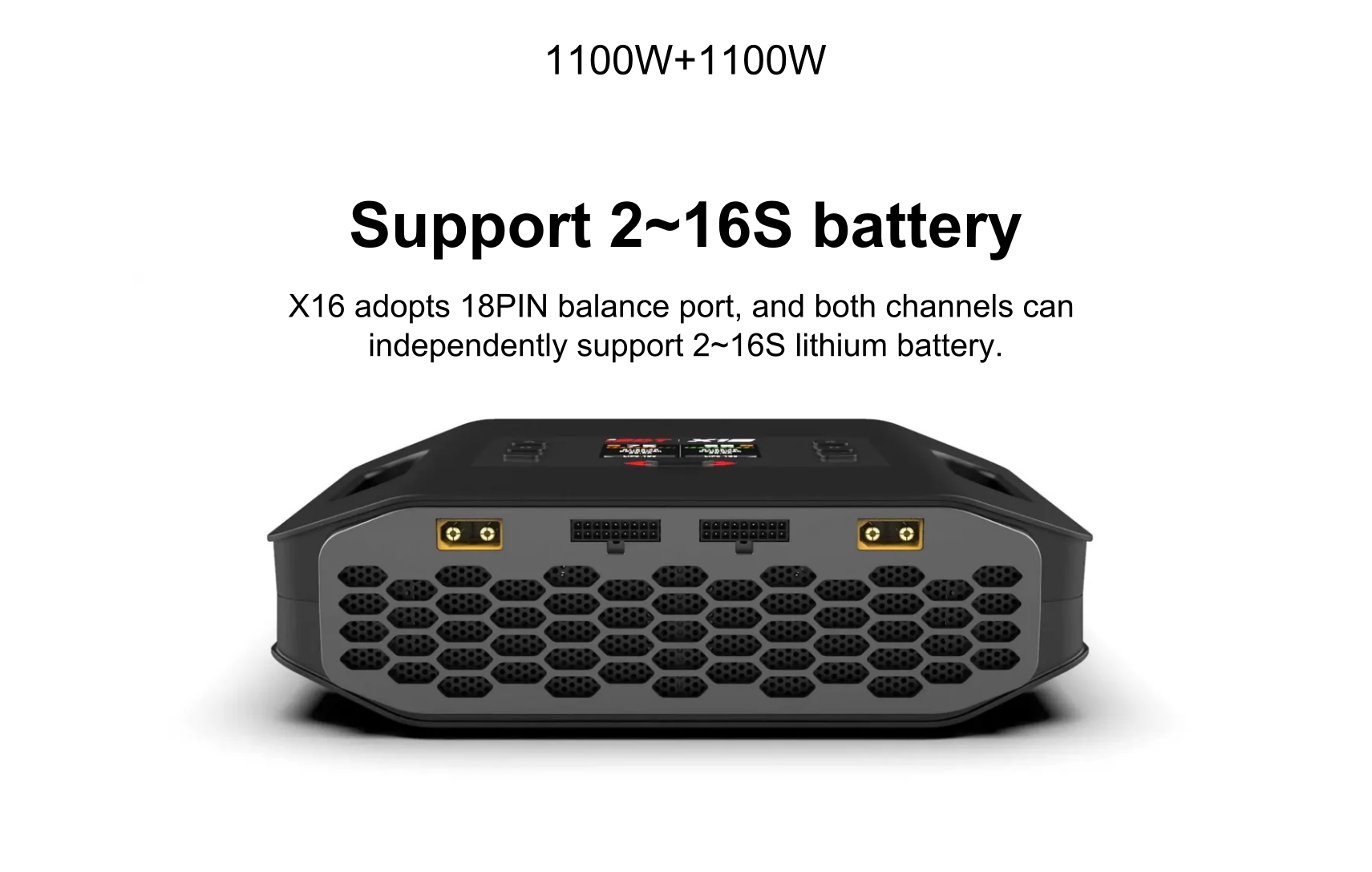

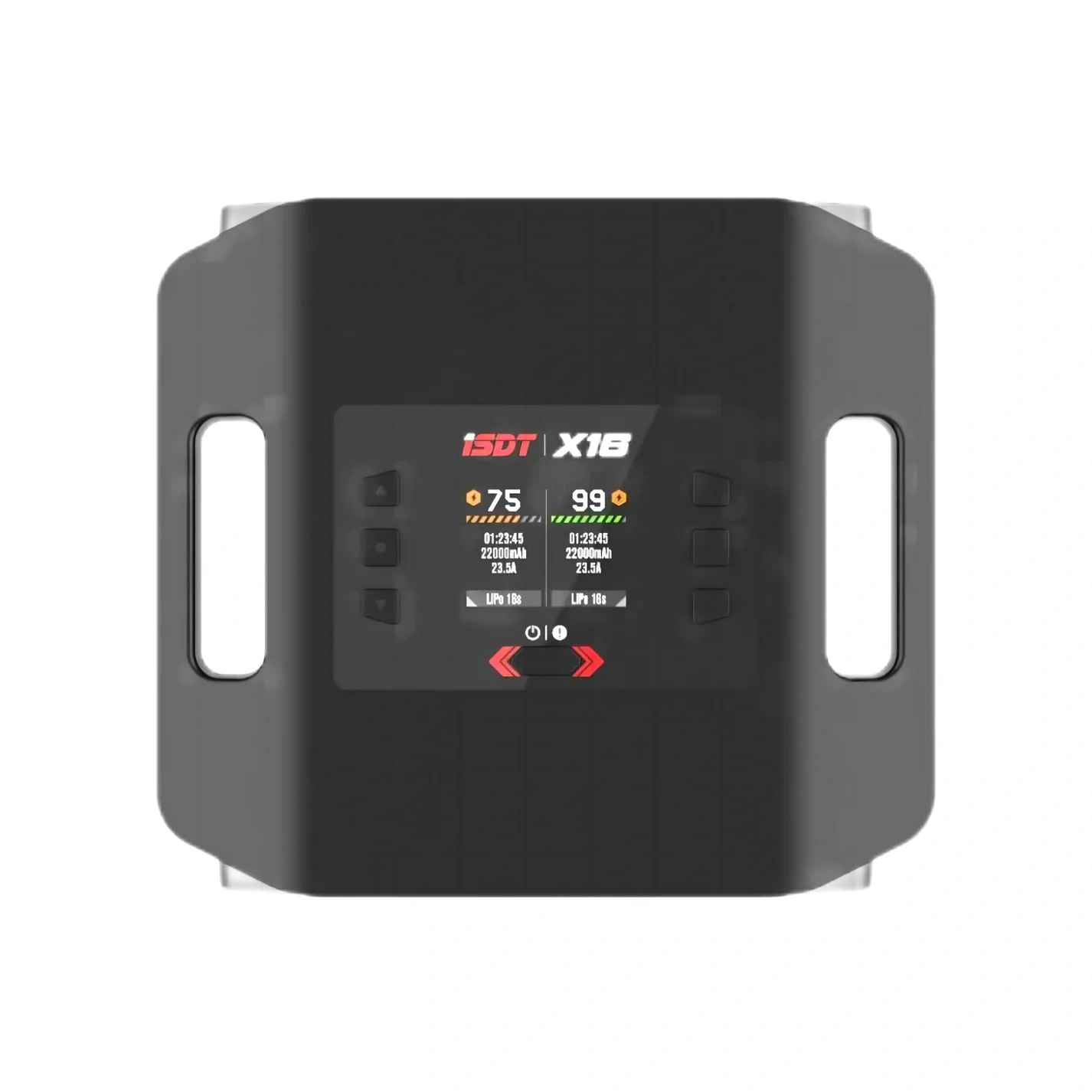

* 【High Power Multifunctional Lipo Charger】- Support 2~16S LiFe, LiPo, LiHv, ULiHv batteries，Ultra high voltage lithium battery with 4.45V battery cell voltage can charged easily. Dual-channel parallel charging, the maximum total output power is over 2200W.Support battery charge and discharge cycle (Max. discharging power: 50W × 2, Balance current: 1.5A/Cell), making your battery more durable.

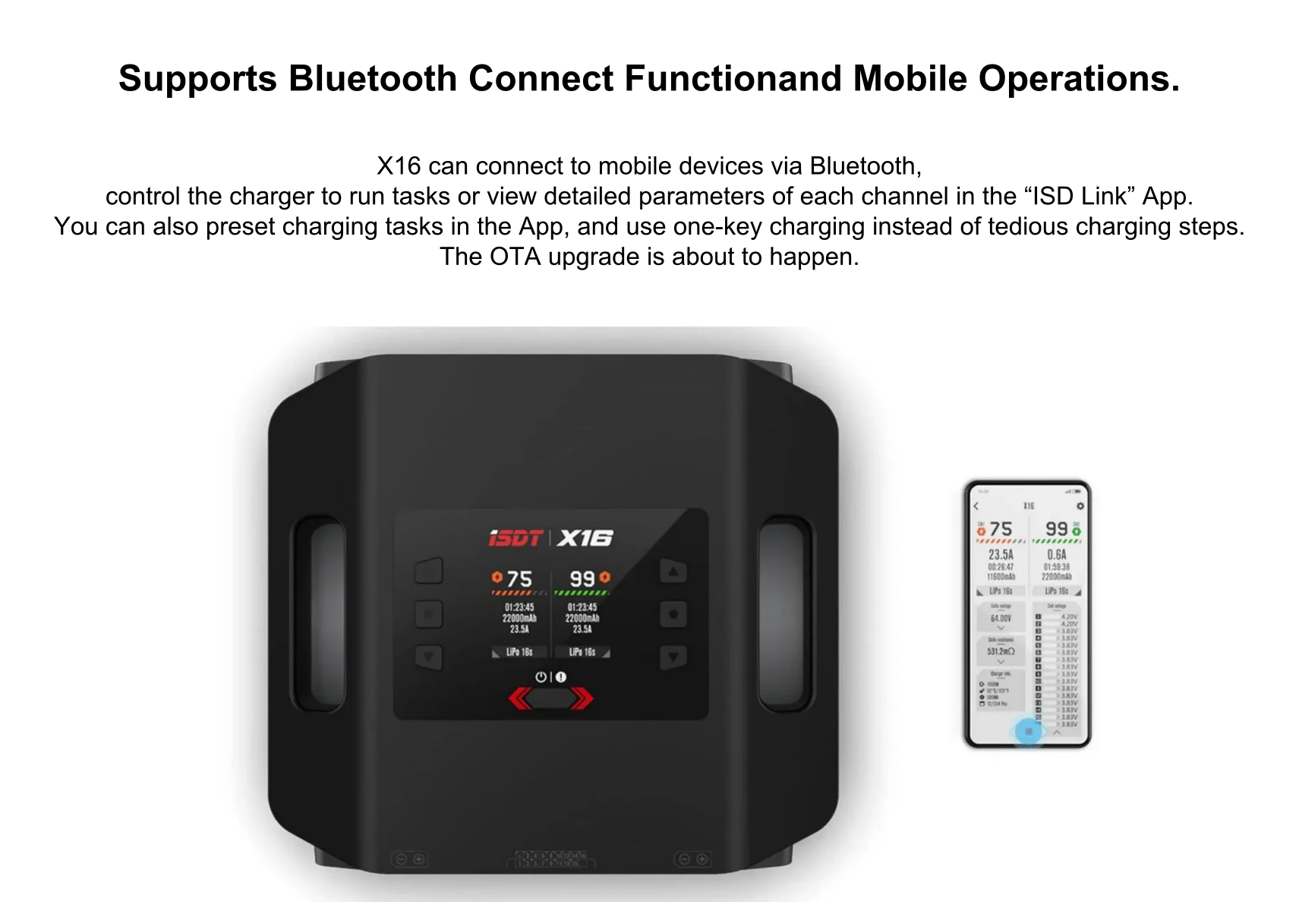

* 【Support Bluetooth connection function and mobile operation】 - X16 can connect to mobile devices via Bluetooth. Control the charger to perform tasks or view detailed parameters of each channel in “ISD Link” app. You can also preset charging tasks in the app and use one button charging instead of tedious charging steps. The OTA upgrade is easily.

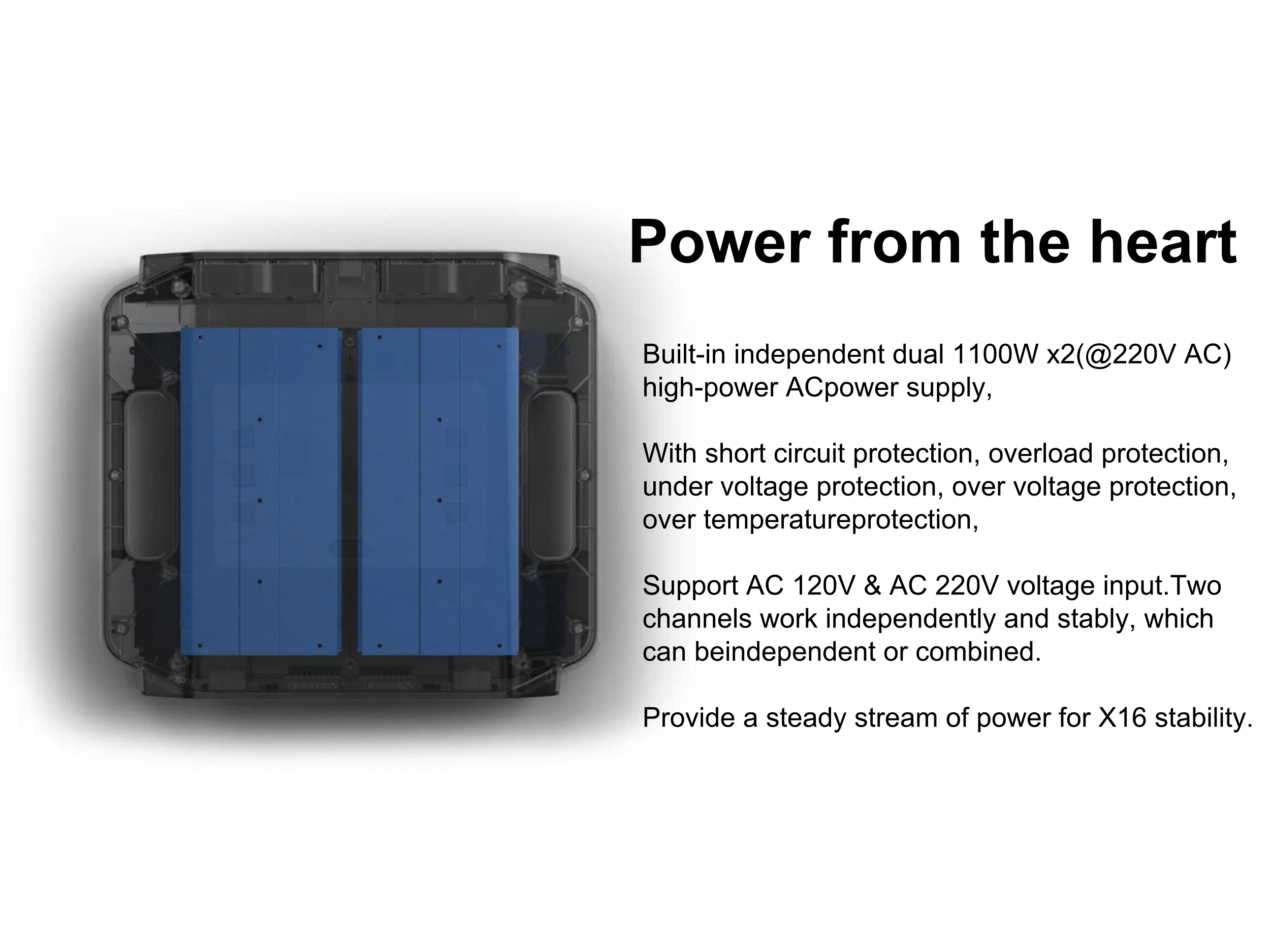

* 【Safe and Stable】- Built-in 1200W high-power independent dual power supply, with short-circuit protection, overload protection, under-voltage protection, over-voltage protection, and over-temperature protection. Supports AC 120V & AC 220V voltage input. Two channels work independently and stably, which can be independent or combined. Provide constant current for X16 stability.

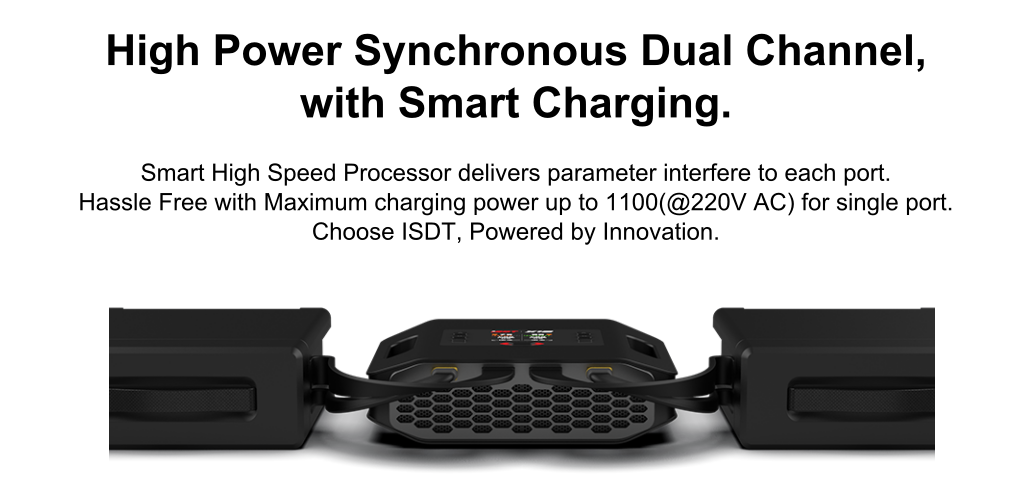

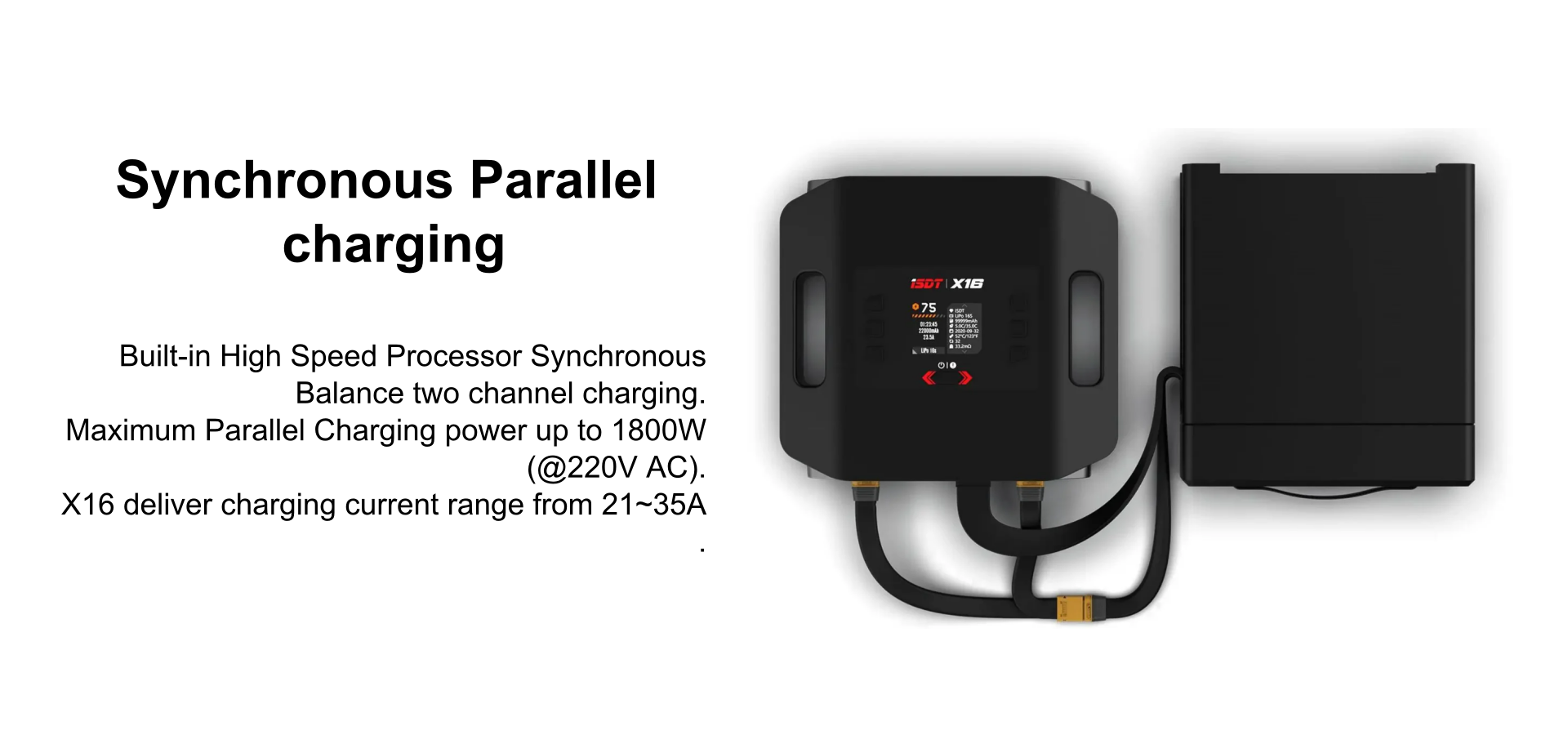

* 【Synchronous Parallel Charging】Built-in High Speed Processor Synchronous. Balance two-channel charging. Maximum Parallel Charging power up to 1800W(@220V AC),let you really experience fast charging (X16 deliver charging current range from 21~35A).

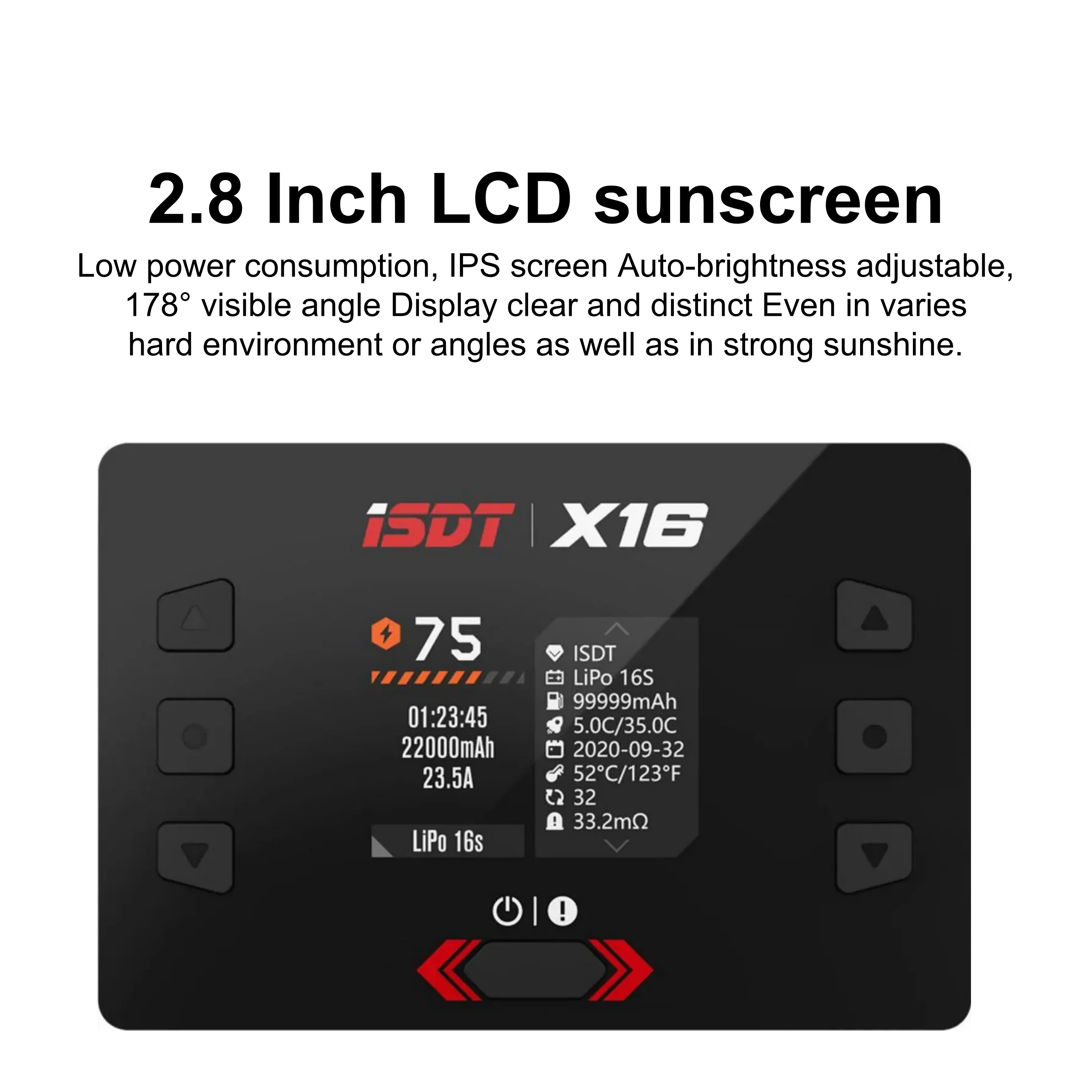

* 【2.8 Inch LCD Sunscreen】Low power consumption, IPS screen, Auto-brightness adjustable, 178° visible angle. Display clear and distinct even in various hard environments or angles as well as in strong sunshine.
|
GENERAL
|
|
Dimension:
|
276×246×82mm
|
|
Weight:
|
About 3.5kg
|
|
CHARGER
|
|
Input voltage:
|
AC 100~240V
|
|
Output voltage:
|
DC 10~72V
|
|
Charging current:
|
1.0~20.0A ×2
|
|
Discharging current:
|
0.5~3.0A ×2
|
|
Max. charging power:
|
1100W ×2(@220V AC)
800W x2(@110V AC)
|
|
Max. discharging power:
|
50W ×2
|
|
Balance current:
|
1.5A/Cell
|
|
Supported battery types and cell count:
|
LiFe，LiPo，LiHv，ULiHv (2~16S)
|
|
Abnormal voltage alarm:
|
Support
|
|
Incorrect cell count setting alarm:
|
Support
|
|
Working temperature:
|
0℃~40℃
|
|
Storage temperature:
|
-20℃~60℃
|
IN THE BOX
1 x ISDT X16 Lipo Charger
