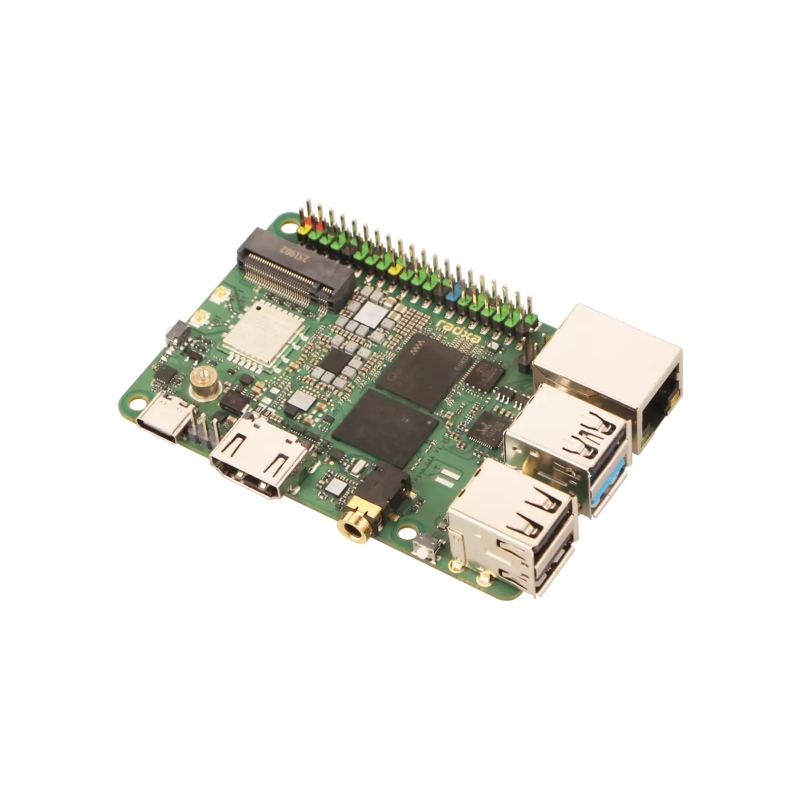

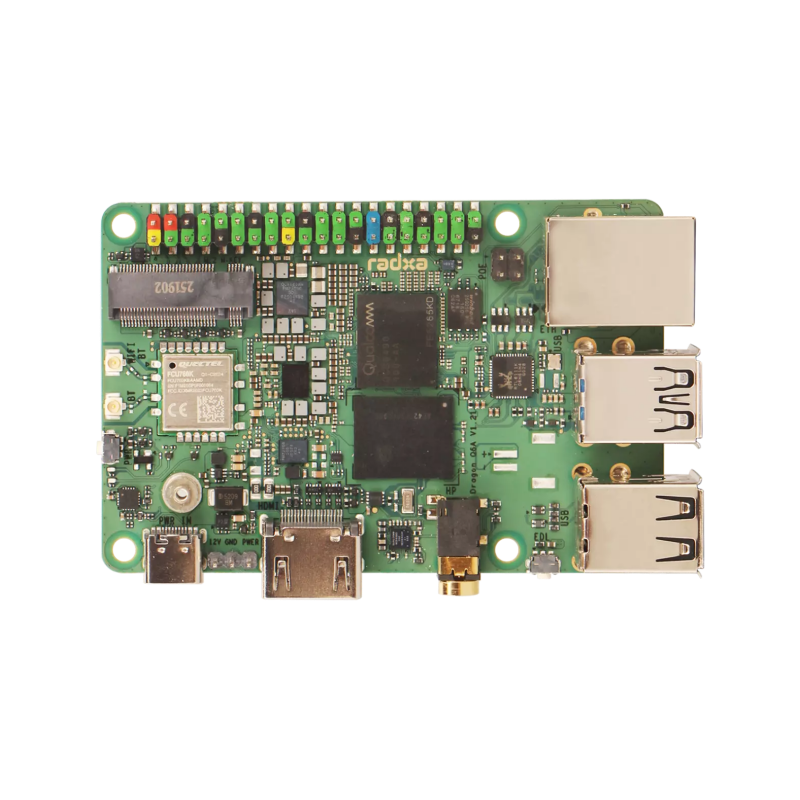

Radxa Dragon Q6A Single Board Computer

SKU: Radxa Dragon Q6A 8GB
  • Qualcomm QCS6490 SoC: The Qualcomm QCS6490 SoC provides powerful processing capabilities, making it suitable for demanding applications such as AI and machine learning.

  • 12 TOPS AI Compute: With a total AI compute performance of 12 TOPS, this board can handle complex AI workloads, enhancing its suitability for advanced development projects.

  • LPDDR5 RAM: The LPDDR5 RAM at 5500MT/s ensures fast data access and high-speed performance, which is crucial for efficient computing and multitasking.

  • M.2 M Key PCIe Gen3 x2: Support for M.2 M Key with PCIe Gen3 x2 allows for the addition of high-speed NVMe SSDs, providing enhanced storage and data transfer capabilities.

0.0 (0 Reviews)
0 Sold
$0.00 $180.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
1/1
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Radxa Dragon Q6A Single Board Computer
  • Description

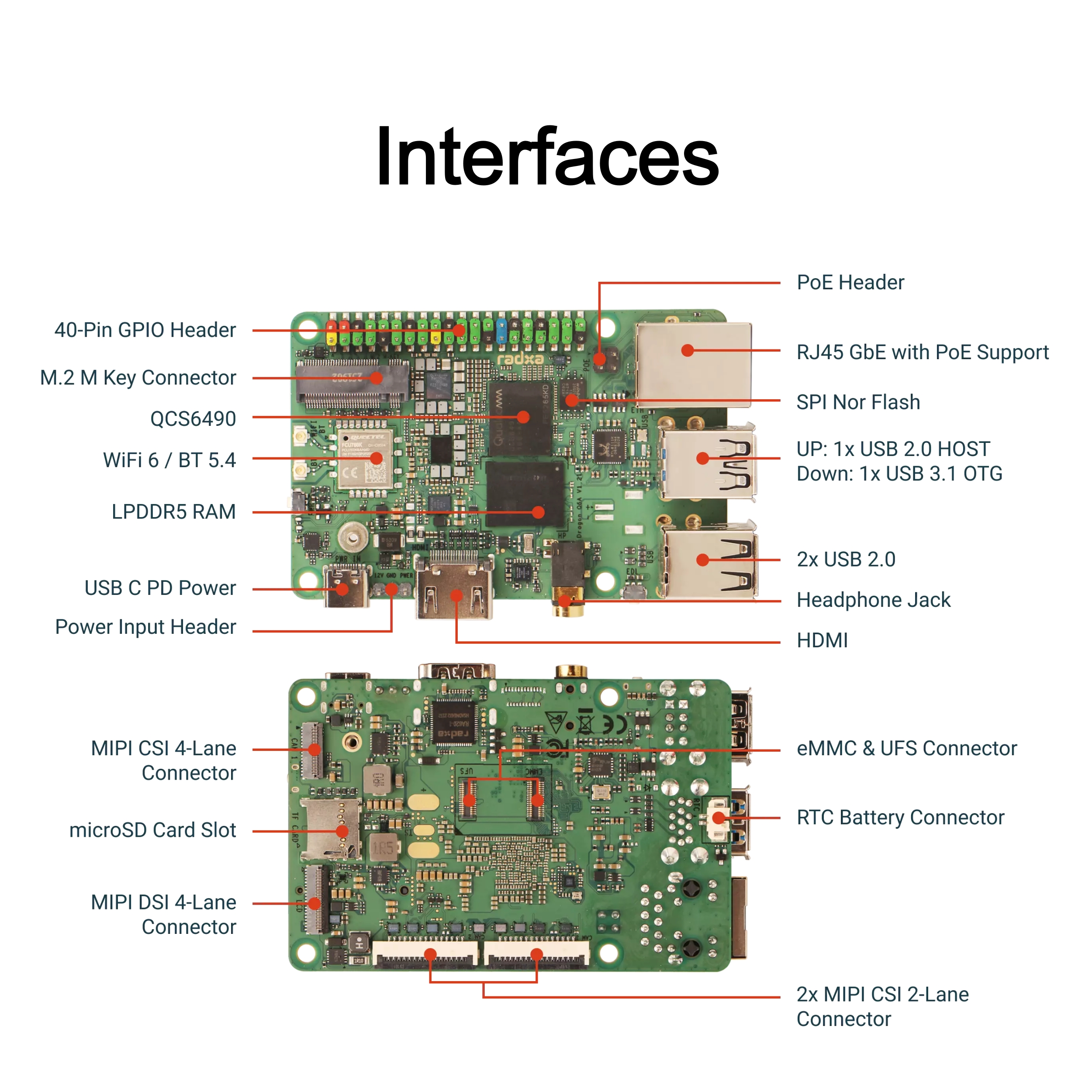

SoC
Qualcomm® QCS6490

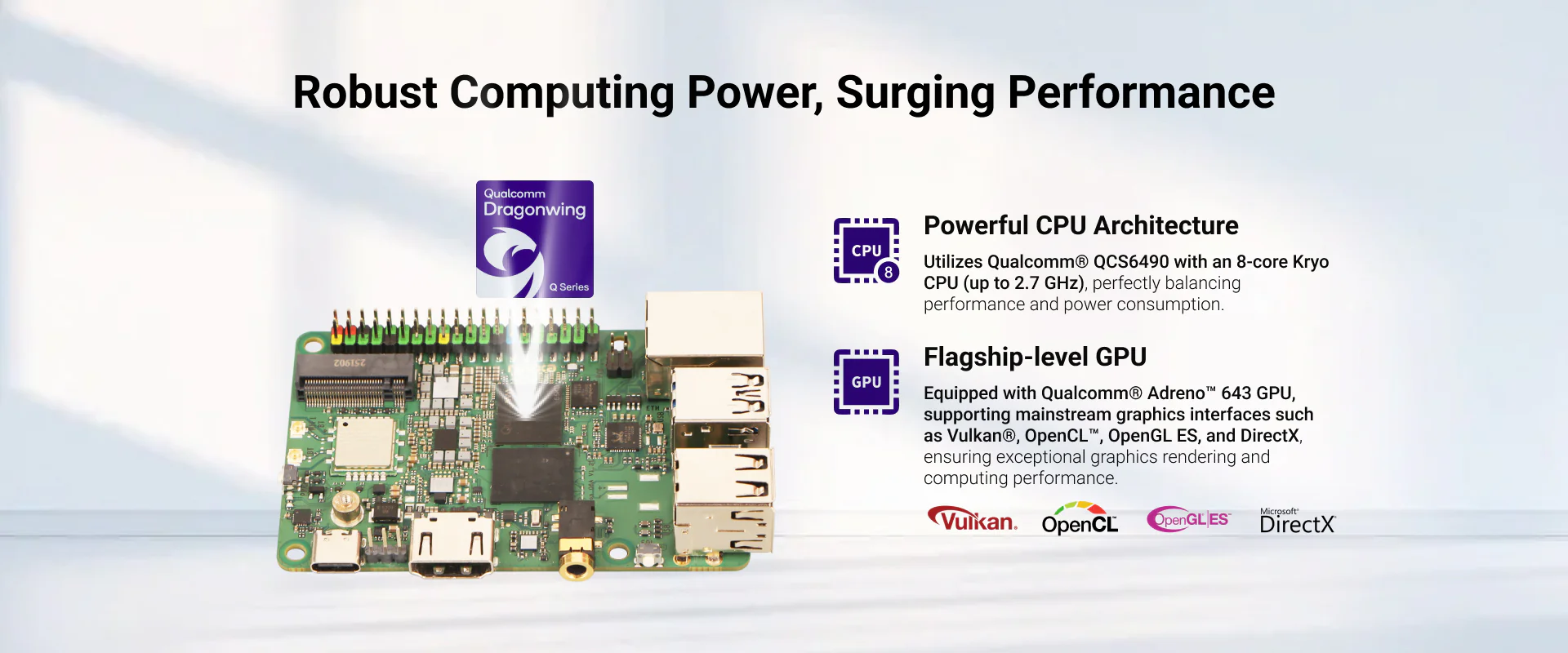

CPU
1× Kryo Prime @ 2.7GHz
3× Kryo Gold @ 2.4GHz
4× Kryo Silver @ 1.9GHz
GPU
Qualcomm® Adreno 643
- OpenGL® ES 3.2, 2.0, 1.1
- Vulkan® 1.1 / 1.2 / 1.3
- OpenCL™ 2.2
- DirectX Feature Level 12
AI
Total AI compute performance: 12 TOPS
Hexagon DSP with dual HVX
Hexagon Tensor Accelerator
Hexagon Coprocessor 2.0
RAM
4GB / 6GB / 8GB / 12GB / 16GB LPDDR5 @ 5500MT/s

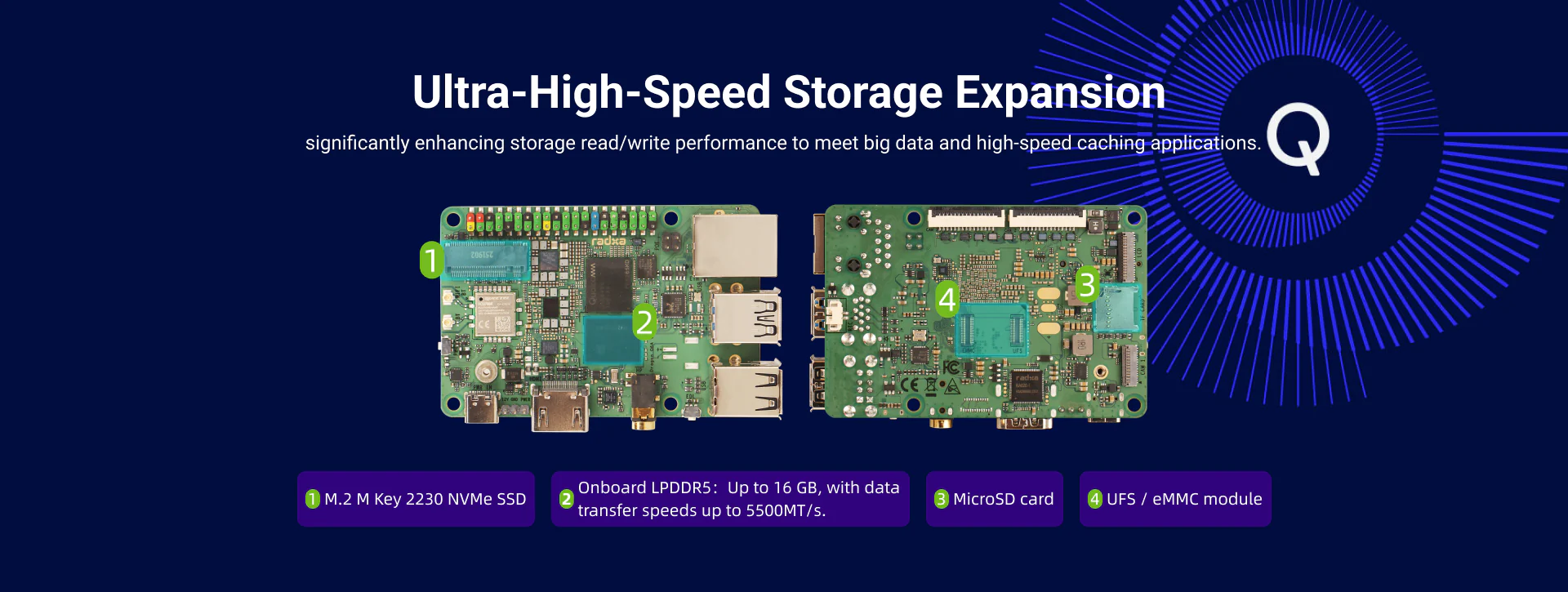

Storage
SPI Flash (bootloader)
eMMC Module: 16 / 32 / 64 GB
UFS Module: 128 / 256 / 512 GB
MicroSD card slot ×1
Display
HDMI 2.0: up to 4K@30Hz
MIPI DSI: 1× 4-lane

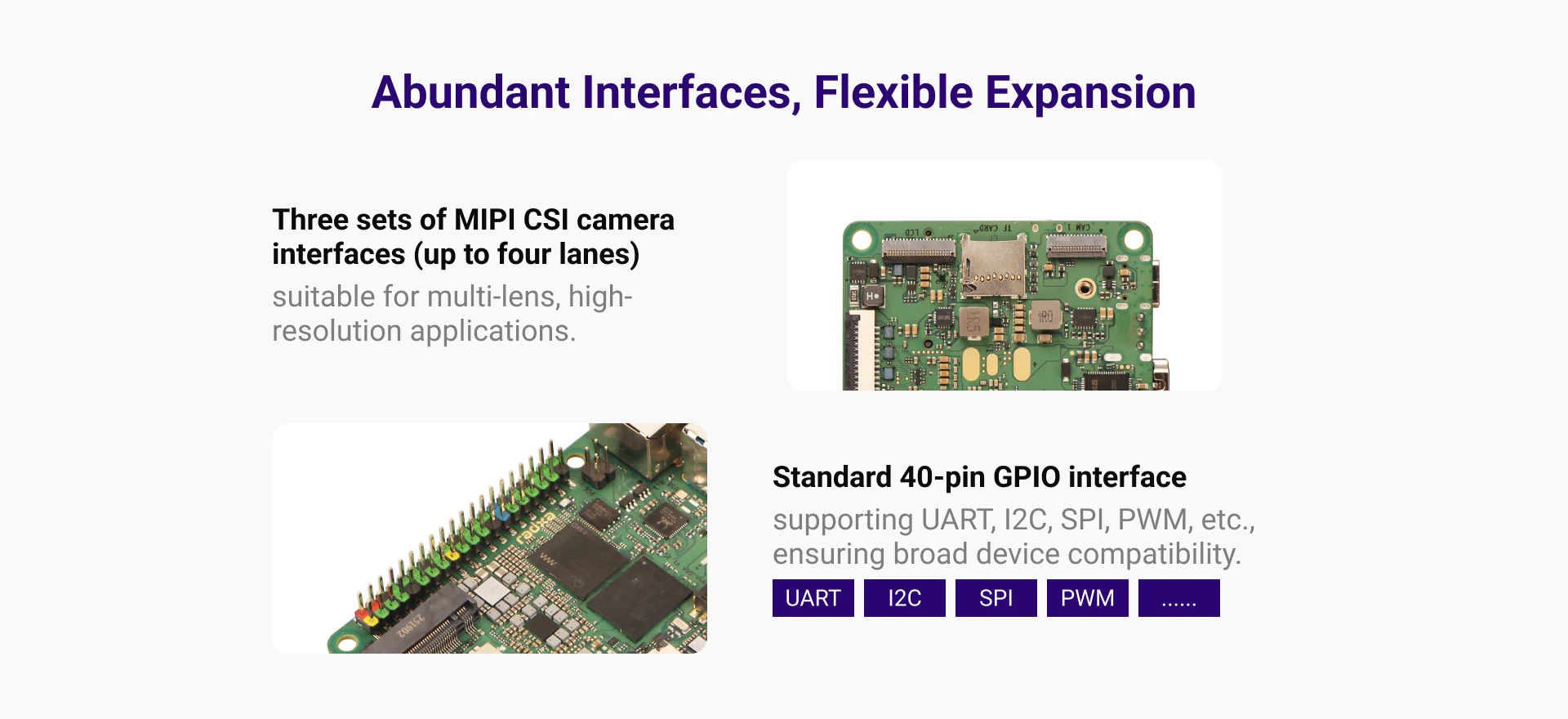

Camera
MIPI CSI: 1× 4-lane (split to 2× 2-lane)
MIPI CSI: 2× 2-lane
USB
1× USB 3.1 Type-A OTG
3x USB 2.0 Type-A HOST
1× USB 2.0 Type-C Power

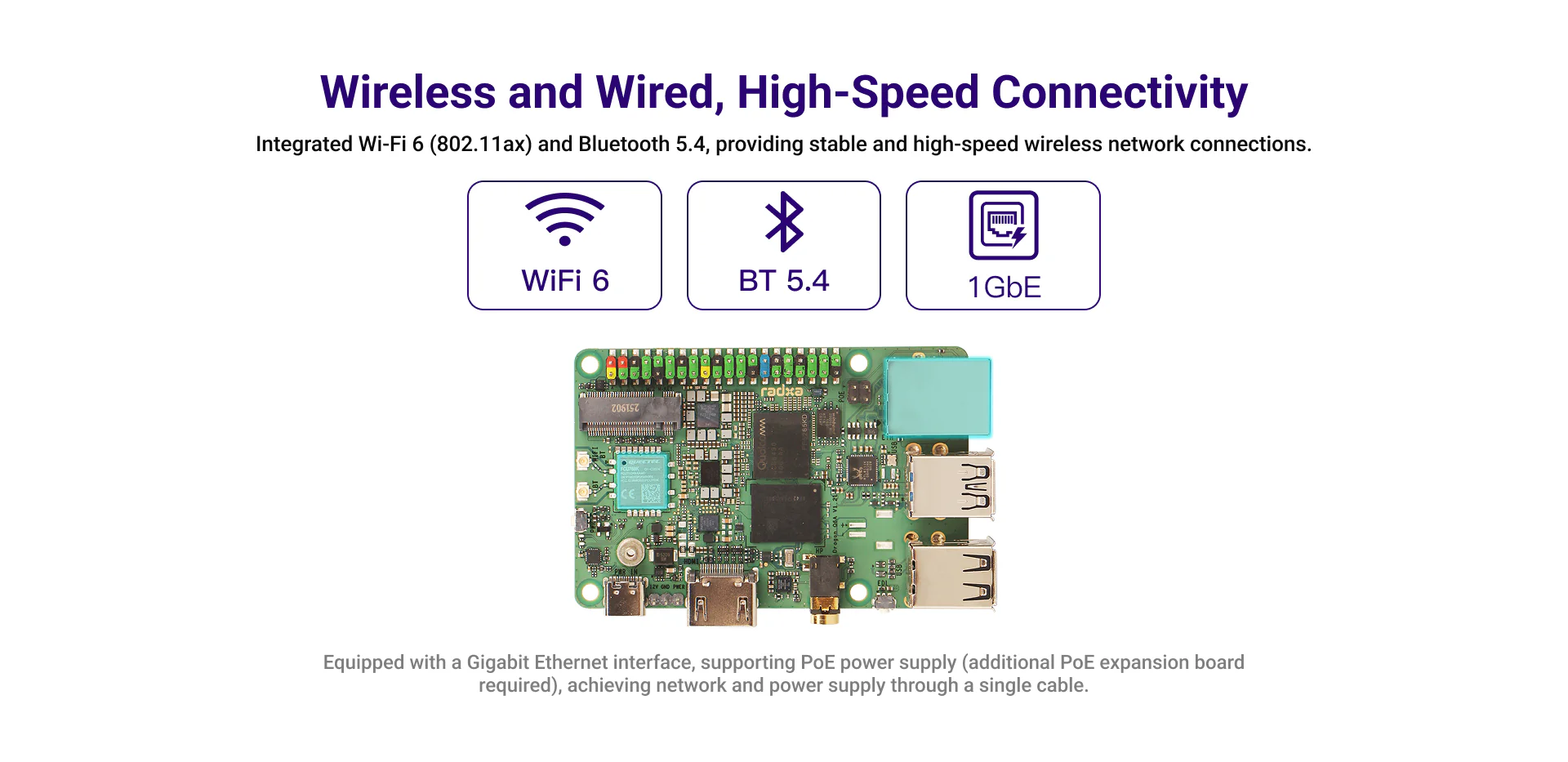

Ethernet
1× Gigabit Ethernet with PoE support (via optional HAT)
Wireless
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth® 5.4 with BLE
Quectel FCU760K Module (AIC8800D80 chipset)
2× external antenna connectors
Expansion
M.2 M Key: PCIe Gen3 x2 (supports 2230 NVMe SSDs)
Not compatible with SATA
40-pin 2.54mm GPIO header
- UART / I2C / SPI / GPIO / PWM
- 2× 5V in/out, 2× 3.3V out
Audio
3.5mm audio jack
Power
12V via USB Type-C or Power input header
Recommended: ≥18W light load, ≥24W full load
Software
Supports Radxa OS, Ubuntu Linux, Qualcomm Yocto Linux, Armbian, Arch, Deepin, Fedora, Windows
Hardware control libraries available
Dimensions
85 mm x 56 mm
