Home > Parts > Radxa > Radxa Rock 5C(Lite) RK3588S2/RK3582 8-Core CPU Single Board Computer

1/1

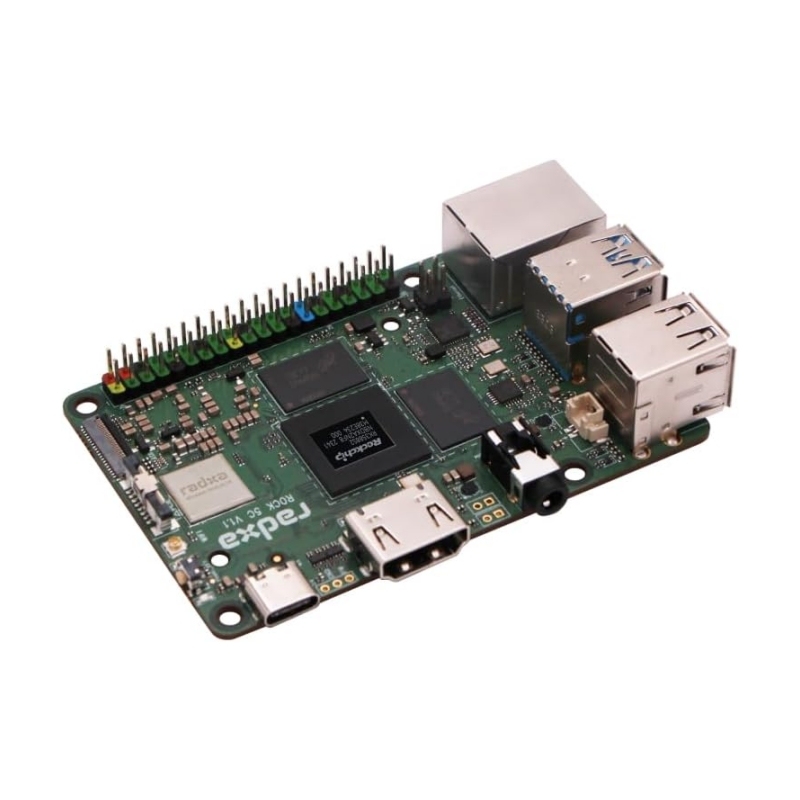

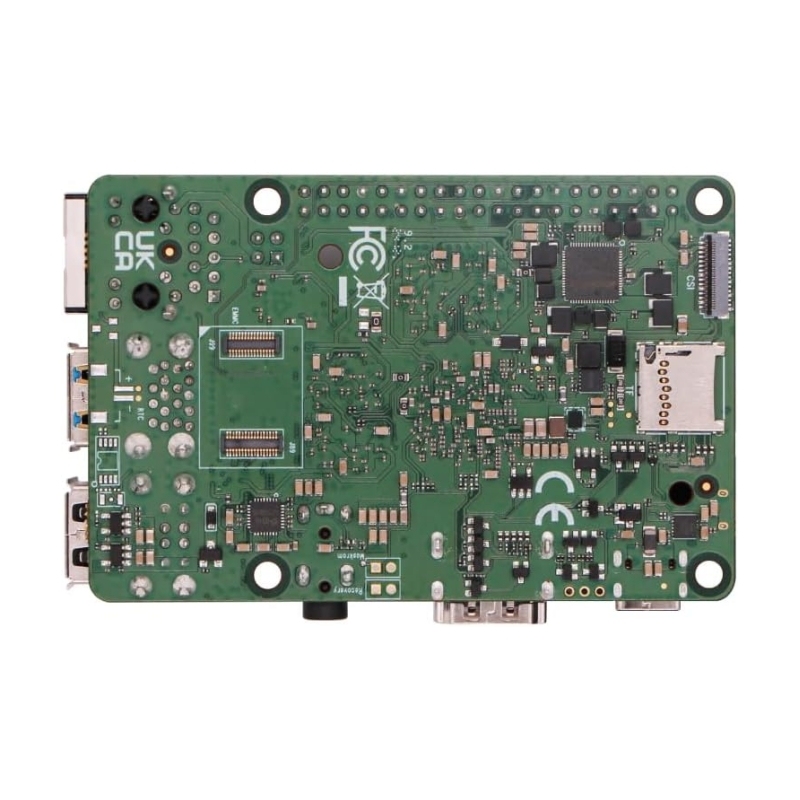

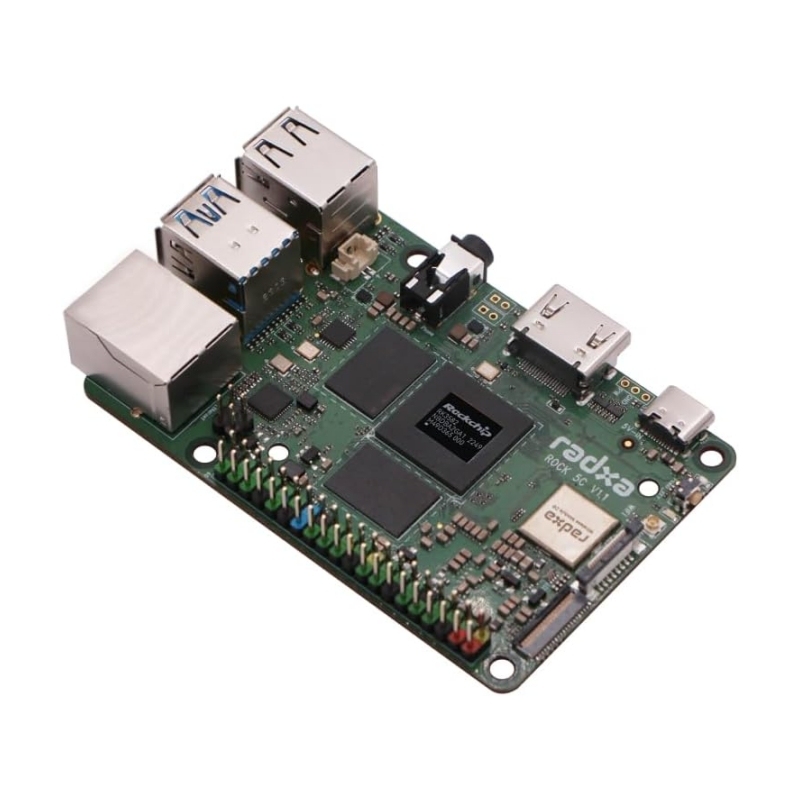

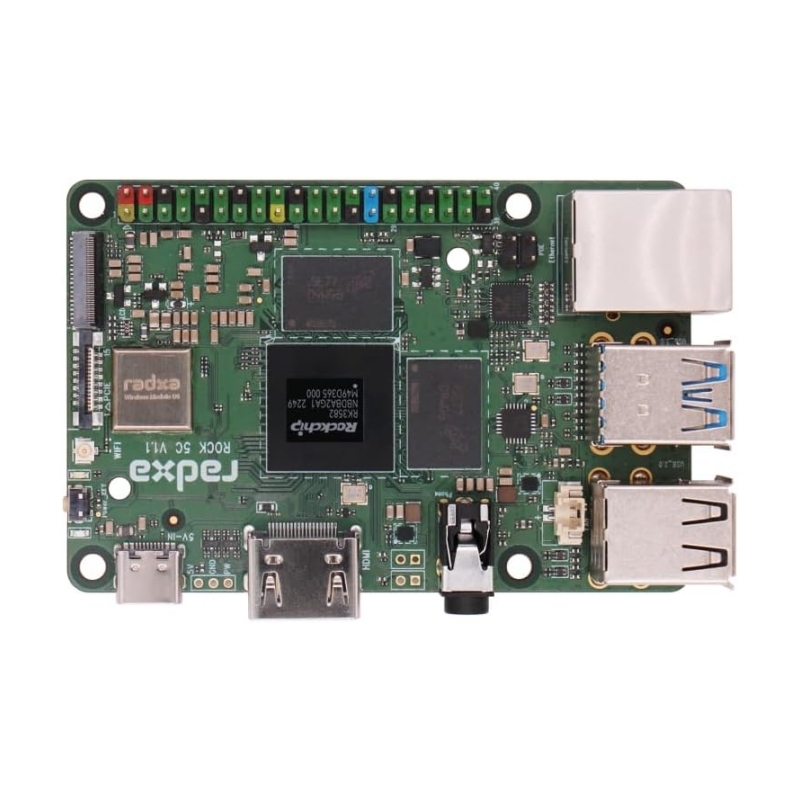

Radxa Rock 5C(Lite) RK3588S2/RK3582 8-Core CPU Single Board Computer

SKU: Radxa ROCK 5C(Lite)

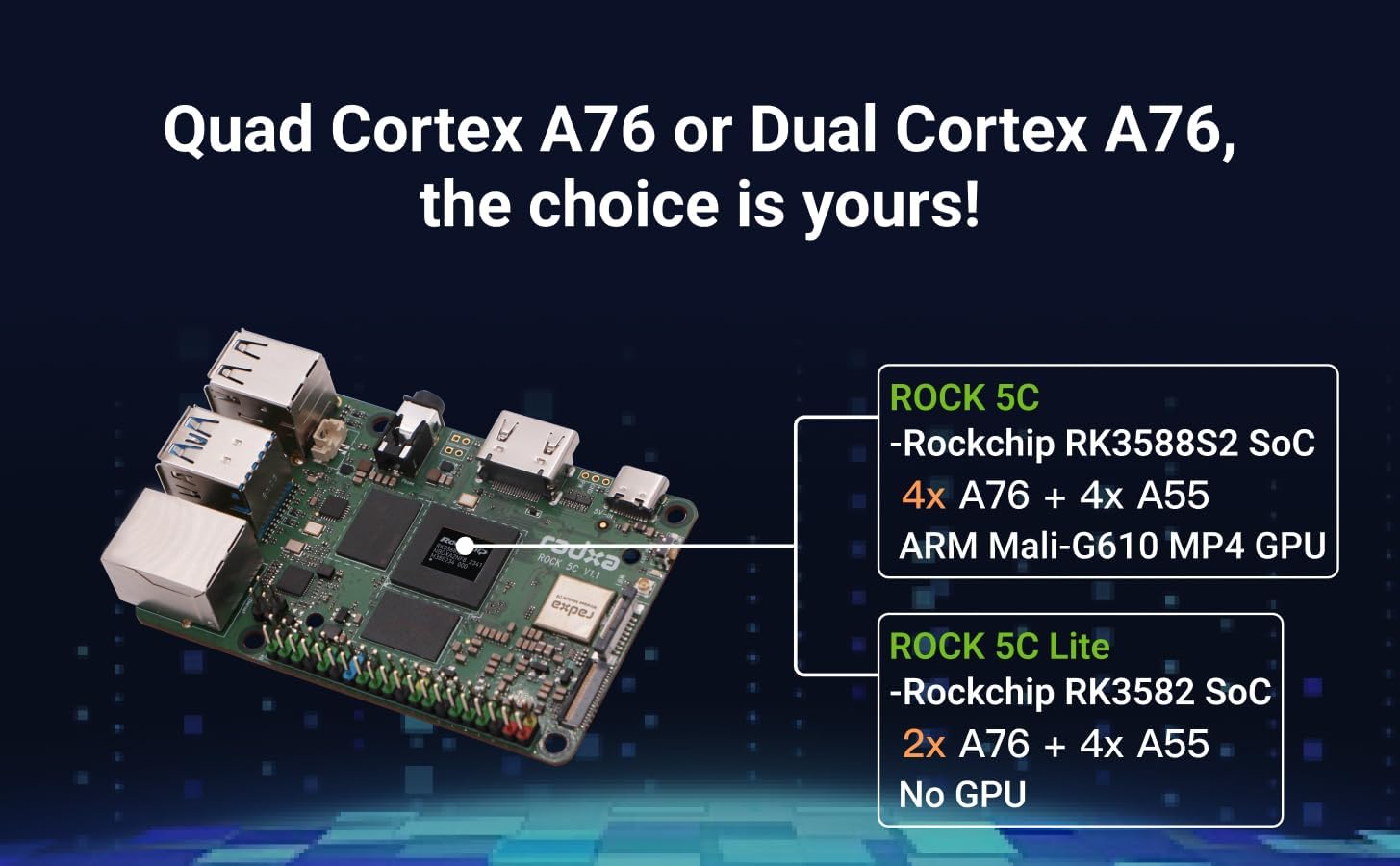

8-Core CPU: The 8-core CPU, featuring a quad Cortex-A76 and a quad Cortex-A55, provides high performance and efficient power management, suitable for demanding applications.
8K Output: Support for 8K output at 60fps ensures high-resolution video playback, making it ideal for advanced multimedia and display applications.

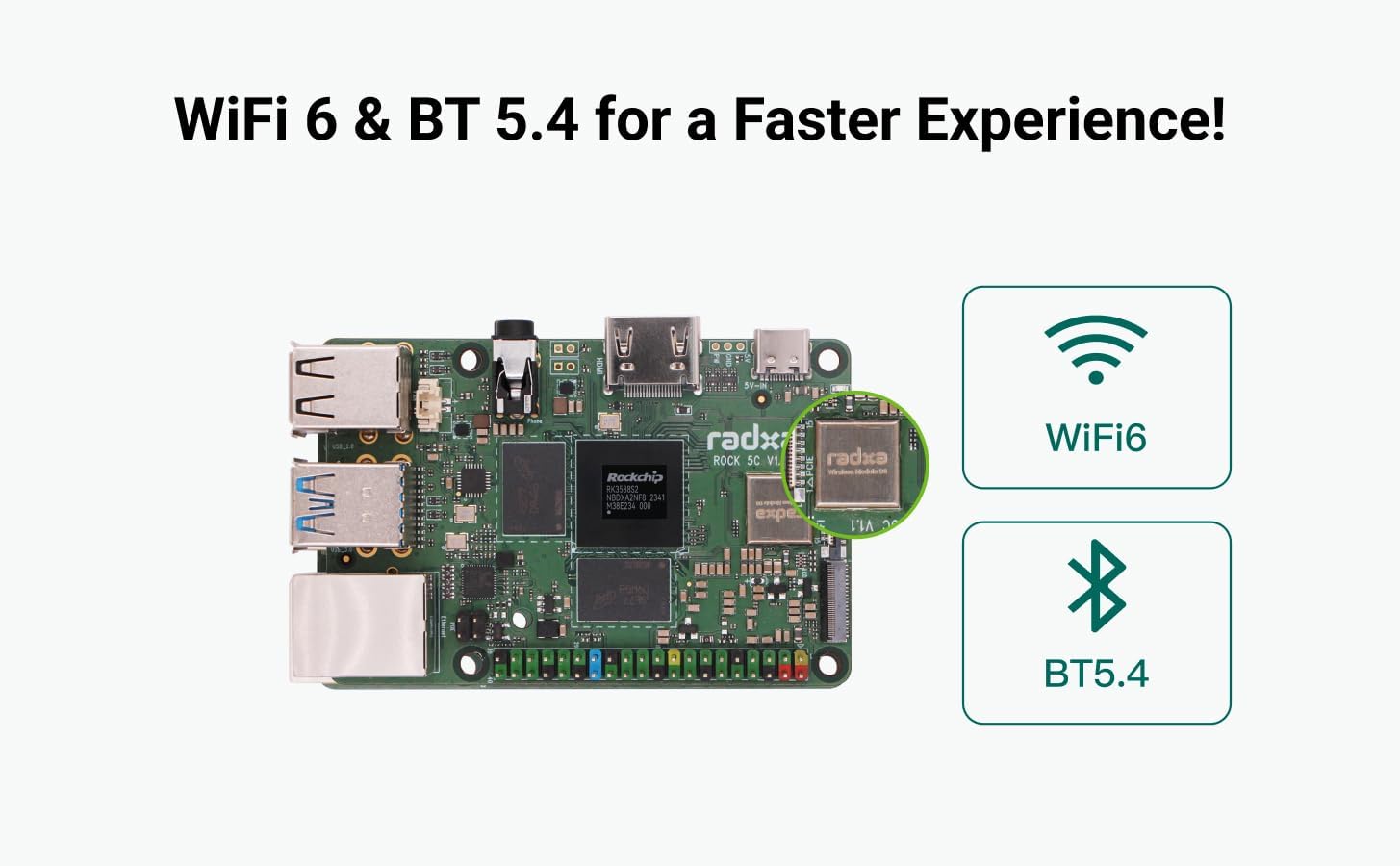

WiFi 6 Support: WiFi 6 support offers faster and more reliable wireless connectivity, enhancing data transfer rates and network stability in various environments.

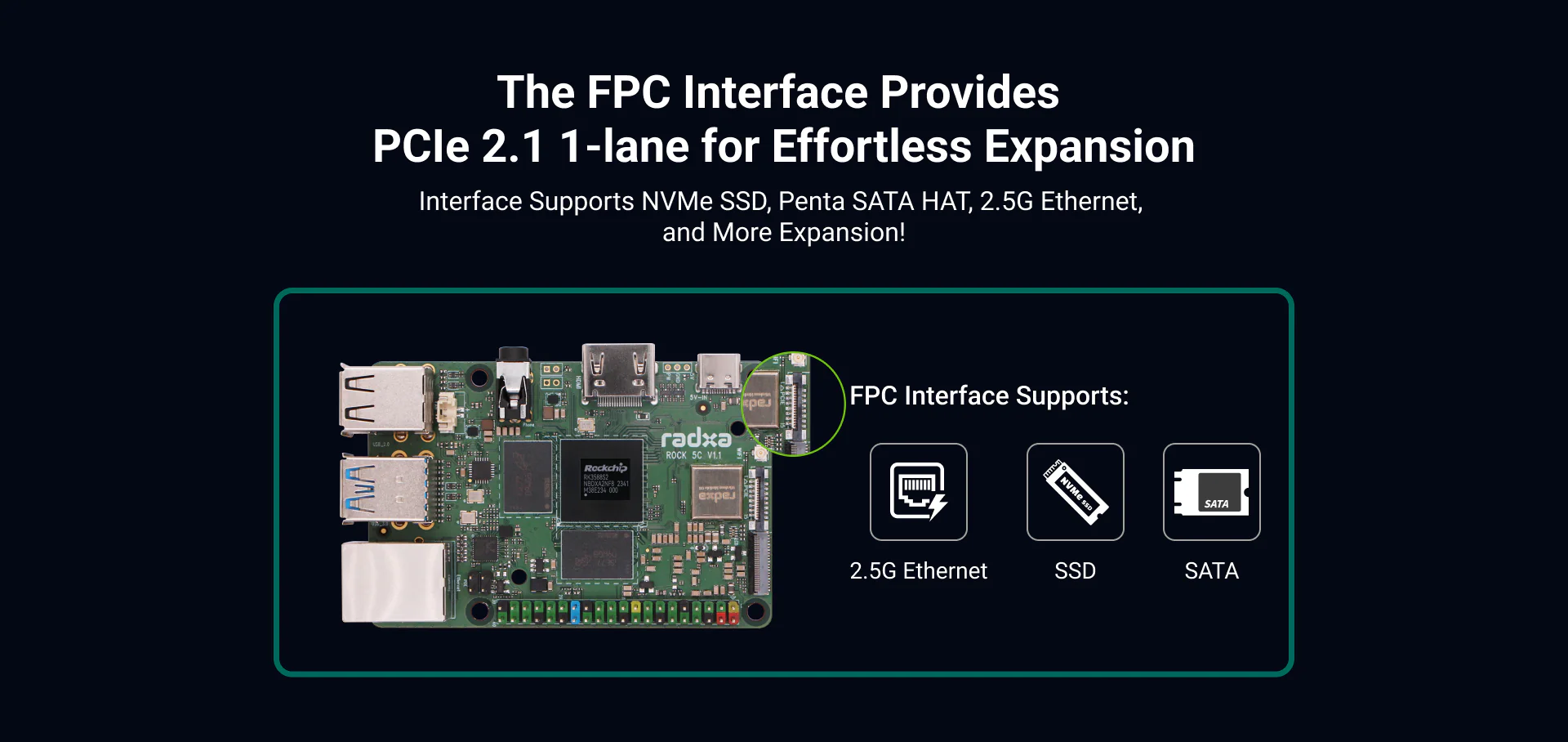

PCIe 2.1 Interface: The PCIe 2.1 interface allows for high-speed data transfer and expansion, enabling the connection of additional peripherals and storage solutions.

0.0 (0 Reviews)

0 Sold

$107.46

Received successfully

Coupon Code

Description

Specification

Model	Radxa ROCK 5C(Lite) RK3588S2/RK3582
CPU	Quad Cortex®‑A76 @ 2.2~2.4GHz and a quad Cortex®‑A55 @ 1.8GHz based on Arm® DynamIQ™ confguration
GPU	Arm Mali™ G610MC4 GPU supporting: – H.265 and VP9 decoder by 8K@60fps – H.264 decoder by 8K@30fps – AV1 decoder by 4K@60fps – H.264 and H.265 encoder by 8K@30fps
NPU	NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 6TOPs
Display HDMI and MIPI ISP	Dual display support via HDMI and MIPI DSI H.265/VP9 decoder up to 8K@60fps H.264 multivideo decoder up to 8K@30fps
RAM	64-bit LPDDR4x RAM with 2, 4, 8, 16 or 32GB
Storage	・1x eMMC Connector ・ 1x Micro SD Card Slot ・ no SPI Flash

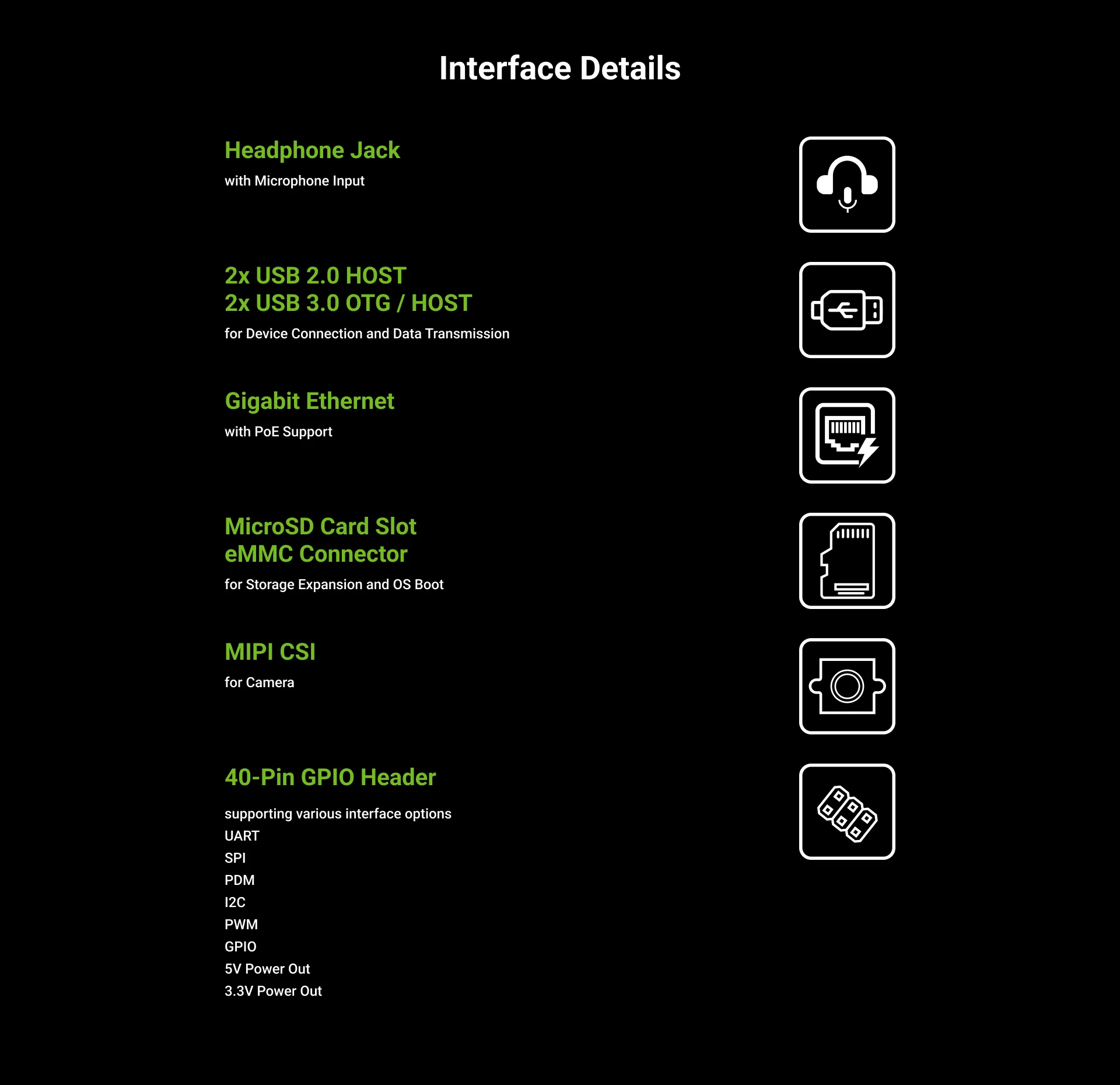

Interfaces	・ 1x USB Type‑C™ port for 5V fixed power ・ 1x Micro SD Card ・ 1x HDMI 2.1 port (up to 8K) ・ 1x MIPI DSI (up to 2K) ・ 2x USB2.0 Type A HOST ports, 1x USB3 Type A HOST port, 1x USB3.0 Type A OTG/ HOST port ・ 1x Gigabit Ethernet port (supports PoE with add‑on PoE HAT) ・ 1x M.2 E Key with PCIe 2.1 one‑lane, SATA, USB 2.0 support ・ 1x eMMC module connector for eMMC 5.1 support ・ 1x Camera port (1x four‑lane MIPI CSI or 2x two‑lane MIPI CSI) ・ 1x PCIe FPC connector with PCIe 2.1 1-lane ・ Miscellaneous – 1x 2-pin fan connector – 1x Power button – 1x Power LED, 1x User LED ・40-pin 0.1” (2.54mm) header supporting a wide range of interface options: – Up to 5 x UART (2x with ﬂow control) – Up to 3 x SPI bus – Up to 6 x I2C bus – Up to 1 x PCM/I2S – Up to 2 x SPDIF – Up to 7 x PWM – Up to 1 x CAN – Up to 1 x ADC – Up to 27 x GPIO – 2 x 5V DC power in/out – 2 x 3.3V power out
LAN	1GbE LAN with PoE support *An additional HAT is required for powering via PoE
WiFi	WiFi 6 and BT 5.4 with External Antenna Connector
Software	・ ArmV8 Instruction Set ・ Debian/Ubuntu Linux support ・ Android 12 support ・ Hardware access/control library for Linux/Android
Others	Power adapter with fixed voltage of 5V on the USB Type‑C port requested ROCK 5C has been designed to operate between 0°C to 50°C
Size	86mm x 56mm
