Model
|

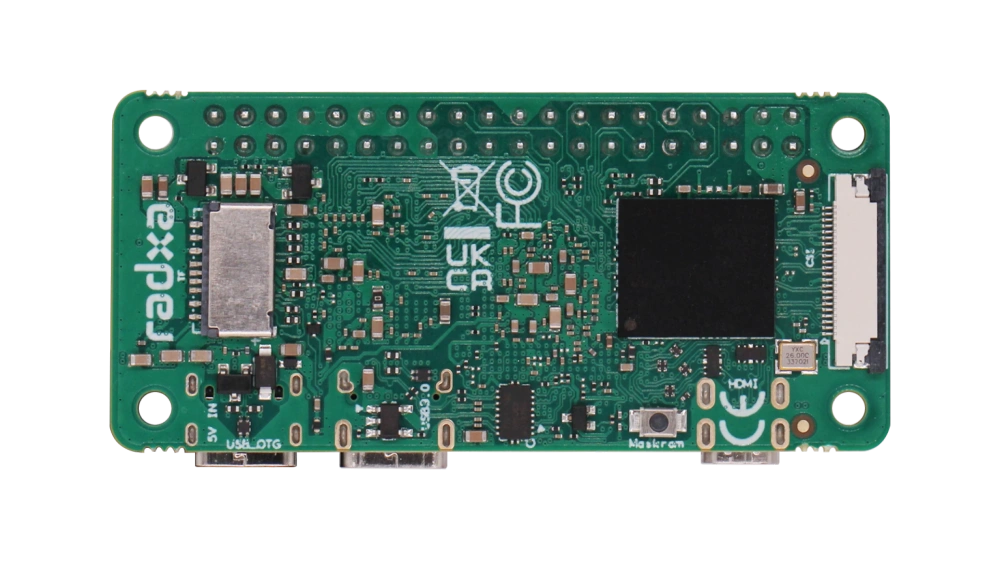

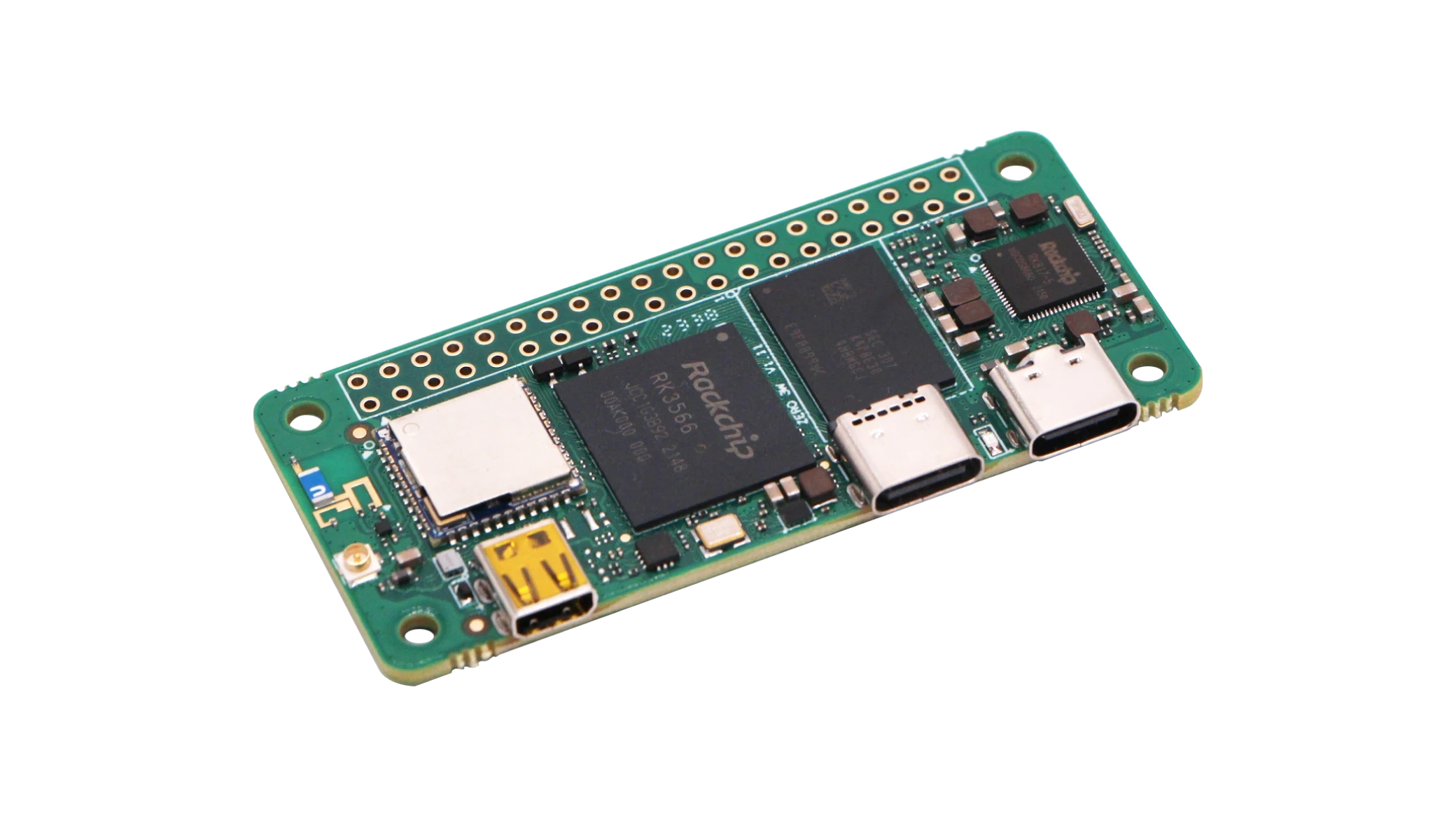

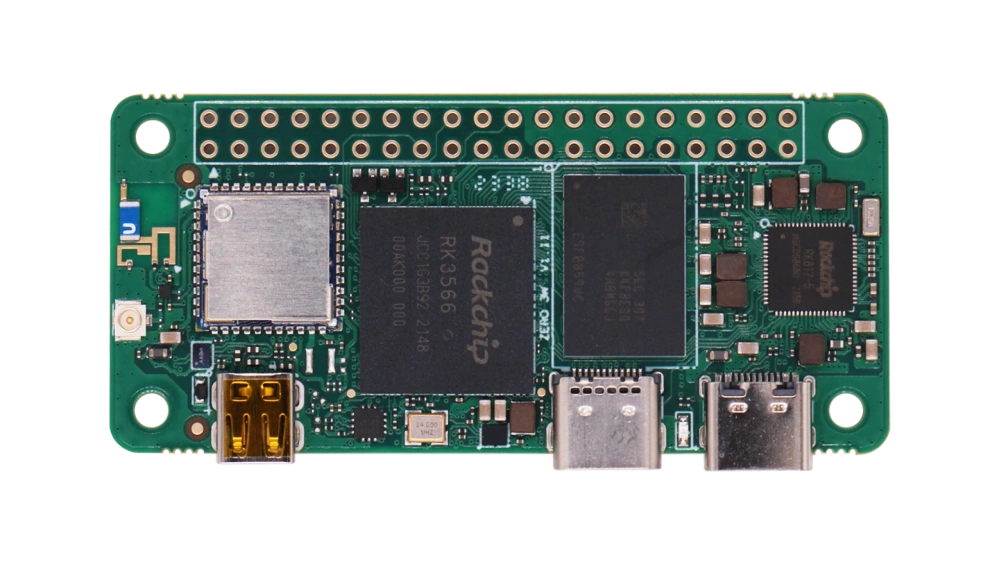

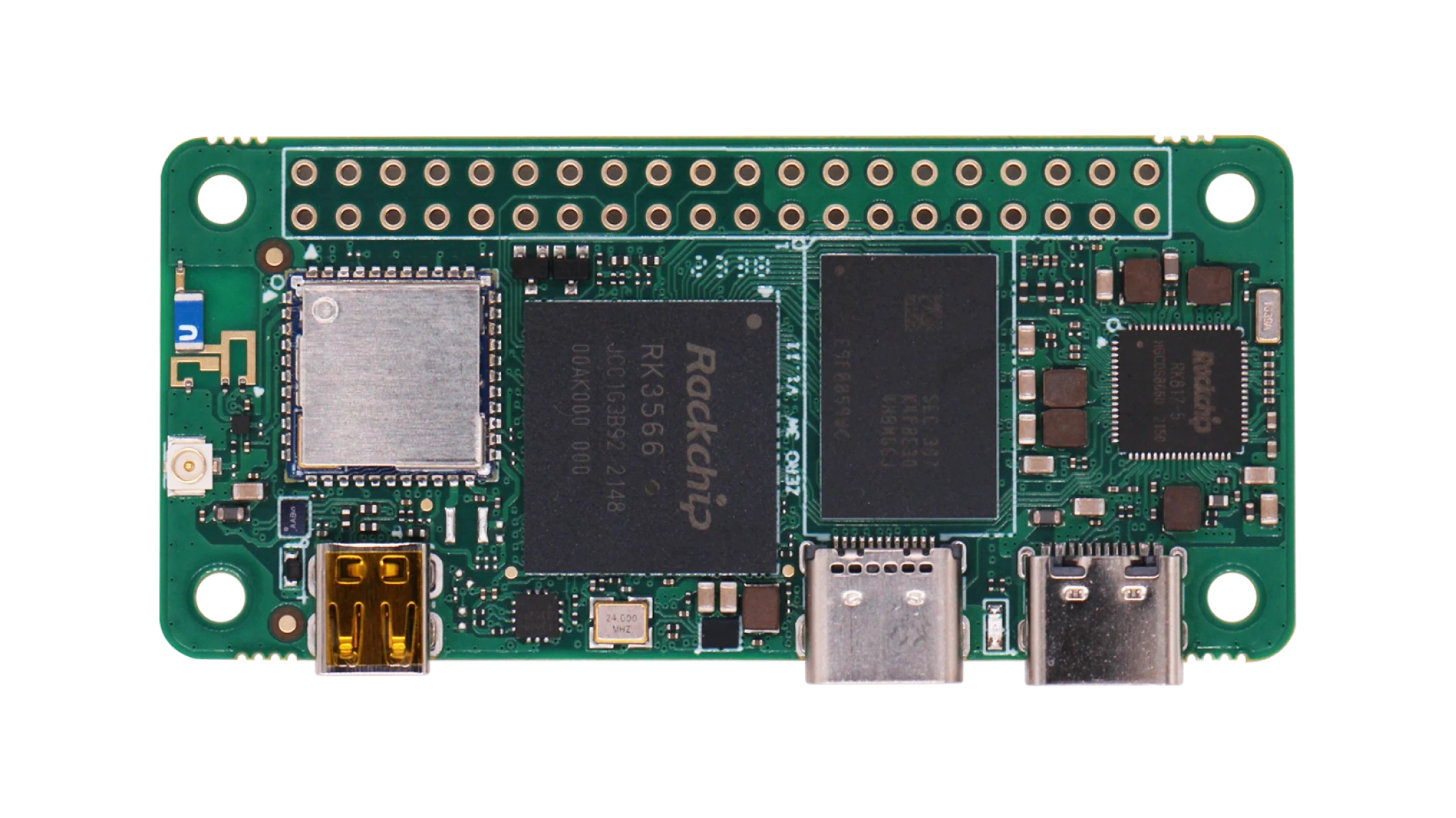

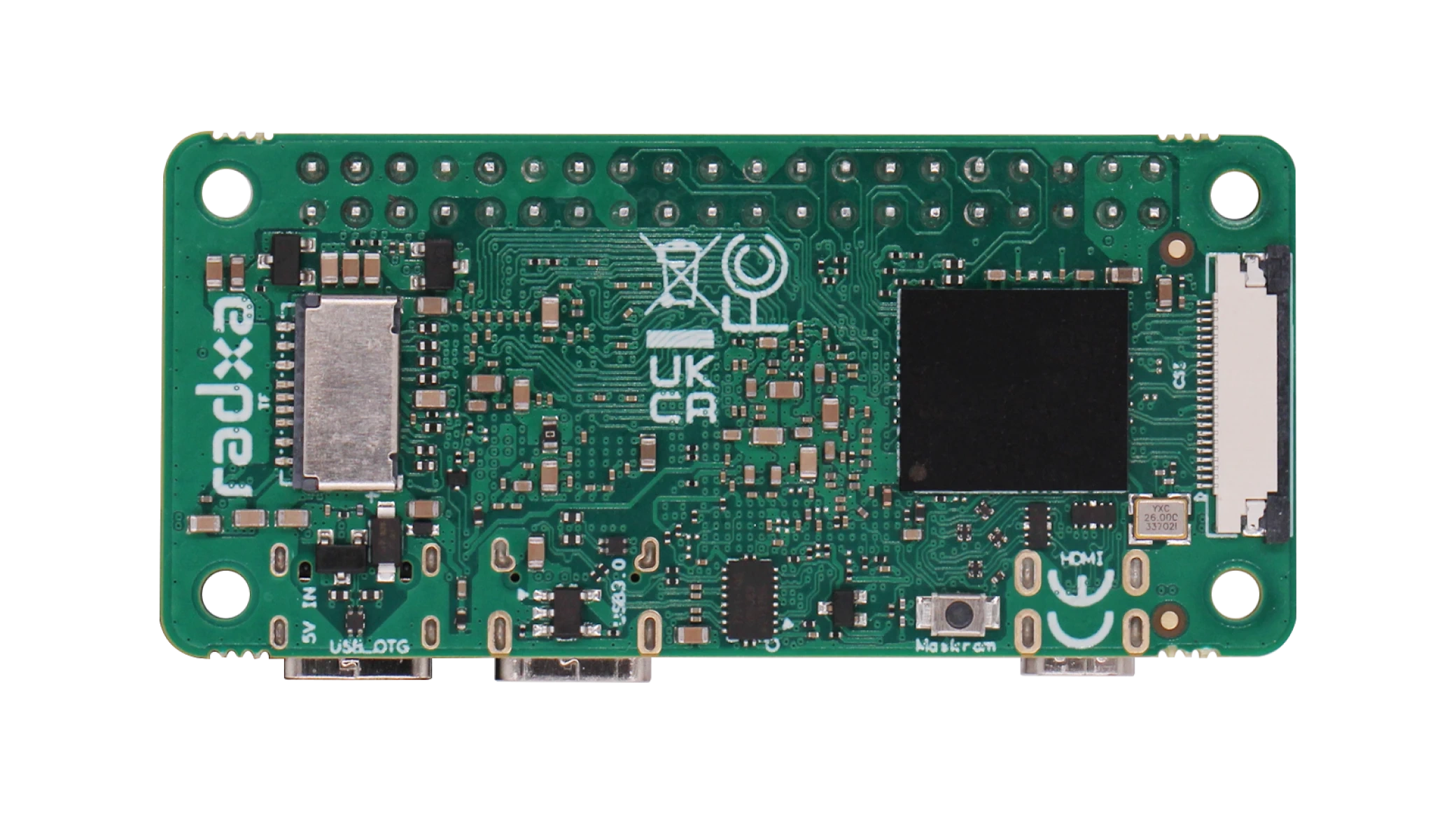

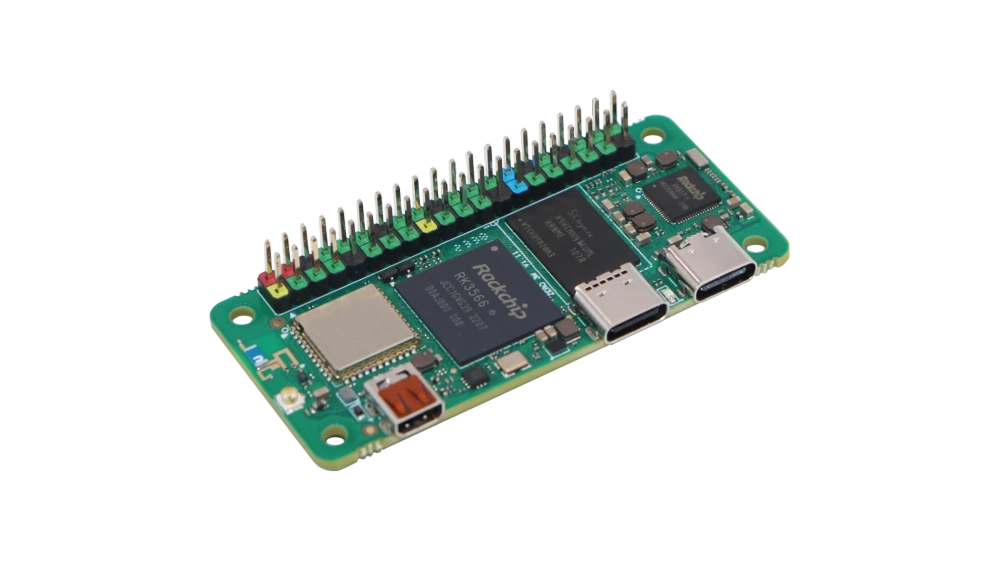

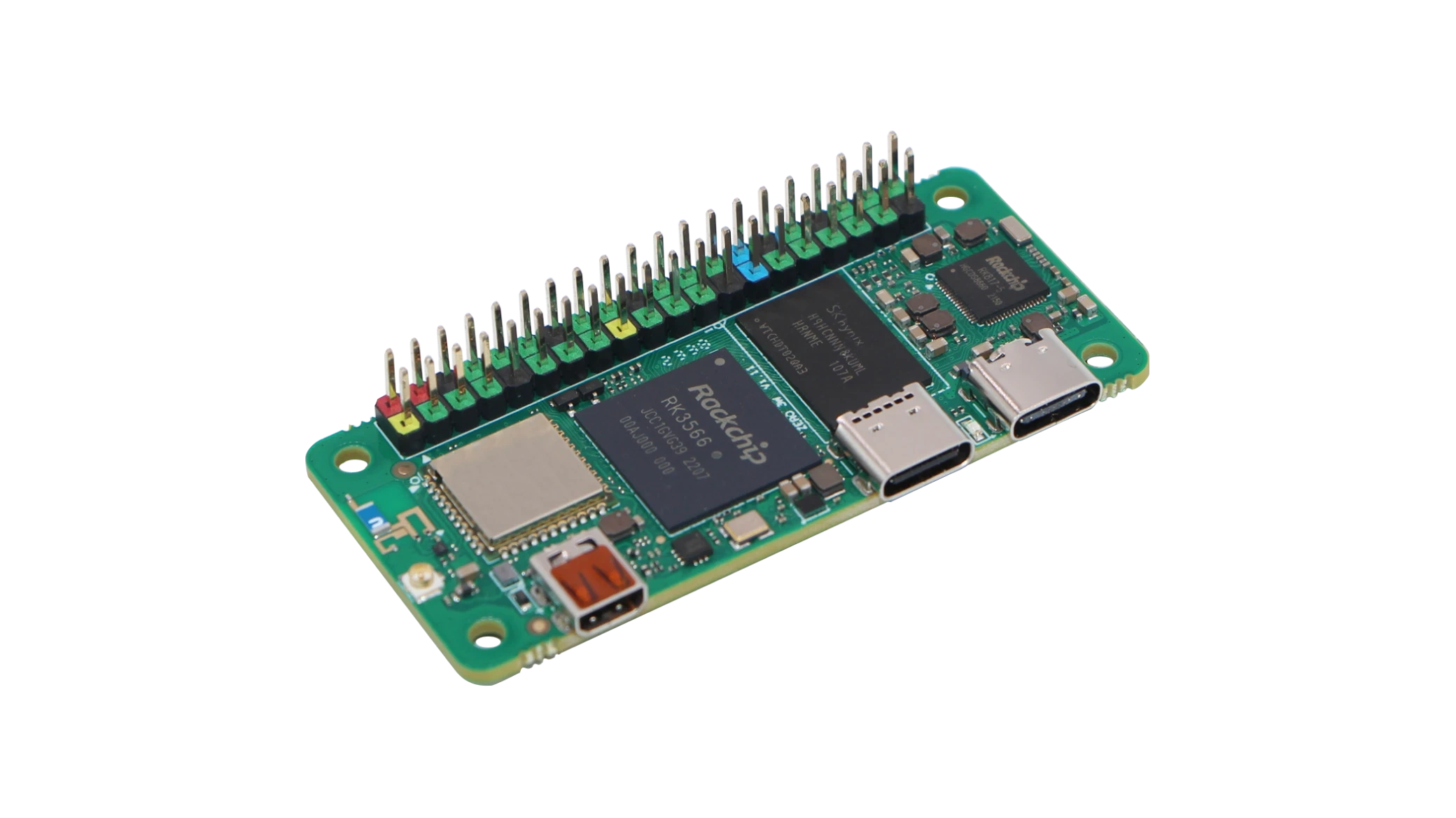

Radxa ZERO 3W RK3566
|
|
SoC
|
RK3566
|
|
CPU
|
Quad‑core A-R-M Cortex®‑A55 @ 1.6GHz
|
|
GPU
|
ARM Mali‑G52‑2EE
|
|
VPU
|
4Kp60 H.265/H.264/VP9 video decoding, 1080p100f H.265/H.264 video encoding
|
|
Multimedia
|
H.264, H.265, and VP9 decoder by 4K@60fps
H.264 and H.265 encoder by 1080@60fps |
|
ISP
|
8M ISP
|
|
RAM
|
LPDDR4
|
|
Storage
(eMMC, UFS, microSD) |
onboard eMMC
microSD Card Slot |
|
Video Output
|
1x Micro H-D-M-I Up to 1080P60fps
|
|
Video Input
|
1x 4-lane MIPI CSI for Camera
|
|
USB
|
1x USB 2.0 OTG / HOST Port
1x USB 3.0 HOST Port |
|

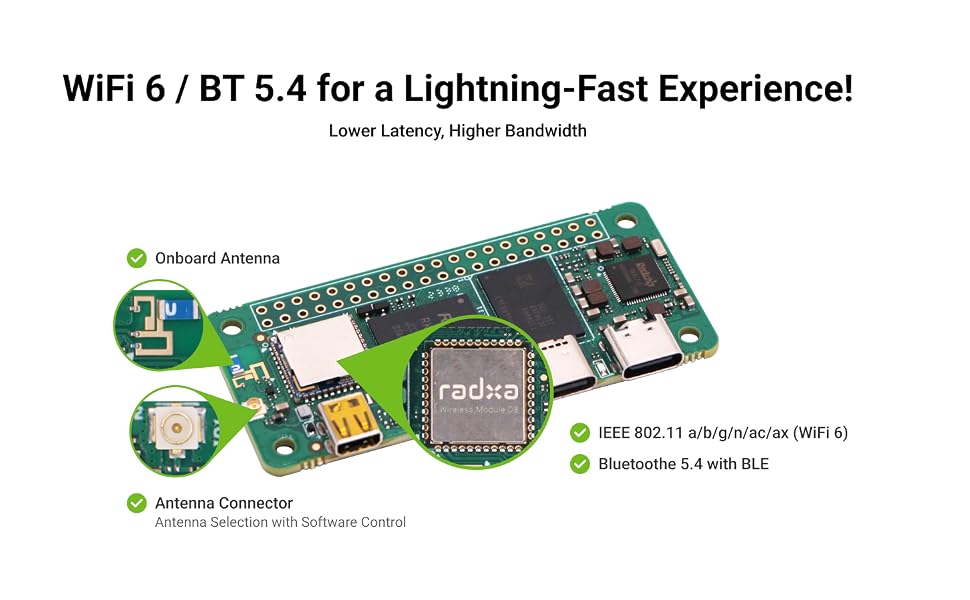

Wireless
|
WiFi 6 & BT 5.4
|
|
Antenna
|
Enable External or Onboard Antenna via Software Control
|
|
Button
|
1x Maskrom Button
|
|
40-Pin GPIO Header
|
Yes
|
|
Power Supply
|
5V/2A (recommended) via USB-C OTG port
|
|
Misc
|
MaskROM button
|
|
Form Factor
|
65 mm × 30 mm
|
|
Single Package Size
|
18*11*10 cm
|
|
Single Gross Weight
|
0.3 kg
|
|
Compliance Certification
|
CE / FCC
|
