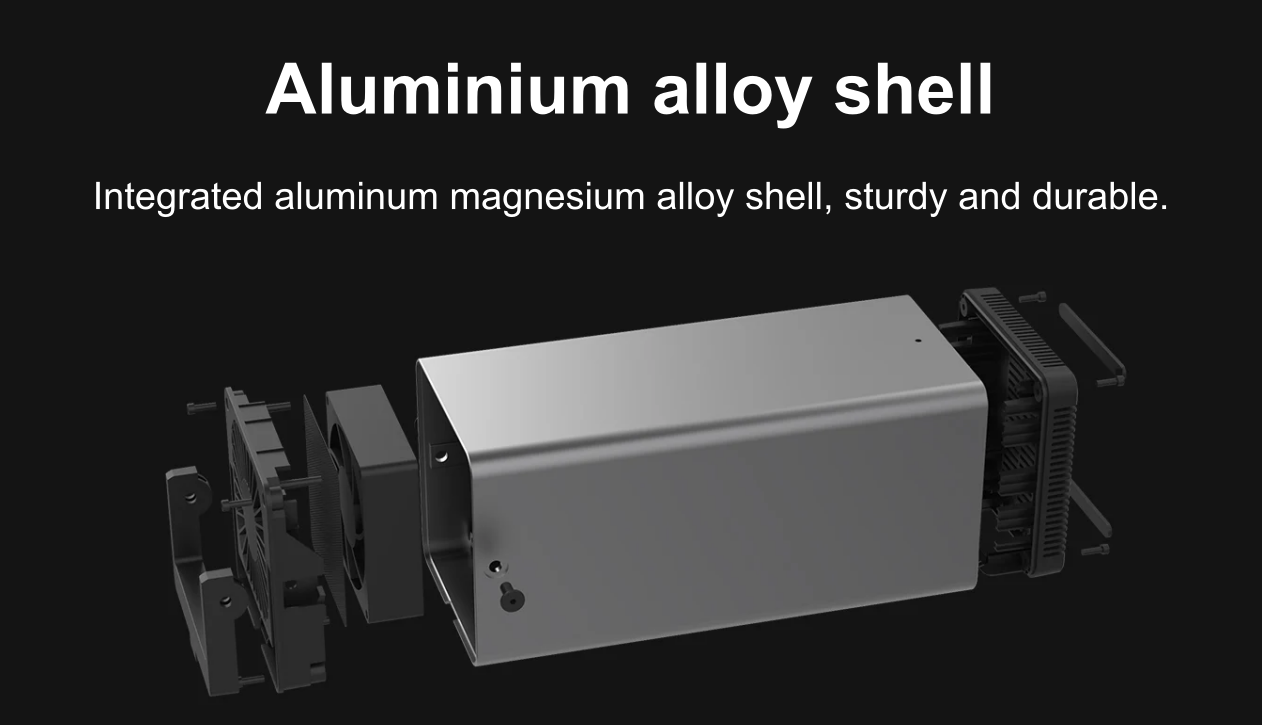

✔✔【High Power, Small Size】: The power supply adopts a one-piece aluminum-magnesium alloy shell, durable, output power up to 1800W, and it's weighing only 3.2KG, the size (L×W×H)115×110×257mm is easy to carry, very suitable for camping, picnic, adventure and other outdoor scene applications.

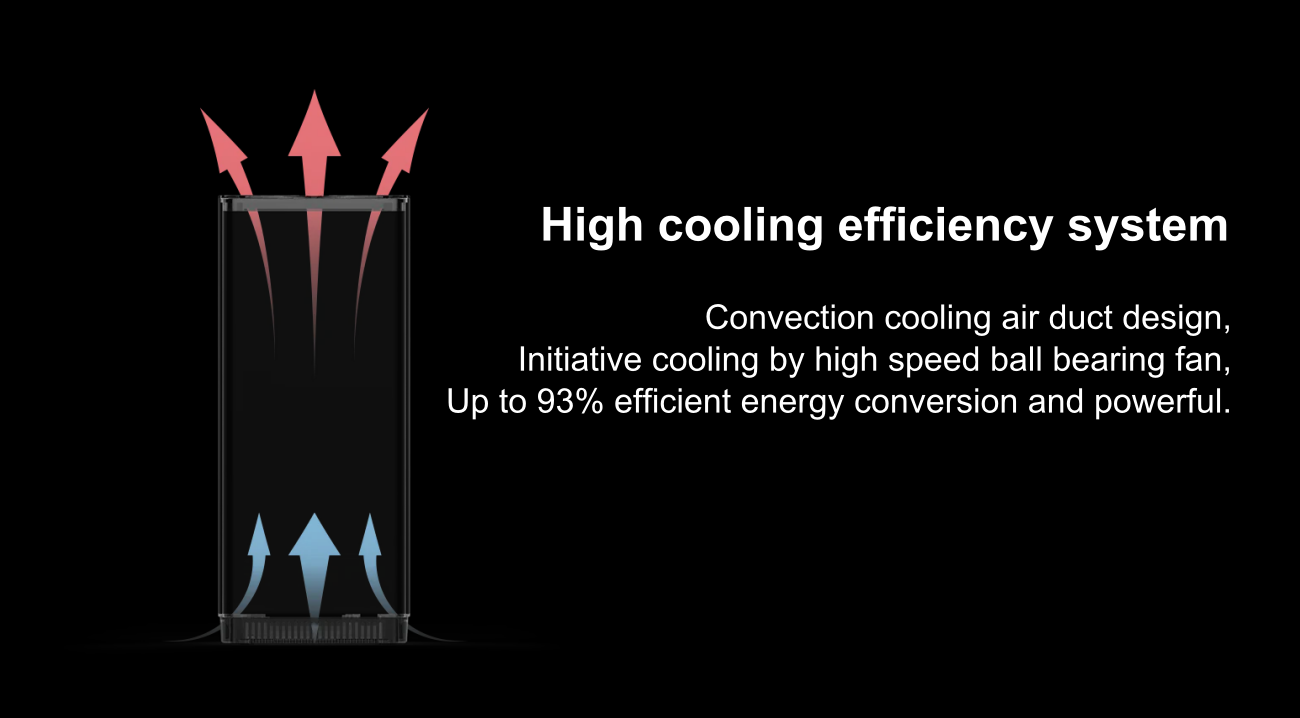

✔✔【High-efficiency cooling system】 Convective cooling air duct design, high-speed dual ball bearing fans actively dissipate heat, the power supply is always calm and maintains peak working condition.
✔✔【High Efficient】:With the latest technology, the conversion efficiency of this transformer is higher than 93.2% @220VAC @65A, which could meet your requirement in various situations.
✔✔【AFTER SALE SERVICE】:We guarantee a good after-sales service. If there is anything wrong with the product, please feel free to contact us. We will try our best to help you.
|
GENERAL
|
|
Size:
|

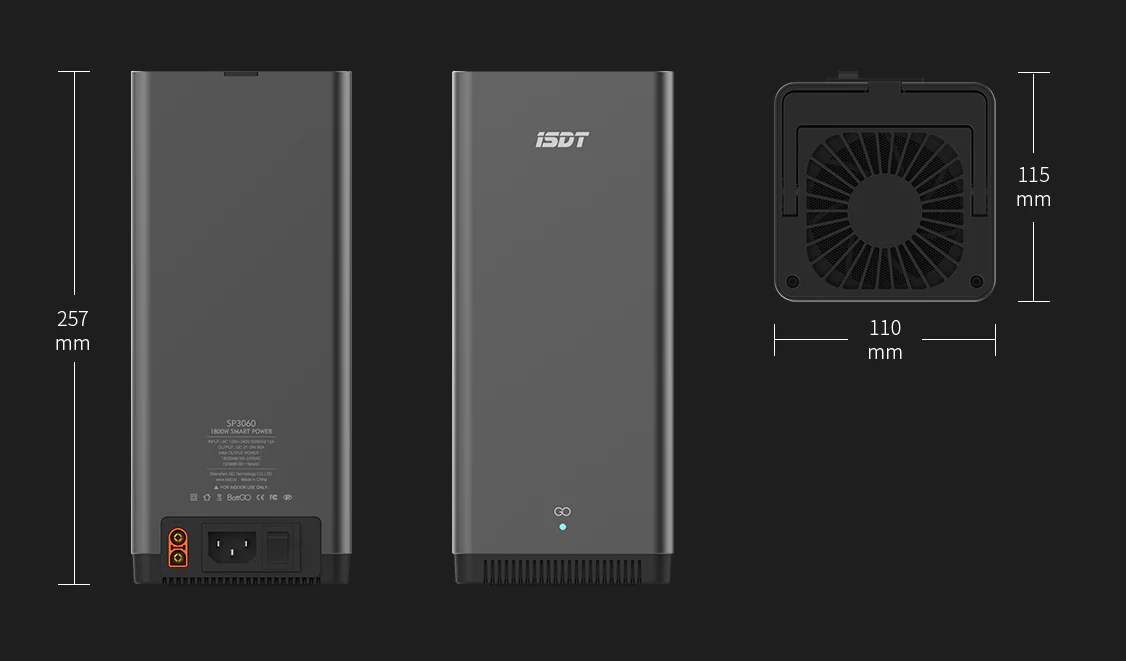

(L×W×H)115×110×257mm
|
|
Weight:
|
3.2Kg
|
|
CHARGER
|
|
Input voltage range:
|
AC 100~240V 50/60Hz
|
|
Max input current:
|
12A
|
|
Output voltage range:
|
DC 21~29V
|
|
Rated output current:
|
60A
|
|
Peak output current:
|
65A
|
|
Output power:
|
1800W @150V~240VAC
720W @100V~150VAC
|
|
Efficiency:
|
≥93.2% @220VAC @65A
|
|
Power factor:
|
≥0.99 @ 220VAC @50A
|
|
Start delay:
|
3~10mins
|
|
Output connector:
|
IC5（compatible with EC5）
|
|
Working temperature:
|
-10℃~+45℃
|
|
Working humidity:
|
5%~95% relative humidity（no condensation）
|
