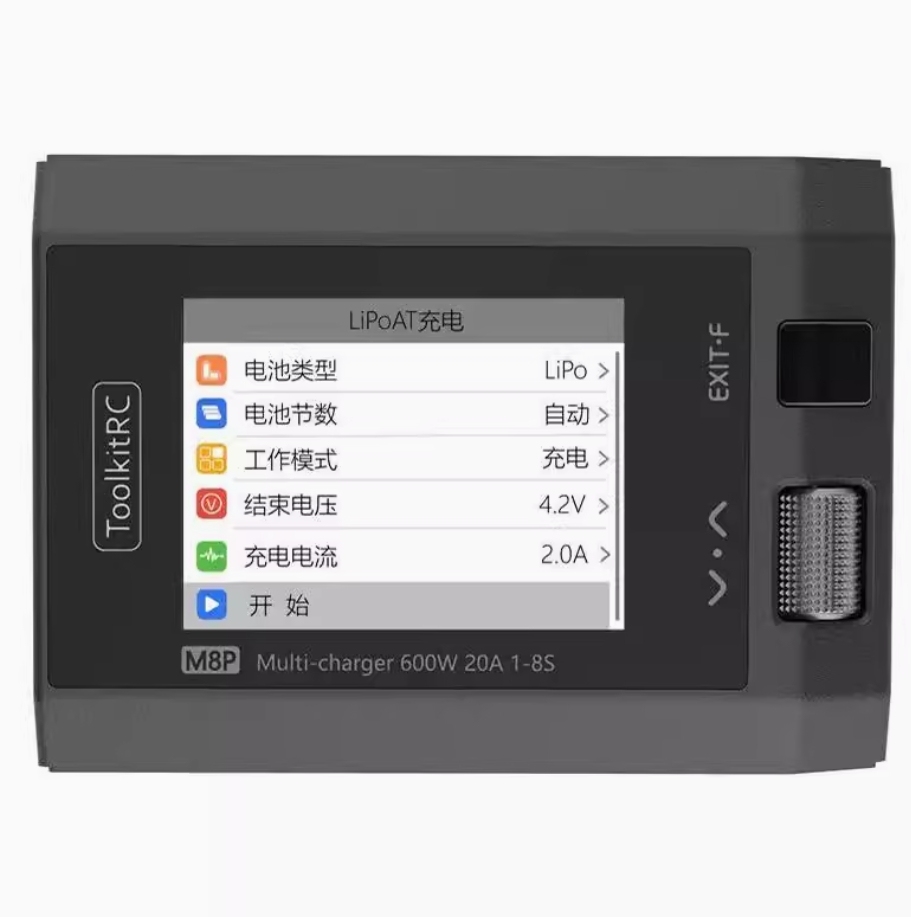

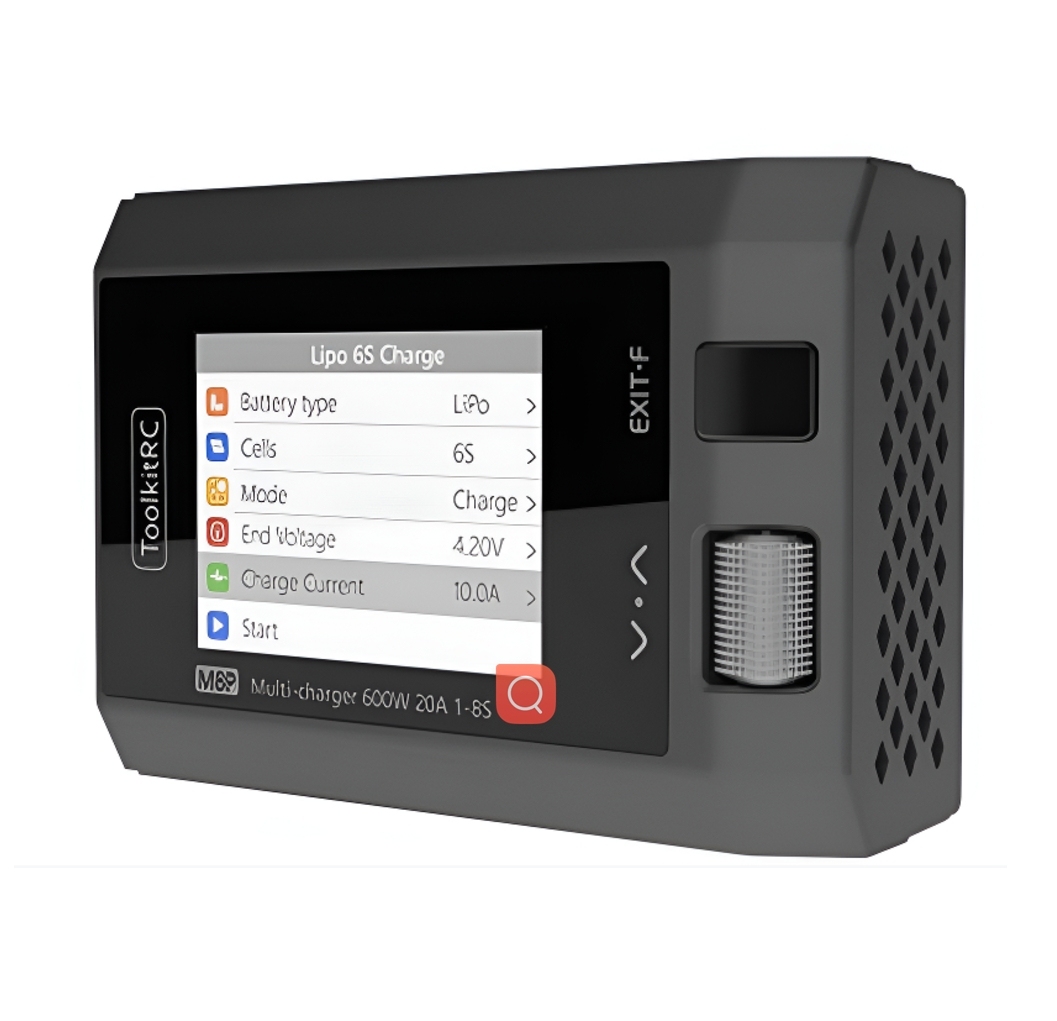

1. M8P charger can charge, discharge and balance LiPo, LiHV, LiFe, Lion, LTO 1-8S, NiMh 1-20SPB 1-10S batteries
2. Chargingcurrent: maximum 20A @MAX600W
3. Discharge current: Recovery/external mode maximum 20A @600W Normal mode maximum 3A @20W
4. Lithium battery cut-off voltage can be set (TVC function)
5. Can measure battery voltage, battery internal resistance, lithium battery balance management.
6. Can measure/output PWM/PPM/SBUS signal value, accuracy 1 microsecond
7. Constant current and constant voltage source output, can output 1-35V constant voltage, 0.5-20A constant current
8. Can adapt to mainstream drone batteries, automatically activate and charge.
9. Multi-language system, 10 languages are optional.
10. The device simulates a USB flash drive, and the upgrade file is copied to achieve product firmware upgrade.
|

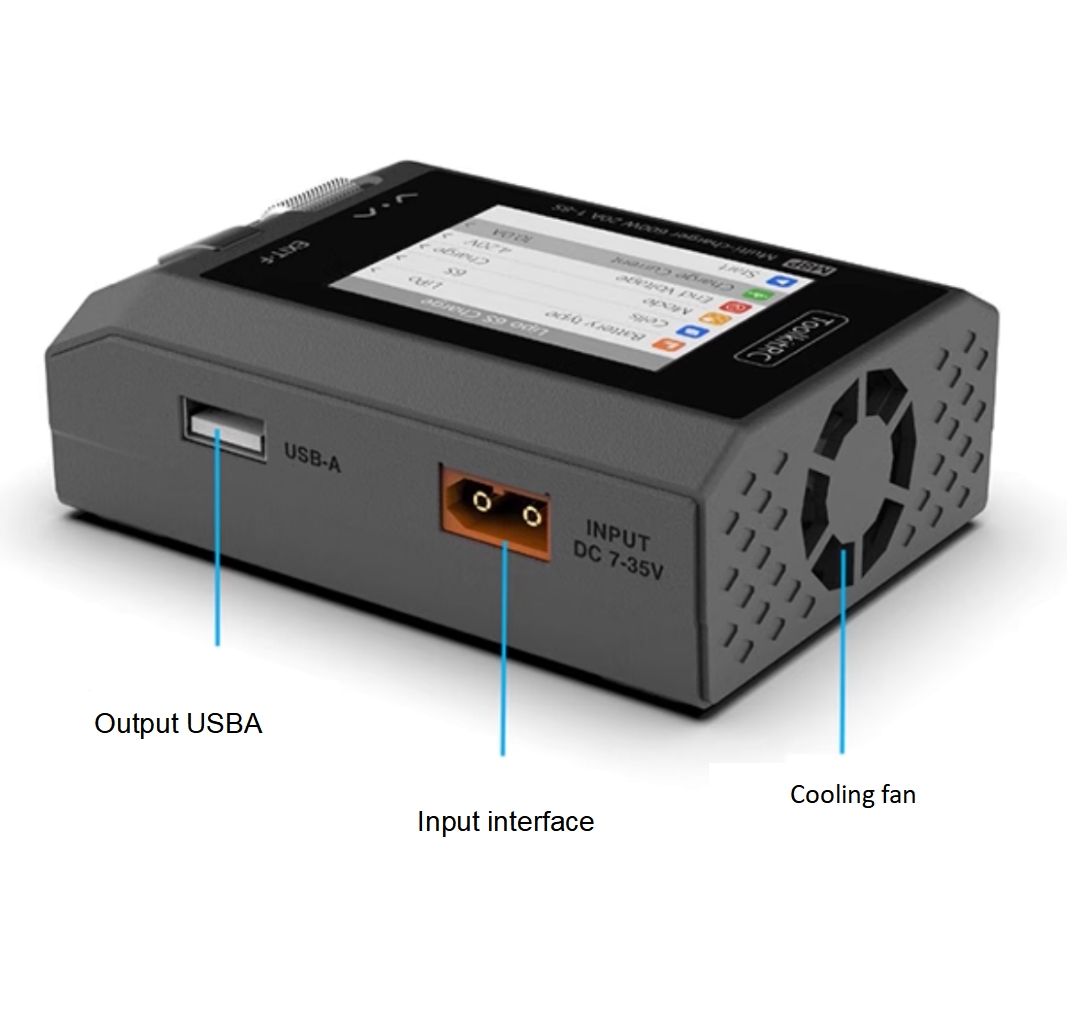

Input voltage
|
7.0-35.0V
|
|
Charging current
|
Max. 20A @600
|
|
|
Recycling mode: Max. 20A@600W
|
|
Normal mode: Max. 5A@20W
|
|
Balance current
|
1000mA@2-8S
|
|
Voltage range
|
0.5V-5.0V @8S
|
|
Power mode
|
1-20A@1-30V Mode:CC+Cv
|
|

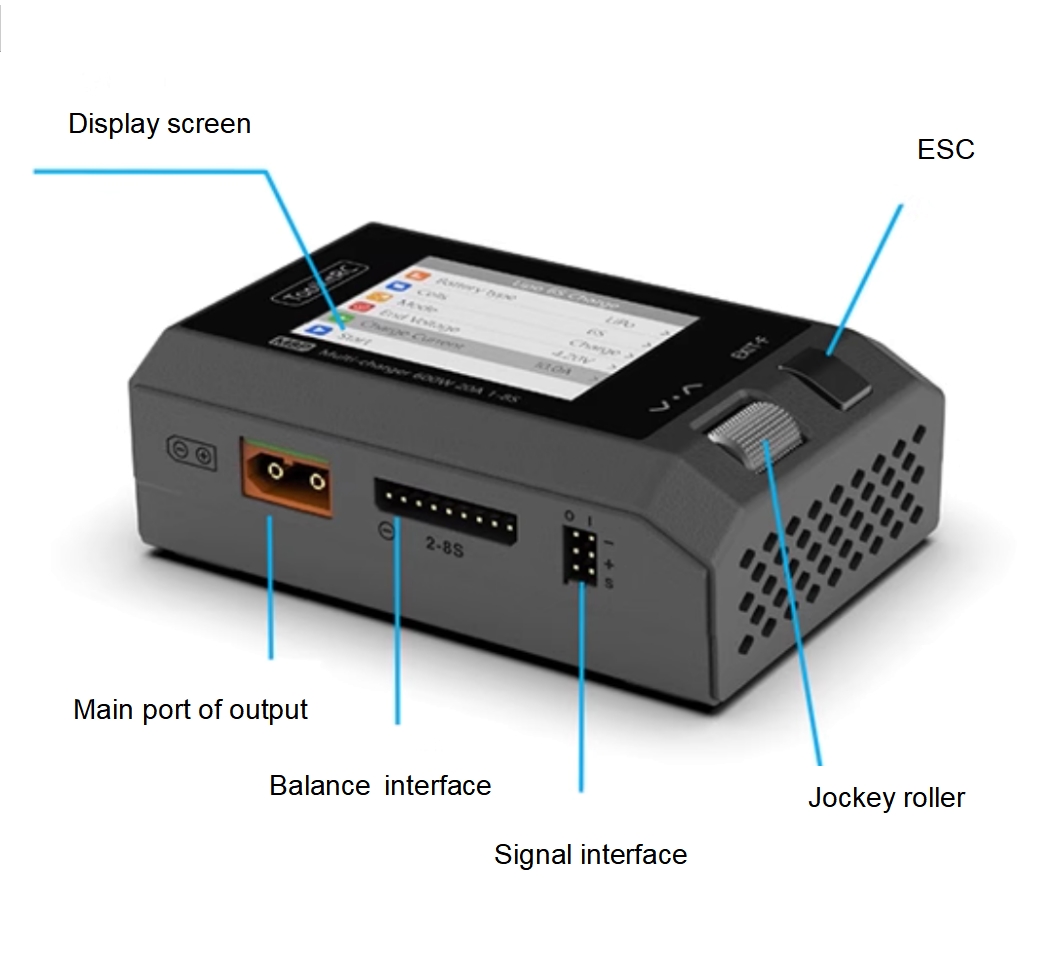

ESC
|
0.1A-18A @MAX 400W
|
|

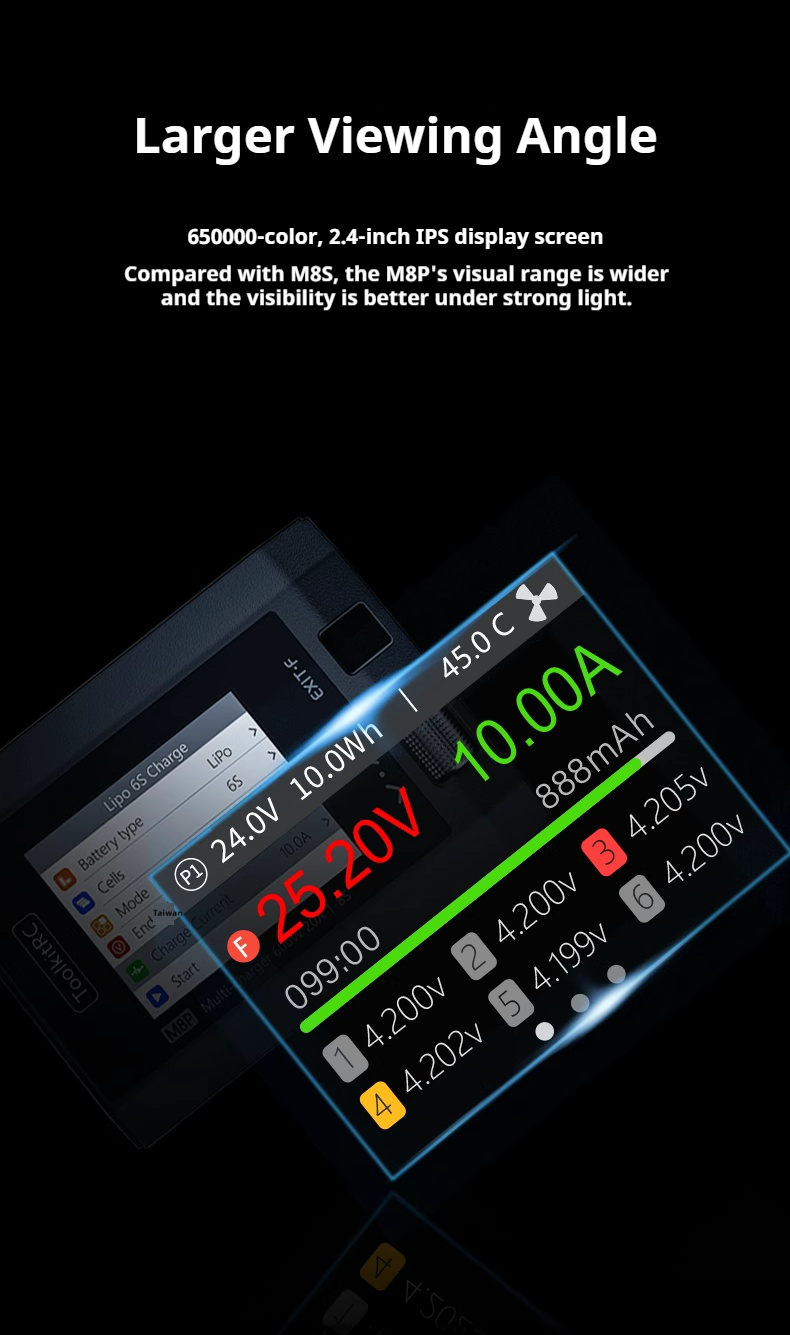

Display screen
|
2.4” IPS full-color LCD, resolution 240*320
|
|
USB
|
2.1A@5V Firmware upgrade@USB3.0
|

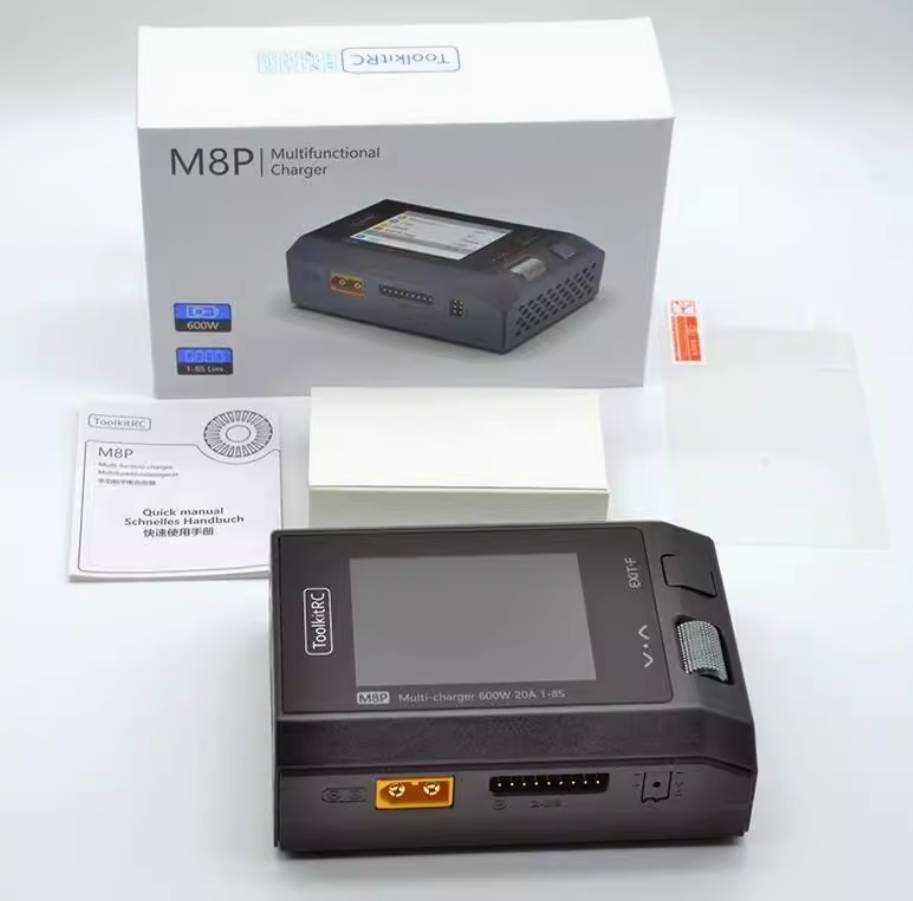

MP8 charger*1

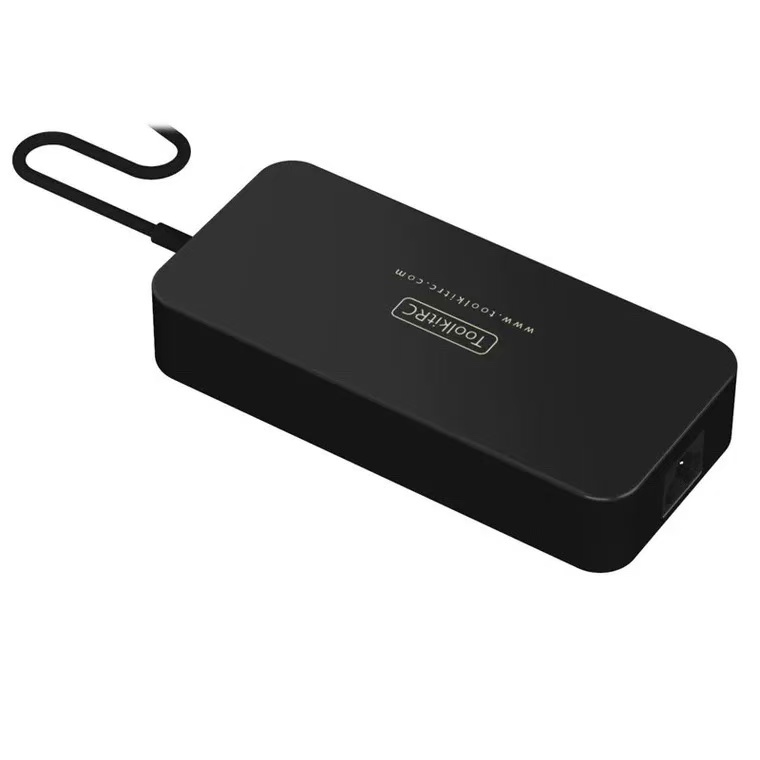

Power cord*1
USB-TYPEC cable*1
Screen protector*1
Instruction manual*1
