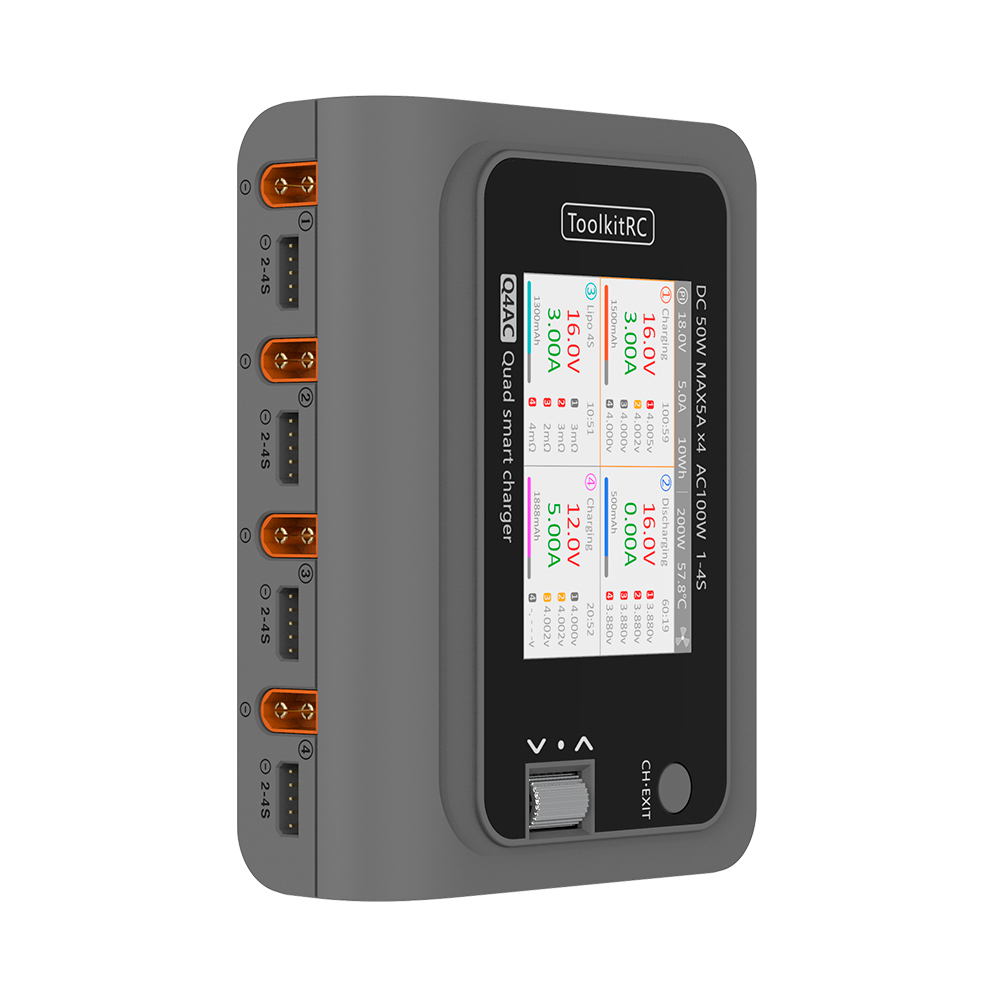

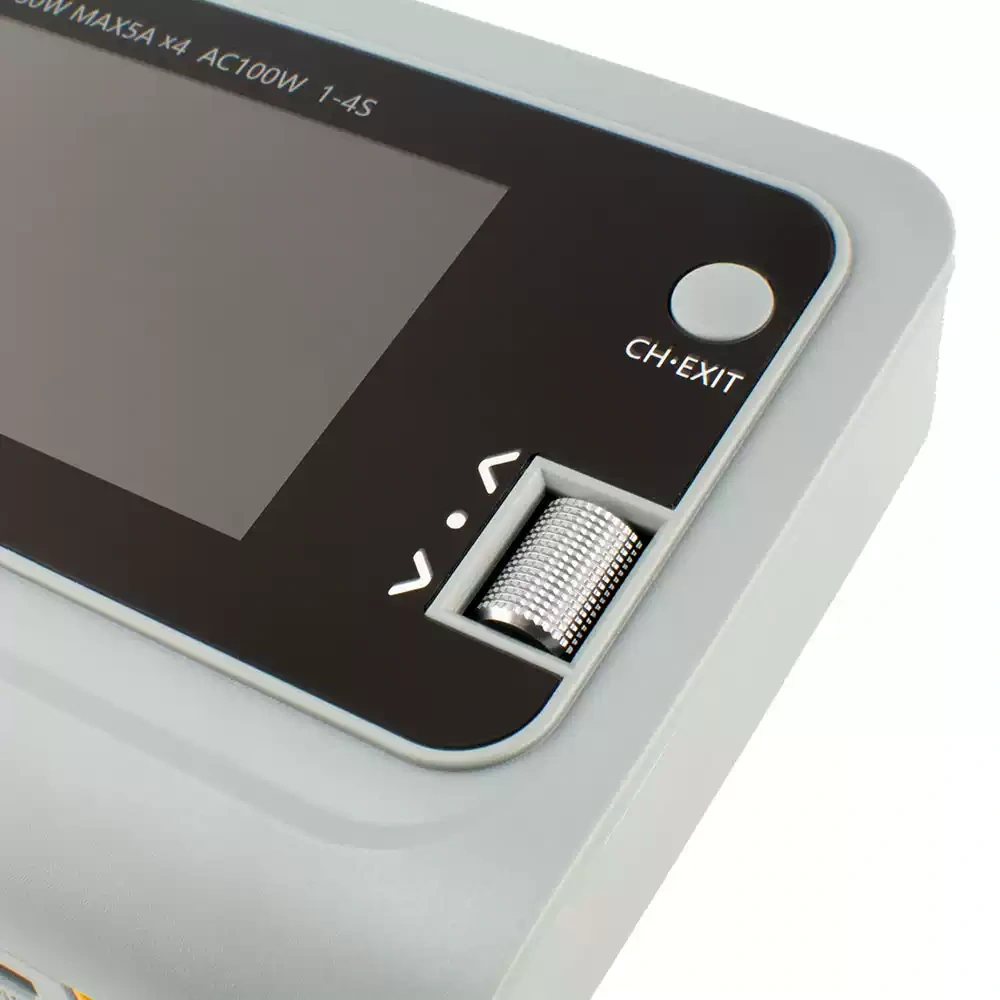

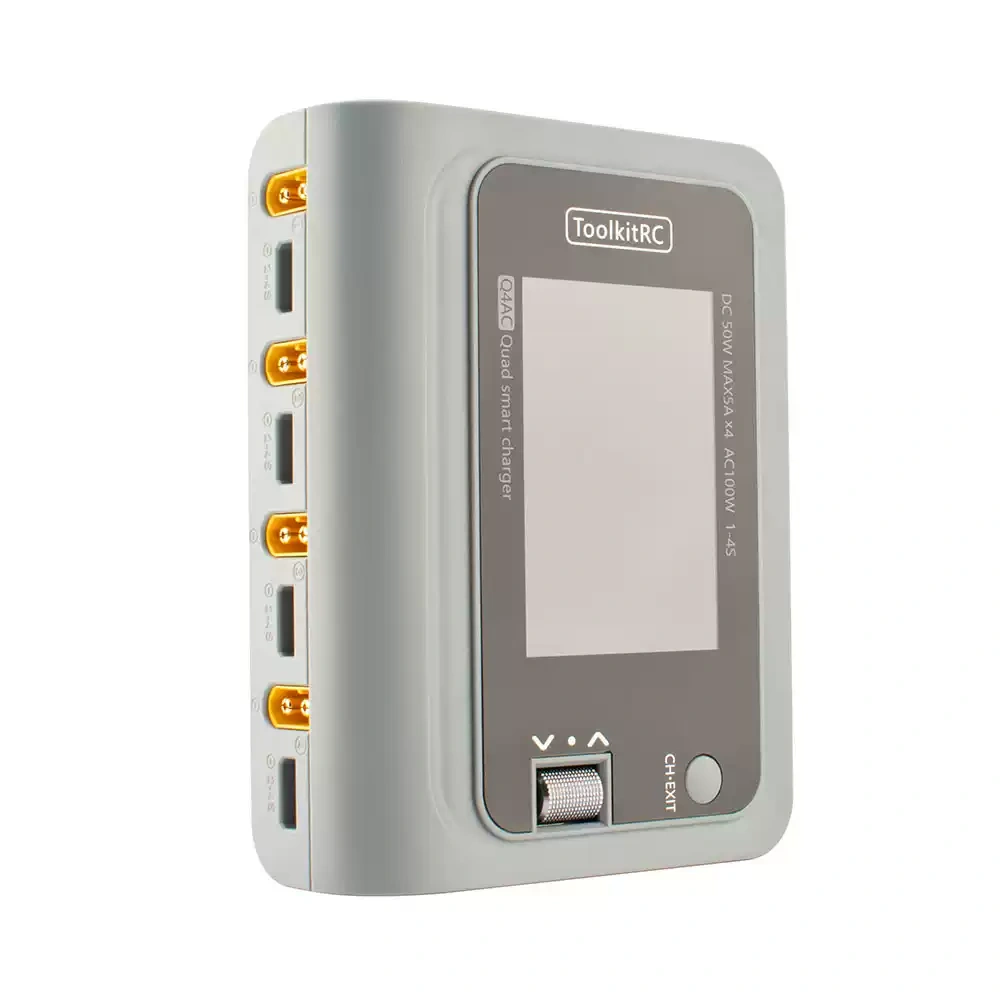

* Q4AC is a four-channel balanced charger product with an IPS highlight display and a scroll wheel encoder for more convenient operation.
* It can charge, discharge, and balance management of LiPo, LiHV, LiFe Lion 1-4S, NiMh 1-10S, PB 1-8S batteries.
* The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade.

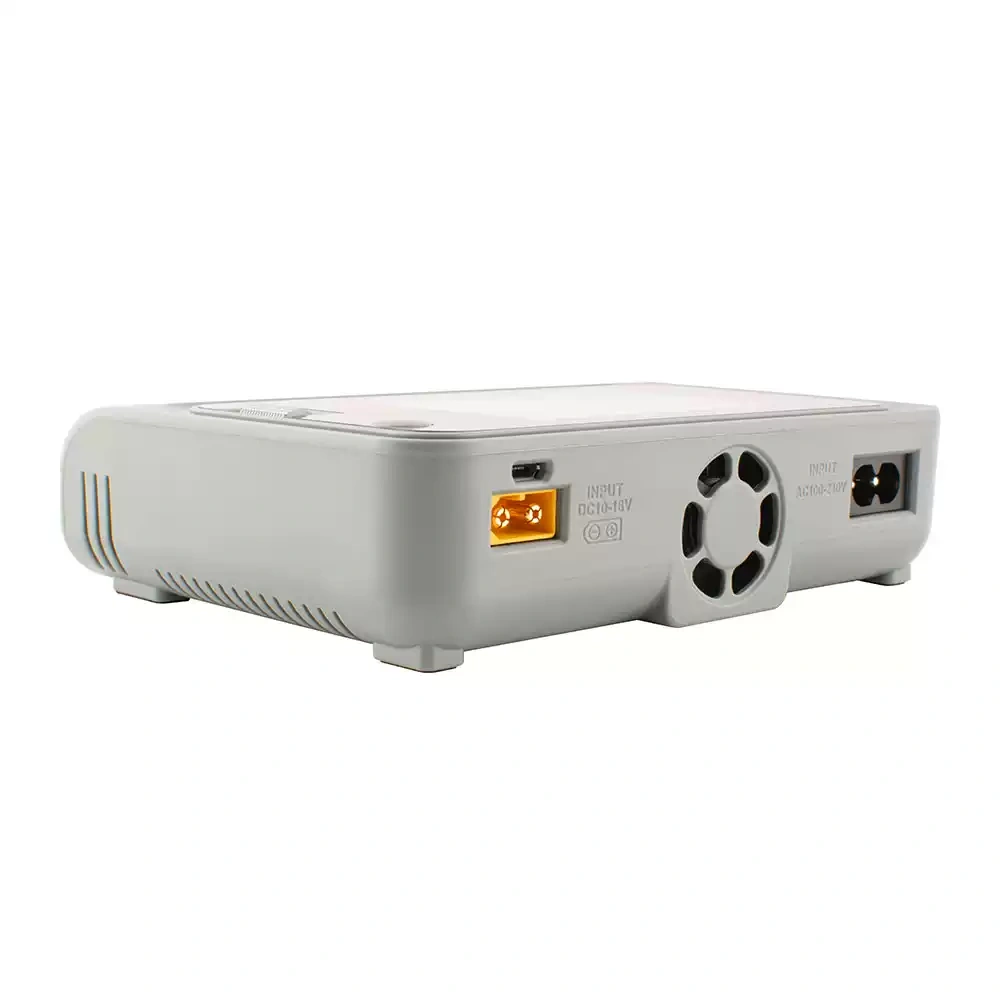

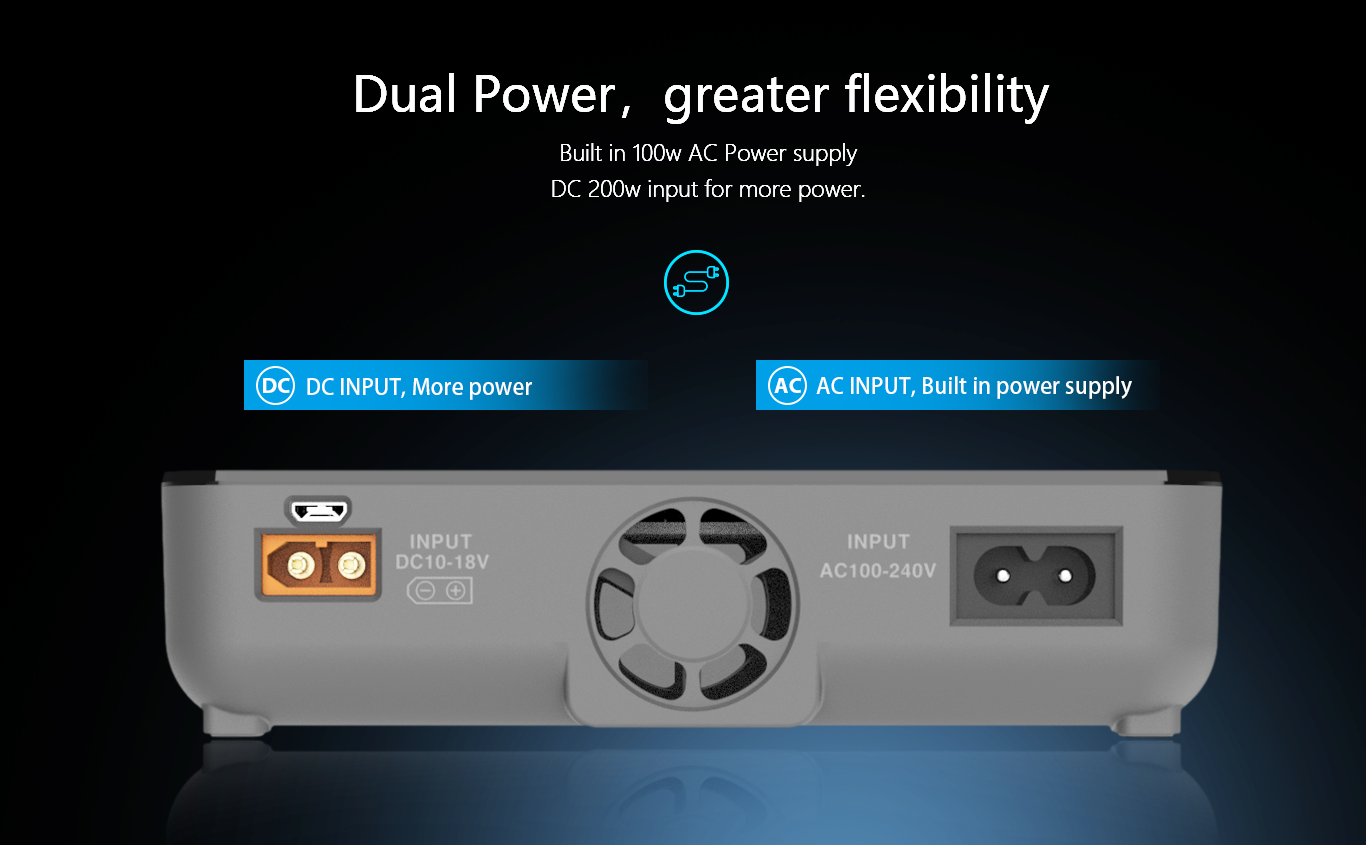

* AC, DC two power supply modes, AC 100-240V maximum 100W, DC 10-18V maximum 200W.
* It can record 3 groups of commonly used power sources, which is convenient for quick selection and translation.
|
GENERAL
|
|
Product size
|
150×112×36.5mm
|
|
Product weight
|
450g
|
|
Packing size
|
160×160×46mm
|
|
Packaging weight
|
600g
|
|
LED
|
IPS 3.5″ 480×320 px
|
|
CHARGER
|
|
Input
|
AC100-240V@MAX1.5A
DC10-18V@MAX20A
|
|
Output
|
|
|
Battery type
|
LiPo LiHV LiFe Lilon@1-4S
NiMH @1-10S Pb @1-8S
|
|
Balance current
|
240mA @2-4S
|
|
Balance accuracy
|
<0.005V
|
|
|
0.1-5A@50W×4 DC IN
0.1-5A@50W×2 AC IN
0.1-5A@25W×4 AC IN
|
|
Discharging power
|
0.1-2A@5W×4
|
|
Voltage range
|
0.2V-5.0V @1-4S
|
|
Internal resistance
|
1-100mR @1-4S
|
|
USB
|
Upgrade@USB2.0
|
IN THE BOX

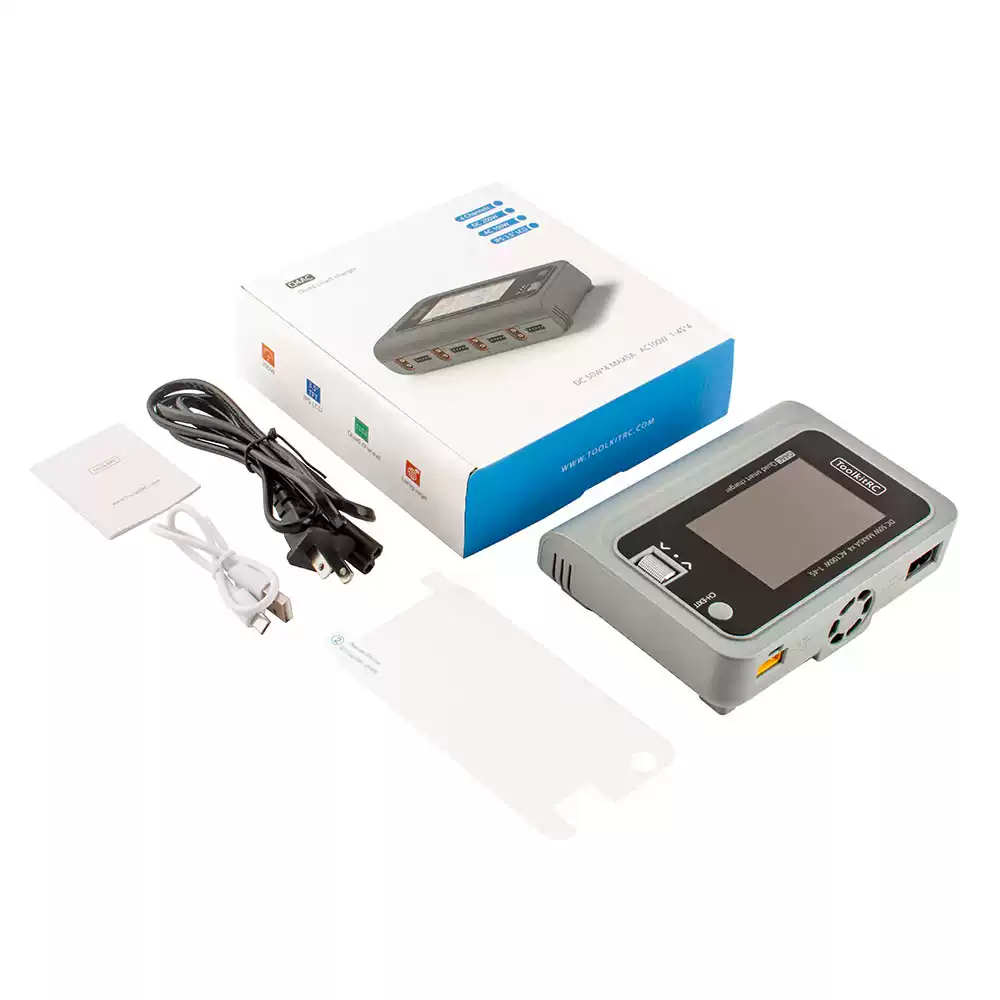

Q4AC Charger × 1, AC Input Cable × 1, USB Cable × 1, Quick Manual × 1, Screen Protector × 1
